Cloth clip 22.3.3 for up to 3 mm wire + screen profile

Use these cloth clips to attach your shade cloth quickly and easily to screen profiles and wires. The clips are made of plastic and therefore they are very gentle for fabrics. However these clips are useful not only in the greenhouse: they are suitable to fix other materials to wires as well as to thin metal plates .Material: Plastic

Lead edge tube clip

This lead edge tube clip connects support wire with 19 mm aluminium tubes in shading systems.

Tube Clip 19 mm

The tube clip is a gentle fixation for your fabrics to 19 mm steel and aluminum tubes. The clips are made of plastic which won't damage the clamped fabric in contrast to metal. Material: plastic

Tube clip 17 mm

The tube clip works as a gentle fixation for your fabrics to 17 and 19 mm steel and aluminium tubes. The clip is made of plastic, which won't damage the clamped fabric in contrast to the metal one. Material: plastic

Sealing bracket for 2 mm inox wire

The sealing bracket seals the screen paths in suspended and lay-flat shading systems. This piece is made of plastic, that preserves the shade cloth. The bracket gets installed at the support wire to collect the following screen wih the help of the cord. Material: plastic

Wire guide u fits screenprofile

The wire guide protects the poly wire in lay-flat energy screens from friction, caused by the screen profile. In suspended systems it works as a connection between support wire and screen profile. The wire guide is installed into the screw channel and can slide sideways within it.Material: plastic

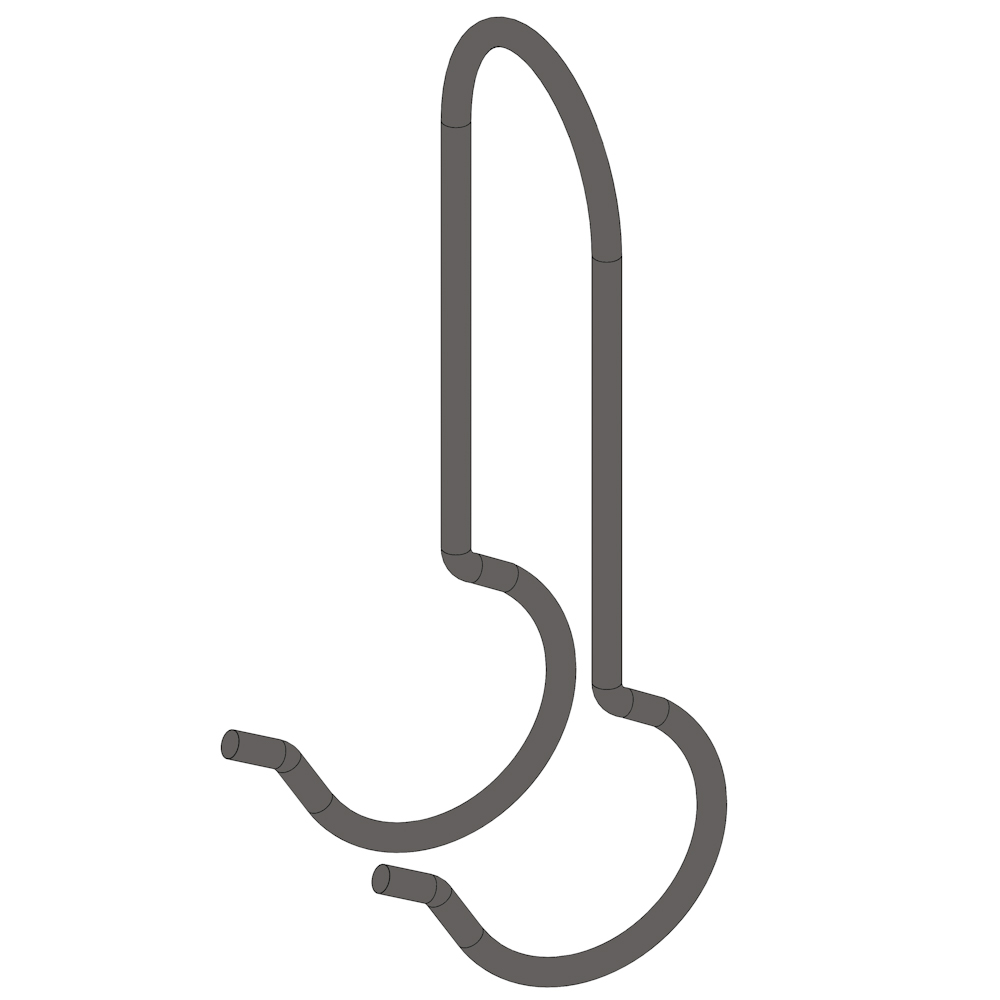

Wire guide clip - for 19 mm tube

Diabolo roll 27.32

The clip profile protects cloth overhangs in shading systems in greenhouses.It is clipped directly onto the tensioned coated cable to prevent screens rubbing against the wire.Material: PVC

Lead edge elbow fits 19

The lead edge elbow fits 19 for 19 mm aluminium tubes, that are used for carrying shading screens. This piece is adjustable for any angle required in your shading system. Premounting can easily be done down on the ground . Precise adjustment has to be finished up at the mounting position. Mounting is realized via a plug-connection, which is fixed through stump bunch marking of the aluminium tube. Compatible with 19 mm aluminium tubes and steel tubes.

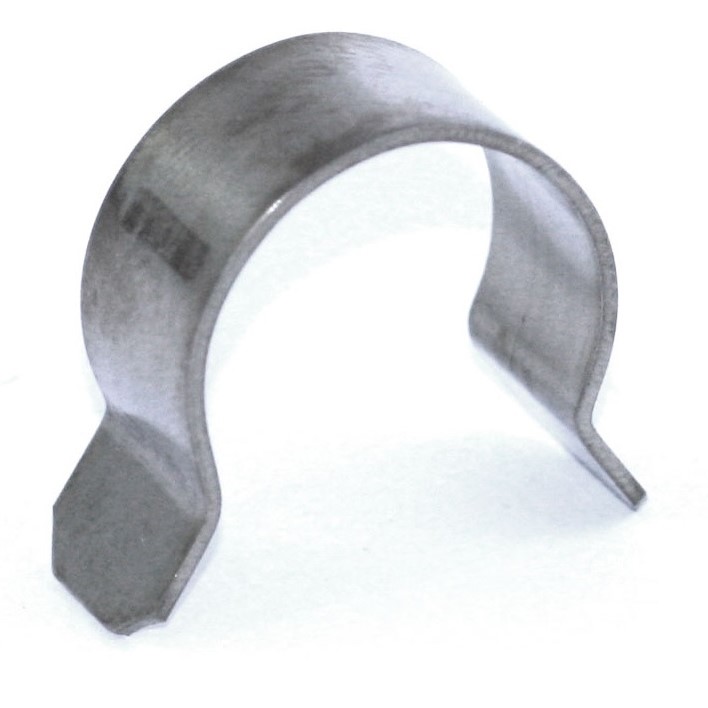

tube clip, stainless

This inox tube clip provides perfect fixation for fabrics to 19 mm, especially if very firm hold is needed.Material: stainless steel

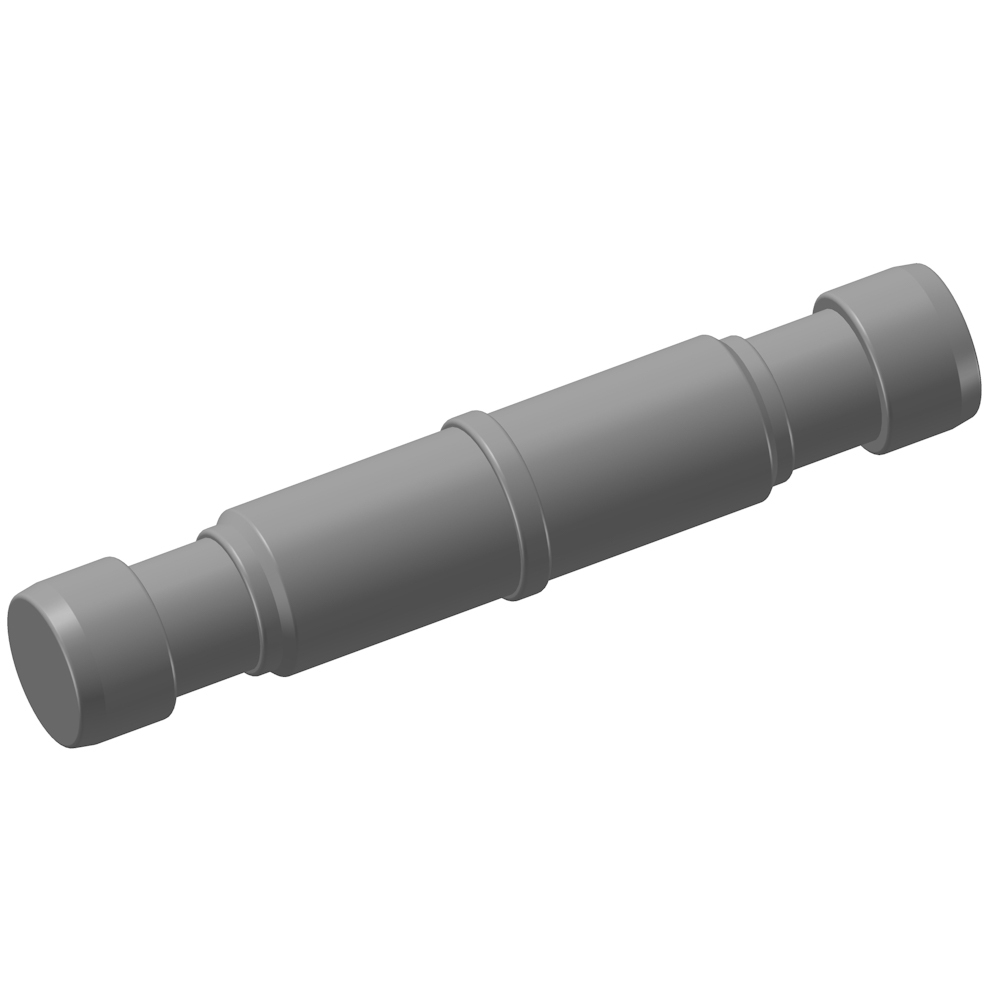

Lead edge connector 19 L

The lead edge connector 19 S is a convenient, static connection for 19 mm aluminium and steel tubes. The piece is so designed that it can be plugged and fixed through stump bunch marking. Compared to a commonly used bolting-connectors this one can be mounted quicker and easier. However the tubes cannot be disconnected from each other.

aluminum tubes 19 mm x 6,40 m

This lightweight aluminium tube is used in suspended and in lay-flat shading systems as a screen guiding tube. Thanks to its very light aluminium construction it is possible to realise light shading systems, which are specially interesting for greenhouses with a wide truss-spacing. In such greenhouses it is a good alternative to the commonly used 19 mm steel tubes. Material: Aluminium

T-bolts INOX M6x15 16/7/2 - PU = 1000 pcs

Application: Universal T-bolt for shading and ventilation system assembly Material: Stainless steel V2A for high corrosion resistance Size: M6 x 15 mm Head Dimensions: 16/7/2 mm Packaging Unit: 1000 pcs Special Feature: Ideal for fastening sliding clamp pieces to screen profiles T-Bolt V2A M6 x 15 (16/7/2) is engineered for attaching sliding clamp elements to screen profiles in greenhouse ventilation and shading applications. Constructed from high-grade stainless steel (V2A), it offers excellent corrosion resistance and long-lasting reliability.

T-bolts M6x75 galvanized - PU = 50 pcs

Application: General-purpose fastening in shading and ventilation assemblies Material: Zinc-plated steel for enhanced corrosion protection Size: M6 x 75 mm Installation: Ideal with M6 nut to secure Table Clamp H 60 to screen profiles Feature: T-bolt head enables quick and secure installation Packaging Unit: 50 pcs T-Bolt M6 x 75 is purpose-built for use in greenhouse shading and ventilation systems. The zinc-plated finish provides excellent resistance to corrosion in tough environments. Its T-shaped head offers a quick-locking fit and is commonly used in combination with an M6 nut to attach the Table Clamp H 60 securely to screen profiles. The 75 mm length delivers extra holding force for heavier-duty applications.

T-bolts M6x40 galvanized - PU = 100 pcs

Application: Mounting clamp pieces to screen profiles in shading and ventilation systems Material: Zinc-plated steel for high corrosion resistance Thread: M6 x 40 mm Installation: Easy fastening with M6 nut Packaging Unit: 100 pcs T-Bolt M6 x 40 zinc-plated is a universal fastener designed to secure clamp pieces to screen profiles in greenhouse shading and ventilation systems. Made from corrosion-resistant zinc-plated steel, it ensures reliable long-term use in demanding environments. With an M6 thread and 40 mm shaft, this T-bolt pairs easily with a standard M6 nut, creating a strong and dependable connection. Supplied in units of 100, suitable for both compact and large-scale projects.

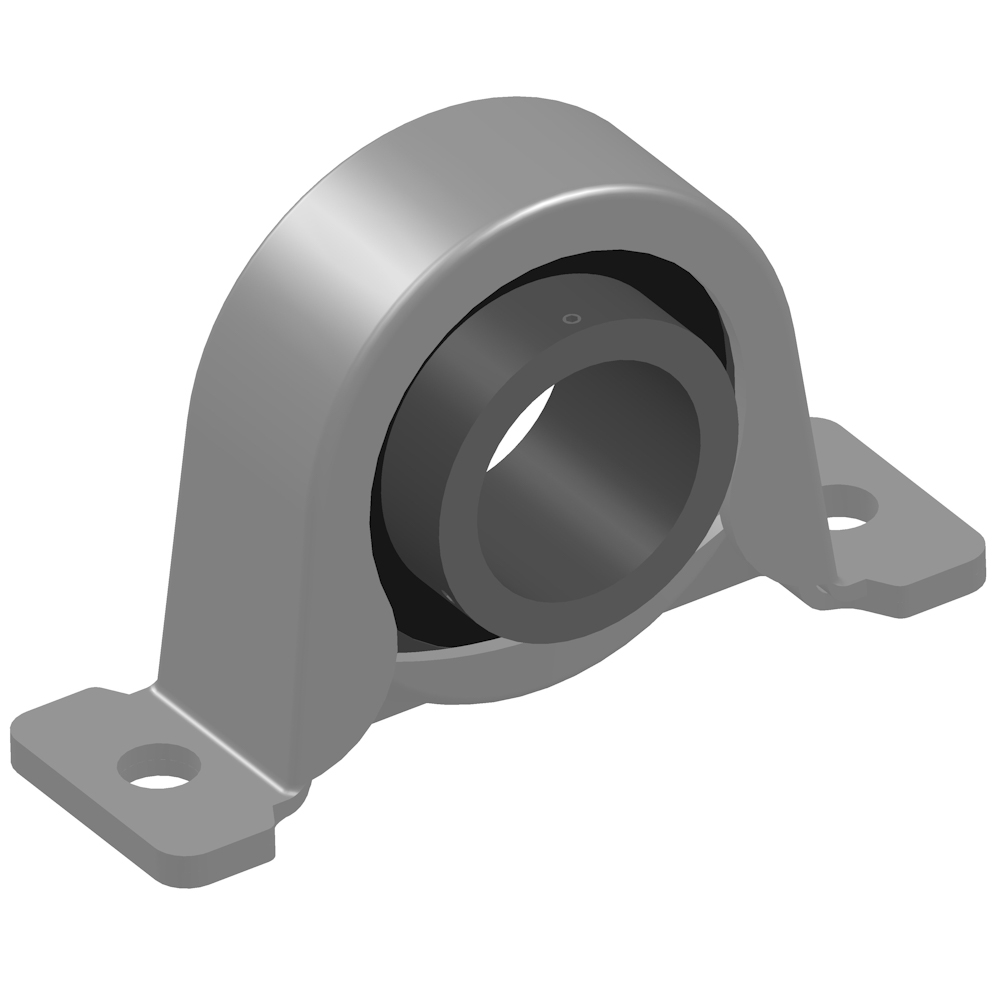

Pillow block 1" with bearing

The pillow block with a double-shell stamped metal bracket works as a support point for 34 mm drive shafts for ventilation- and shading-systems in greenhouses. The pillow block has mounting holes for M8 bolts.Thanks to its double-shell construction the ball bearing within the bracket can be replaced, if needed. The product can be delivered with a usual ball bearing SB 207 (24000101) or with a ball bearing with a longer inner ring UB 207 (24000101).Material: Galvanized steel (housing & bearing)

Slide bearing plate B1"

The support plate works as a bearing for 34 mm drive shafts in greenhouses. It is equipped with straight mounting holes. Thanks to built -in slide bearing, which is constructed with a centred bronze ring, this support plate is very durable and suitable for applications under heavy weights. In addition this slide bearing functions as a substitute for grease. Material: Galvanized steelMounting height: Lower edge to middle of drive shaft 62 mmRidder Art.-Nr.: 503086

TGU shaft hanger-set

Application:1. Fast, easy replacement of broken shaft hangers.2. Sturdy and durable components for new and old greenhouses.3. Designed to fit most greenhouses, it can also be customized on demand.Benefits:• Less labor on repairs. No need to dismantle the shaft, our unique hangers are assembled around it - it’s a one-man job!• Adds flexibility to the construction of new systems in existing and new buildings.• Extends the life of other related parts (motors, drive pipes, structure stability) due to the specially formulated inner plastic ring which serves as bearing support and holds the drive line in its optimal position.• A better alternative to a standard support plate and other shaft hangers.• Makes complicated drive line repairs easy!

diabolo roll big

Tube connectors halfs 1" - incl. 4 bolts M8 x 45

These tube connector halves are used for reliable connection of 34 mm steel tubes for drive shafts. Compared to heat-welded connection our tube connector halves offer higher stability and durability. The connector halves are bolted to the steel tubes with the included M8x50 bolts. Material: Steel, galvanized

KST-Lager 1" 50/50

This offset bearing has been developed for suspended shading systems with gable end drive. It brings the drive shaft to an optimal position and as a support point enables its rotation. The product has been built to hold trailing load. Material: High impact reistant plastic For mounting you will need the following parts: - M 8 x 70 bolt - M8 nyloc nut

Alu-Support plate 40

Application: Support plate for fastening drive shafts in shading systems Material: Aluminum for high stability and corrosion resistance Mounting: Angled shape ensures secure attachment to structural elements Height: Center of pipe: 40 mm Special feature: Lightweight design for easy installation The Angled Aluminum Support Plate 1″ offers a reliable solution for mounting drive shafts in greenhouse shading systems. Its angled shape ensures a stable and secure installation. The high-grade aluminum provides excellent resistance to environmental conditions and long service life. Ideal for professional greenhouse applications, it enhances the efficiency and durability of shading structures.

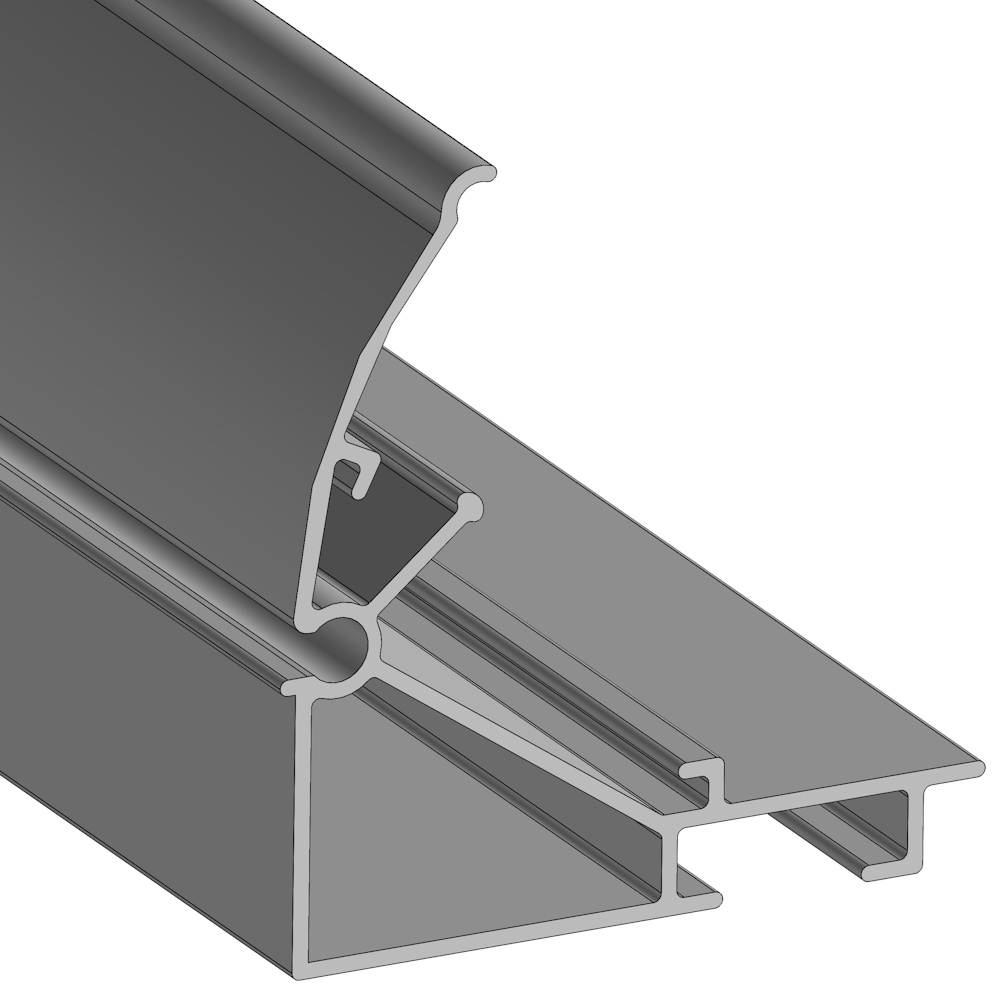

screenprofile I - L = 6,40 m

This aluminium profile is used to move shade cloth in lay-flat shading systems. In special cases it is also applicable in suspended systems. It has one groove for a rubber seal. Material: aluminium

wire support bracket 50.50

The support wire bracket is used for easy fixing of inox- wire onto square tube.The wire bracket gets clipped and screwed onto the square tube. Thanks to this fixation it can withstand high tension. For screwing you will need a M 6x65-bolt which is not delivered with the product. A significant advantage of our wire holder is its ability to be repositioned even after the wire has been set. This ensures that the ongoing installation remains flexible and can be continuously adjusted to meet changing requirements.
