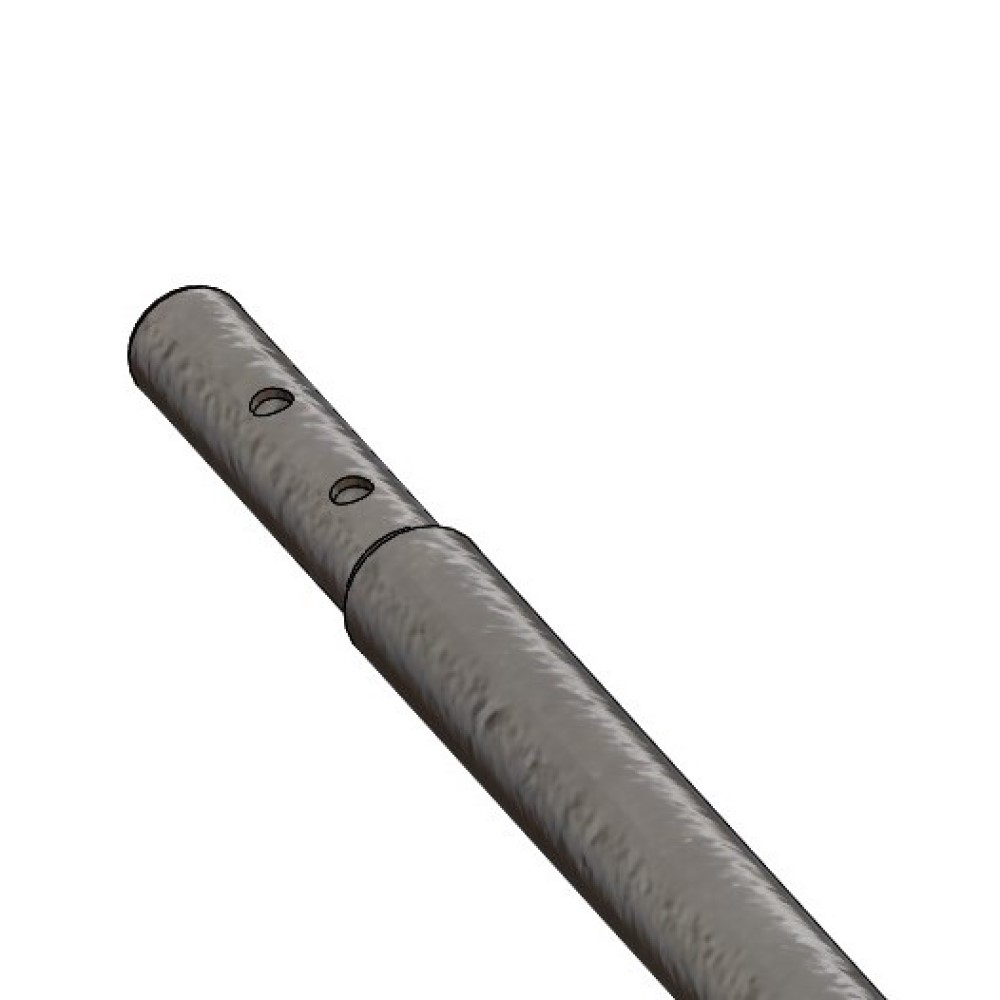

Adapter extended Tube 1Z x 2,5, 32 x 1,5 galvanized

Application: Push rod for shading and ventilation systems in greenhouses Material: Galvanized steel for superior corrosion resistance Design: Tapered ends for easy plug-in connection and fastening Wall Thickness: 1.5 mm Length: 6500 mm Packaging Unit: Bundle of 86 tubes The 32/1.5 mm Tapered Steel Tube, Sendzimir-Galvanized is designed for use as a push rod in greenhouse shading and ventilation systems. Its tapered ends ensure a smooth plug-in connection and reliable fastening. For secure assembly, it is recommended to use bolt and nut type 27.32. The galvanized surface provides excellent protection against corrosion, making the tube ideal for long-term installation.

Application: Drive shaft for greenhouse ventilation and shading systems Diameter: 1″ (≈ 33.5 mm) Wall thickness: 2.5 mm Length: 6.50 m Material: Galvanized steel Ends: Swaged for easy insertion and bolting Packaging: Bundle of 81 pieces The Steel tube Ø 1″ / 2.5 mm – 6.50 m – 81 pcs/bundle is a robust drive shaft for large greenhouse systems. Its swaged ends allow for seamless connection using bolt set 27.32. Built for high torsional loads and long-term durability.

Application: For automatic or manual drive systems to open and close side ventilation Length: Adjustable from 1220 mm to 1580 mm Material: Aluminium housing with stainless steel piston rod Mounting: Quick installation via proven double-flat coupling Compatibility: Suitable for fixed-mounted motors Max. drive angle: 34° The Telescopic Shaft 1220–1580 mm is a compact and maintenance-free TransAxleUnit for lightweight greenhouse structures such as poly tunnels. Its telescopic design allows flexible adjustment and easy integration into side ventilation systems.

Application: For automatic or manual drive systems to open and close side ventilation Length: Adjustable from 1240 mm to 1960 mm Material: Aluminium housing with stainless steel piston rod Mounting: Quick installation via proven double-flat coupling Compatibility: Suitable for fixed-mounted motors Max. drive angle: 34° The Telescopic Shaft 1240–1960 mm is a robust and maintenance-free TransAxleUnit for lightweight greenhouse structures such as poly tunnels. Its telescopic design allows flexible adjustment and easy integration into side ventilation systems.

Application: Manual operation of shading and ventilation systems Material: Durable steel construction for high stability and longevity Gear ratio: 1:40 – enables precise control with minimal effort Installation: Directly mountable to TGU telescopic shafts or drive shafts The Manual Drive R41-1P/TGU for Small Applications is a reliable solution for manually operating greenhouse shading and ventilation systems. Its sturdy steel build ensures long-term durability and stable performance. With a gear ratio of 1:40, it allows precise control with minimal force. The unit mounts directly to TGU telescopic or standard drive shafts for easy installation.
