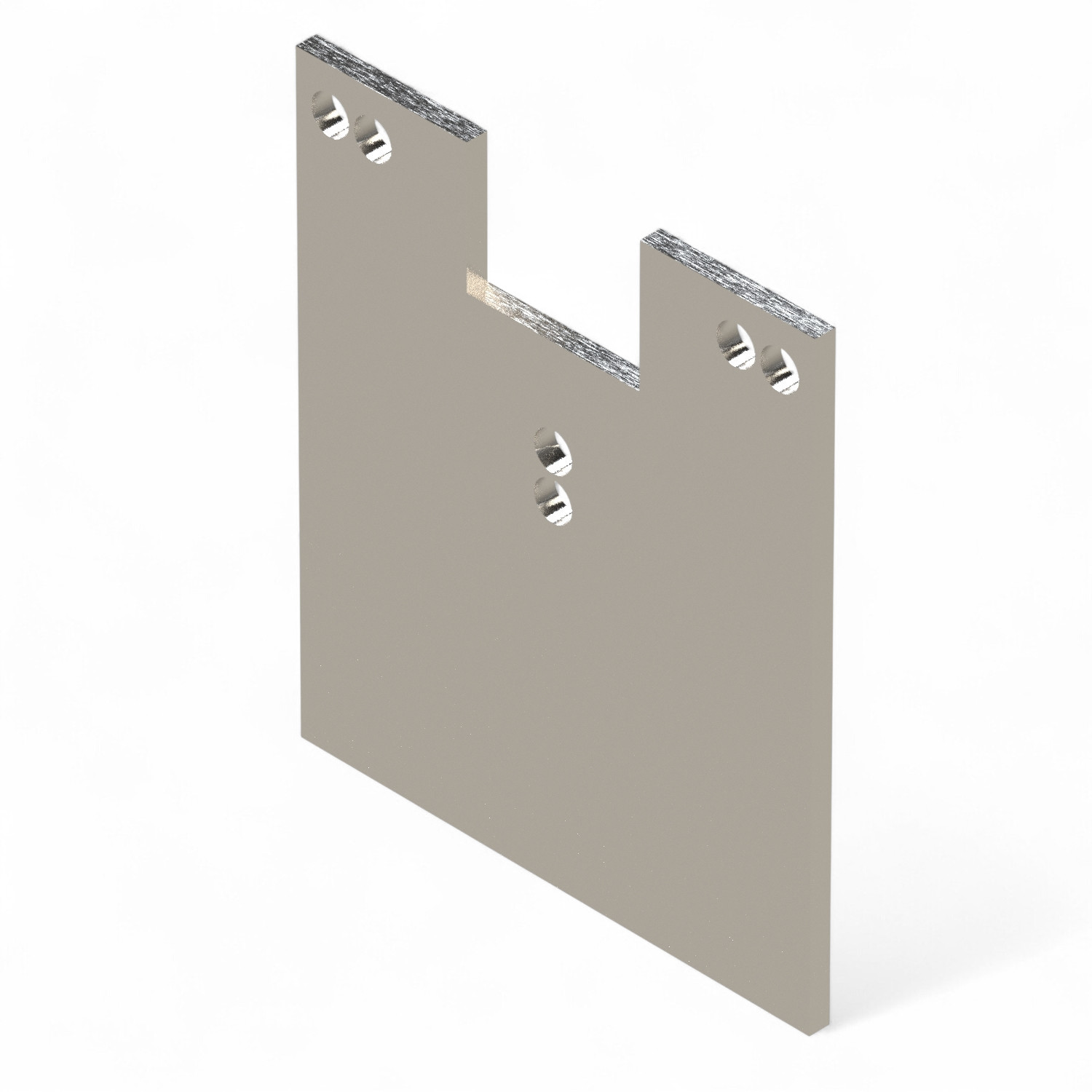

Mounting plate 105-130\B163 / 413922

Available, delivery time 1-3 days

Please note - limited stock: 9

Product number: 32111201

Product information "Mounting plate 105-130\B163 / 413922"

Application: Straight mounting plate for RW240/400/600/200 gear motors, RPG150/300/450 PolyGearbox units, RPD150/300/450 PolyDrive motor gearboxes, and RAL240 gear motors
Material: Galvanized or bare steel for high stability and corrosion resistance
Mounting: Can be attached using bolts or welding
Total length: 175.5 mm
Length B1 (edge to center of hole): 163 mm
Special feature: Custom lengths or configurations available on request
Ridder Article No.: 413922

The Mounting Plate 105-130 B163 is a straight steel mounting plate specifically designed for RW240/400/600/200 gear motors, RPG PolyGearbox units, RPD PolyDrive motor gearboxes, and RAL240 gear motors. It ensures secure and stable installation and can be either bolted or welded into place.

Thanks to its galvanized or untreated steel construction, the plate offers excellent resistance to corrosion and mechanical stress. Custom lengths or special versions are available on request to ensure optimal compatibility with various systems.
