Application: Drive or ventilation cable for greenhouse systems Construction: 7×7 strands Diameter: 3 mm Length: 500 m Material: Galvanized steel Features: Flexible, corrosion-resistant, suitable for horticultural use The Aircraft cable galvanized 7×7 – Ø 3 mm – 500 m is ideal for use in greenhouse ventilation and shading systems. Its 7×7 construction ensures flexibility and strength, while the galvanized finish provides long-term corrosion protection.

Application: Connecting support wires to 19 mm aluminum tubes in greenhouse shading systems Material: High-quality plastic for long-term durability Feature: Raised geometry for improved sealing in specific greenhouse types Packaging Unit: 3000 pcs Lead edge tube clip L 19 is designed for securely linking support wires with 19 mm aluminum tubes in shading installations. Its robust plastic construction ensures reliable fastening and long-lasting performance under greenhouse conditions. The elevated design creates additional spacing between wire and tube, which can enhance sealing efficiency—especially beneficial in closed energy curtain systems where insulation and airflow control are critical.

Application: Connection of drive cable to 19 mm tube in shading systems Material: High-grade plastic for stable and durable fastening Feature: Increased distance between tube and fabric to prevent wear Installation: Clamping the wire rope with an Allen screw – clip attachment to the pipe Packaging Unit: 250 pcs Lead edge cable clip EXT 19 is specially designed for shading systems and enables a secure connection between the drive cable and a 19 mm tube. The EXT version provides an increased distance between the tube and the fabric, protecting the screen from direct contact with the drive cable. This significantly reduces wear and extends the service life of the system. An M4x16 ISK screw is required for installation (not included), ensuring the cable is tightly clamped for a reliable and durable fixation.

Application: Fastening 2 mm wire ropes Material: Galvanized steel for high durability The Oval Wire Rope Clamps 2 mm Galvanized provide a reliable solution for securely fastening 2 mm wire ropes. Manufactured from high-quality galvanized steel, they offer excellent strength and long-term corrosion protection.

Application: Preventing polyester wire abrasion on screen profiles in laid-out shading systems Material: Plastic Highlight: Connects the supporting wire with the screen profile in suspended systems Installation: Positioned in the screen profile’s screw channel and glides side to side Packaging Unit: 500 pieces The U-Shaped Profile Glider provides a protective guide for polyester wire in shading systems, preventing damage from screen profile contact. It also serves as a connection element in suspended structures. Mounted in the screw groove of the screen profile, it slides horizontally to allow flexible adjustment within the setup.

Application: Sealing overlap between fabric panels in suspended shading systems Material: Fabric-compatible plastic Function: Attached to carrier wire - picks up the following fabric panel via cord for seamless overlap Packaging Unit: 200 pcs Sealing bracket for 2 mm stainless steel wire is used to seal the transition between adjoining fabric panels in suspended greenhouse shading systems. Made from plastic that protects the screen material, it ensures a gentle yet stable attachment to the carrier wire. The bracket is mounted directly on the carrier wire and is connected to the next fabric panel using a cord. This creates a consistent overlap between panels that helps minimize light leakage and contributes to a clean and functional screen layout. The same type of wire is also used in some laid screen configurations.

Application: Fastening polyester wires to universal wire holders Material: Aluminum for reliable connection Feature: Secure wire closure through crimping Packing unit: 100 pieces Aluminum Press Sleeves, Oval provide a secure fastening of polyester wires to universal wire holders. Crimping ensures a stable and permanent connection.

Application: Universal fastening of fabric in greenhouses Material: Steel with plastic coating for added protection Diameter: 1.7–2.5 mm Length: 1000 m Special Feature: Protects textiles and increases their durability The black-coated wire rope 1x7, 1.7–2.5 mm can be tensioned horizontally or vertically and is used for universal fastening of fabric. The plastic coating protects the textiles, helping them last longer.

Application area: Fastening fabric to the clip profile of the fabric drop Material: High-quality plastic for a lightweight yet stable connection Locking mechanism: Self-locking closure for secure fixation Installation: Simple hooking without additional tools Packaging unit: 100 pieces The Screen hook is a proven solution for securely fastening fabric to clip profiles in shading and ventilation systems. Its self-locking closure ensures stable fixation without the need for additional fasteners. Made from high-quality plastic, the Screen hook offers excellent resistance to environmental influences and is ideal for long-term use in greenhouses and other demanding environments. The simple hook-in installation allows for quick setup, making the Screen hook especially suitable for professional applications.

Application area: Fastening polyester wires to lattice girders in shading systems Material: High-quality stainless steel for maximum durability Special feature: Side-mounted, available in various heights The Inox truss clamps 20 mm are specifically designed for the stable fastening of polyester wires to lattice girders in shading systems. Thanks to their high-quality stainless steel construction, they offer excellent resistance and long service life. These truss clamps are side-mounted and available in various heights, allowing flexible adaptation to different requirements.

Application: Drive cable for horizontal shading systems Construction: 7×7 strands Diameter: 3 mm Length: 500 m Material: Stainless steel (INOX) Features: Rustproof, durable, ideal for outdoor use - recommended with slip clamps The Aircraft cable INOX 7×7 – Ø 3 mm – 500 m is a stainless steel drive cable for greenhouse shading systems. It is especially suited for outdoor use and performs best when paired with slip clamp fittings. Built for strength and corrosion resistance.

Application: Guiding push rods in greenhouse shading and ventilation systems with push-rod drive Material: High-quality plastic for long-term use Packaging Unit: 1000 pcs Diabolo Roller 27.32 is designed for precise guiding of push rods in greenhouse shading and ventilation systems that use push-rod drive mechanisms. Its durable plastic construction ensures high resistance to wear and a long service life, even under continuous load and environmental stress.

Application: Guiding 19 mm aluminum tubes along polyester wires in shading systems Material: Galvanized steel Installation: Mounted onto polyester wire, then clipped onto the 19 mm aluminum tube Wire Guide (short) 13 mm is designed to securely guide aluminum tubes along polyester wires in greenhouse shading installations. First attached to the wire, it is then clipped onto the tube, ensuring a straight and stable movement of the fabric panels. The fixed spacing of 13 mm between wire and tube supports consistent alignment and smooth operation, especially in suspended shading systems where precise guidance is essential.

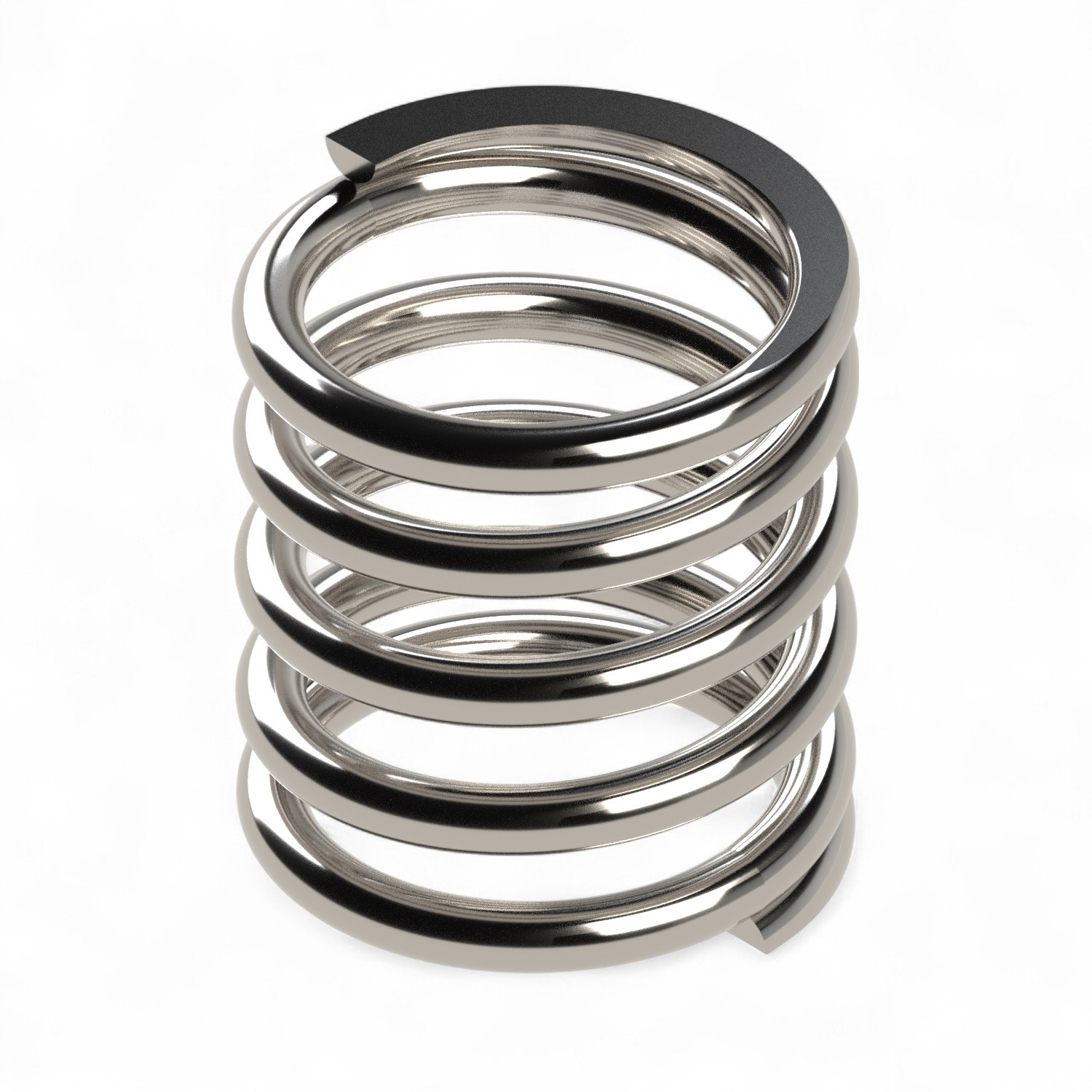

Application: Supplement for slip joints in shading systems Material: High-strength spring steel for enhanced stability Feature: Up to 2 springs can be used per clamp Packaging Unit: 50 pcs Spring for slip joint (hard version) is used to optimize the clamping performance of slip joints in greenhouse shading systems. By default, each slip joint is supplied with a soft spring. If higher resistance is needed, the system can be upgraded with up to two hard springs.

Application area: Component of the 19 mm aluminum clamping set Material: Aluminum for a stable and durable connection Special feature: Forms the connection between push rod and aluminum pipe in combination with table clamps The Alu-clamp /19 mm upper part is an essential component of the 19 mm aluminum clamping set. It is used in push rod drives and, in combination with table clamps, forms the connection between the push rod and the aluminum pipe. Thanks to its high-quality aluminum construction, it provides a reliable and long-lasting fastening solution for shading systems.

Application: Fastening uplift wires to Screen Profile I–II in shading systems Material: Galvanized steel for high stability and corrosion protection Installation: Simple mounting on the screen profile for secure wire guidance Feature: Universal compatibility with various shading system designs Packaging Unit: 50 pcs Universal Wire Guide is purpose-built for securing uplift wires in greenhouse shading systems. It mounts directly onto Screen Profile I–II, ensuring stable and reliable wire alignment throughout operation. Made of galvanized steel, the guide offers long-term durability and excellent resistance to corrosion. Its universal design makes it suitable for a wide range of shading configurations, providing flexibility and ease of integration.

This plastic pulley has a split bracket for attachment to already strained cables. In this case the pulley functions as a guiding roller. Being turned around the pulley can be suspended with the included S-hook. In this position the pulley can divert cables. Made of high impact resistant plastic Diameter 40 mm Can be used for cables with a diameter up to 7 mm With an axel made of stainless steel Comes with a S-hook for suspending

Application area: Connection between drive wire rope and 19 mm pipe in shading systems Material: Plastic Installation: Secured with an M4 × 16 socket head screw to fix the wire rope The Lead edge cable clip S 19 mm enables a secure connection between the drive wire rope and the 19 mm pipe in shading systems. Installation requires an M4 × 16 socket head screw to firmly fix the wire rope.

Application: Quick and easy mounting of Inox wire in suspended shading systems Material: Galvanized steel Installation: Adjustable left and right after mounting Special feature: Designed specifically for suspended systems Note: Requires M6×65 bolt (not included) The Wire Tightener 50.50 with Complete Winding is designed for fast and secure installation of Inox wire in suspended shading systems. Its geometry provides optimal mounting position for this application. Once installed, the tightener can be adjusted laterally. It is also suitable for other use cases where wire or cable tensioning is required.

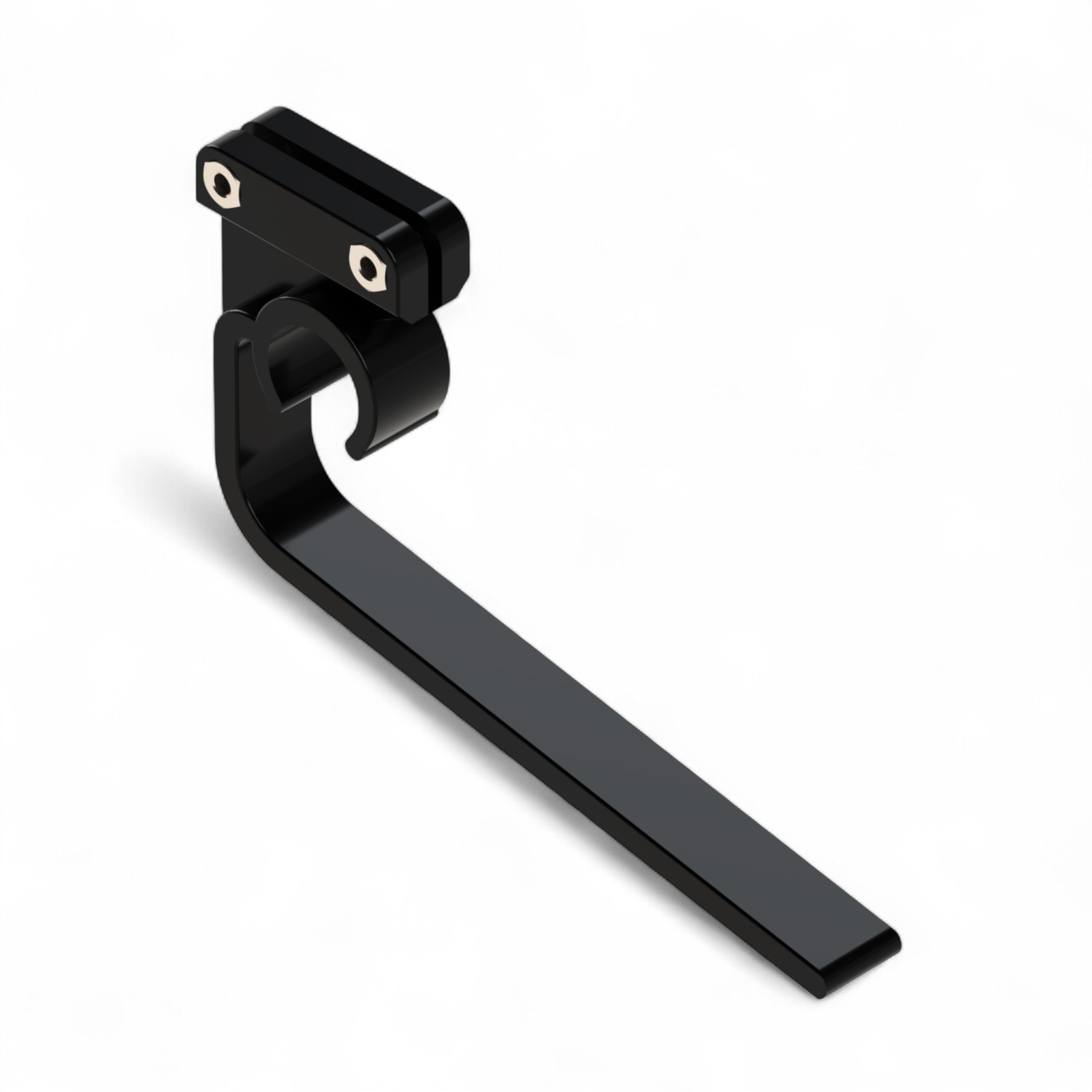

Application: Connects 19 mm aluminum pipes to the drive cable in laid shading systems Material: Steel Feature: Integrated cloth retainer bracket supports fabric return movement Packaging Unit: 20 pcs Lead edge cable clip 19 – with cloth retainer is a robust steel connector used in laid shading systems for greenhouses. It enables secure fastening between 19 mm aluminum tubes and the drive cable. The integrated cloth retainer ensures reliable retraction of the shading fabric, maintaining consistent guidance and performance during system operation.

Application: Universal use in wire rope drives, stage construction, media systems, and fitness equipment Material: Impact-resistant plastic for high load capacity Diameter: 63 mm Bearing: Precision deep-groove ball bearing with dust protection Wire Diameter: Suitable for ropes up to 4 mm Axle Compatibility: Fits 6 mm axle bolts Pulley 62.52.6 is a highly versatile component made from durable plastic with a 63 mm outer diameter. It’s an ideal choice for various drive applications—from stage mechanics to fitness equipment and technical setups. Its sealed precision ball bearing ensures smooth, long-lasting operation. Designed for ropes up to 4 mm in diameter and compatible with 6 mm axle bolts.

Application: Protecting polyester wires routed through holes in metal profiles Material: Plastic Installation: Snap-fit locking in sheet metal via integrated detent Max. Profile Thickness: 4 mm Packaging Unit: 1000 pcs Wire Guide 4.8 is a plastic insert designed to protect polyester wires that pass through openings in metal profile sections. Its integrated detent mechanism ensures secure anchoring within the sheet, preventing movement and abrasion. Compatible with profiles up to 4 mm thick, this wire guide offers an effective and durable solution to reduce wear and extend the service life of cable systems in greenhouse structures and technical installations.

Application area: Connecting 27 mm push rods with 19 mm pipes or screen profiles Material: Steel Special feature: Suitable for constructions with narrow fabric spacing The Table clamp 27.40 connects 27 mm push rods with 19 mm pipes or screen profiles that guide the fabric. It is particularly suitable for constructions with narrow fabric spacing where lightweight shading fabric is used.

Application: Component of the TGU delay set for greenhouse shading systems Material: Steel Installation: Joins the 19 mm fabric guide tube with the 19 mm delay tube Packaging Unit: 200 pcs Cross clamp 19.20 is a key element in the TGU delay set used in shading systems. It securely connects the 19 mm fabric guide tube with the 19 mm delay tube of the delayed rail, ensuring stable and durable attachment.
