Application: Fastening mesh to screen profiles and wires Material: High-quality plastic, gentle on textile Color: Black Packaging Unit: 2000 pcs Cloth clips 22.3.3 are specially designed for attaching mesh fabric to screen profiles and wires in shading systems. Their smooth plastic material prevents damage to the textile while ensuring a firm hold. These clips can also be used outside shading setups—ideal for securing lightweight materials to wires or thin metal panels.

Application: Preventing polyester wire abrasion on screen profiles in laid-out shading systems Material: Plastic Highlight: Connects the supporting wire with the screen profile in suspended systems Installation: Positioned in the screen profile’s screw channel and glides side to side Packaging Unit: 500 pieces The U-Shaped Profile Glider provides a protective guide for polyester wire in shading systems, preventing damage from screen profile contact. It also serves as a connection element in suspended structures. Mounted in the screw groove of the screen profile, it slides horizontally to allow flexible adjustment within the setup.

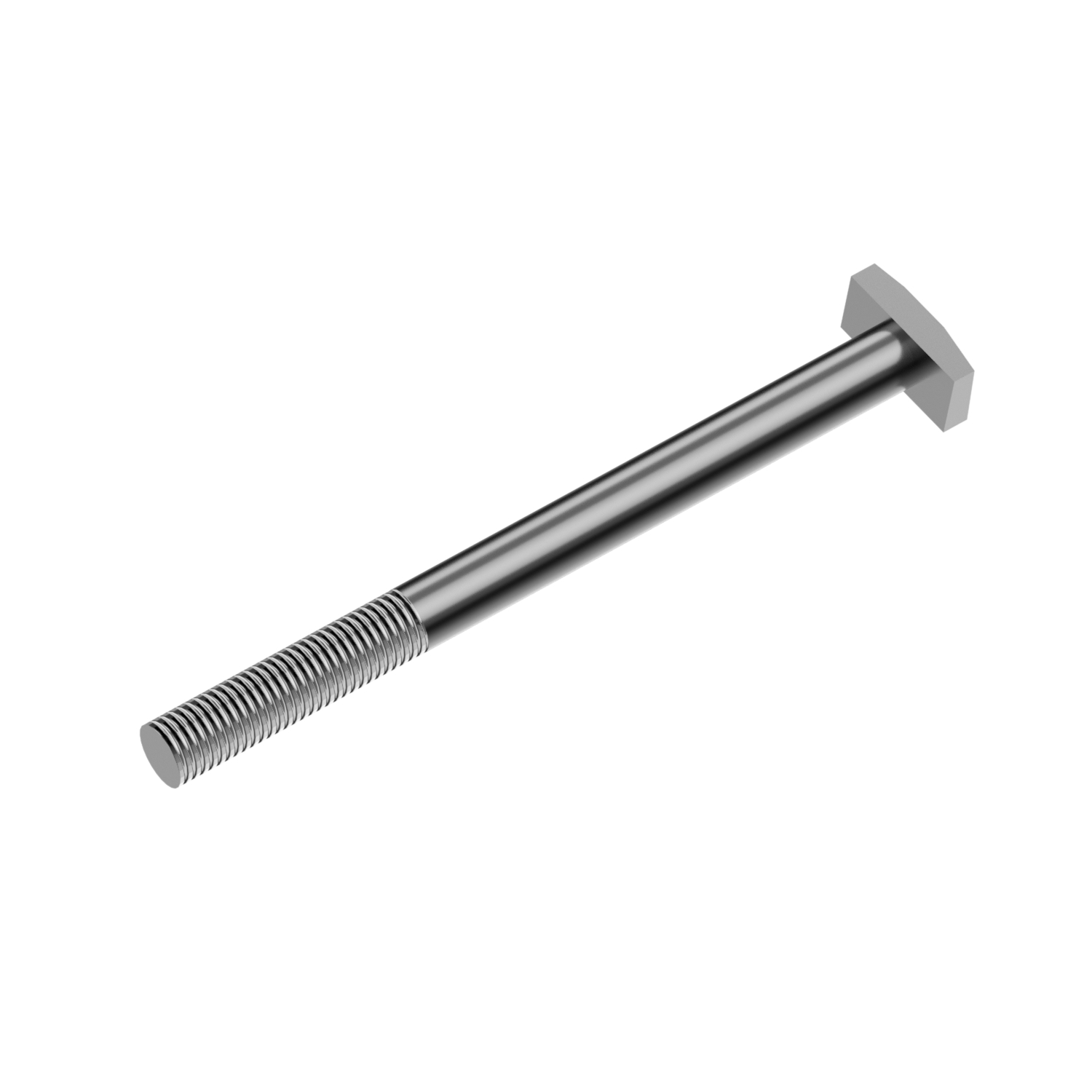

Application: General-purpose fastening in shading and ventilation assemblies Material: Zinc-plated steel for enhanced corrosion protection Size: M6 x 75 mm Installation: Ideal with M6 nut to secure Table Clamp H 60 to screen profiles Feature: T-bolt head enables quick and secure installation Packaging Unit: 100 pcs T-Bolt M6 x 75 is purpose-built for use in greenhouse shading and ventilation systems. The zinc-plated finish provides excellent resistance to corrosion in tough environments. Its T-shaped head offers a quick-locking fit and is commonly used in combination with an M6 nut to attach the Table Clamp H 60 securely to screen profiles. The 75 mm length delivers extra holding force for heavier-duty applications.

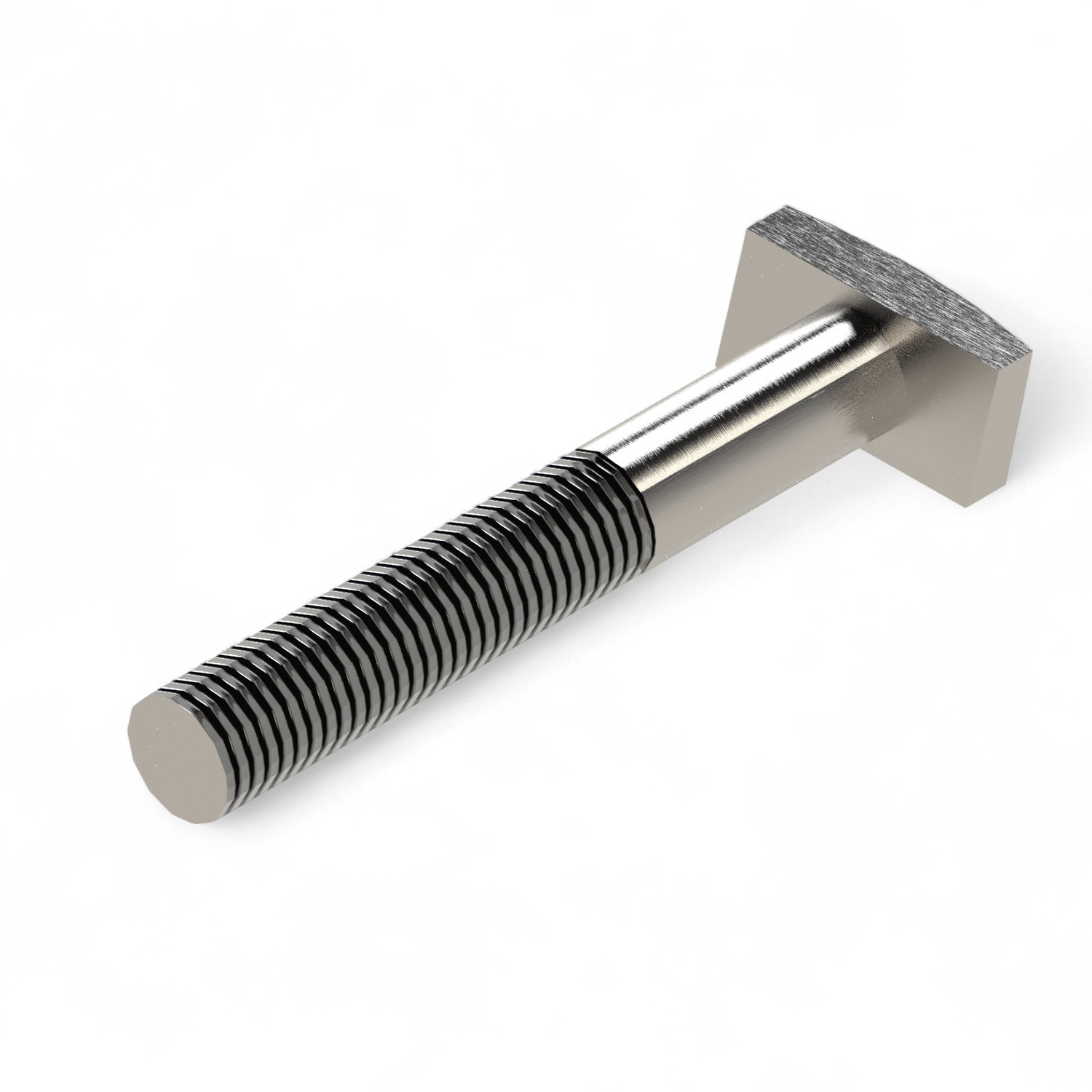

Application: Mounting clamp pieces to screen profiles in shading and ventilation systems Material: Zinc-plated steel for high corrosion resistance Thread: M6 x 40 mm Installation: Easy fastening with M6 nut Packaging Unit: 100 pcs T-Bolt M6 x 40 zinc-plated is a universal fastener designed to secure clamp pieces to screen profiles in greenhouse shading and ventilation systems. Made from corrosion-resistant zinc-plated steel, it ensures reliable long-term use in demanding environments. With an M6 thread and 40 mm shaft, this T-bolt pairs easily with a standard M6 nut, creating a strong and dependable connection. Supplied in units of 100, suitable for both compact and large-scale projects.

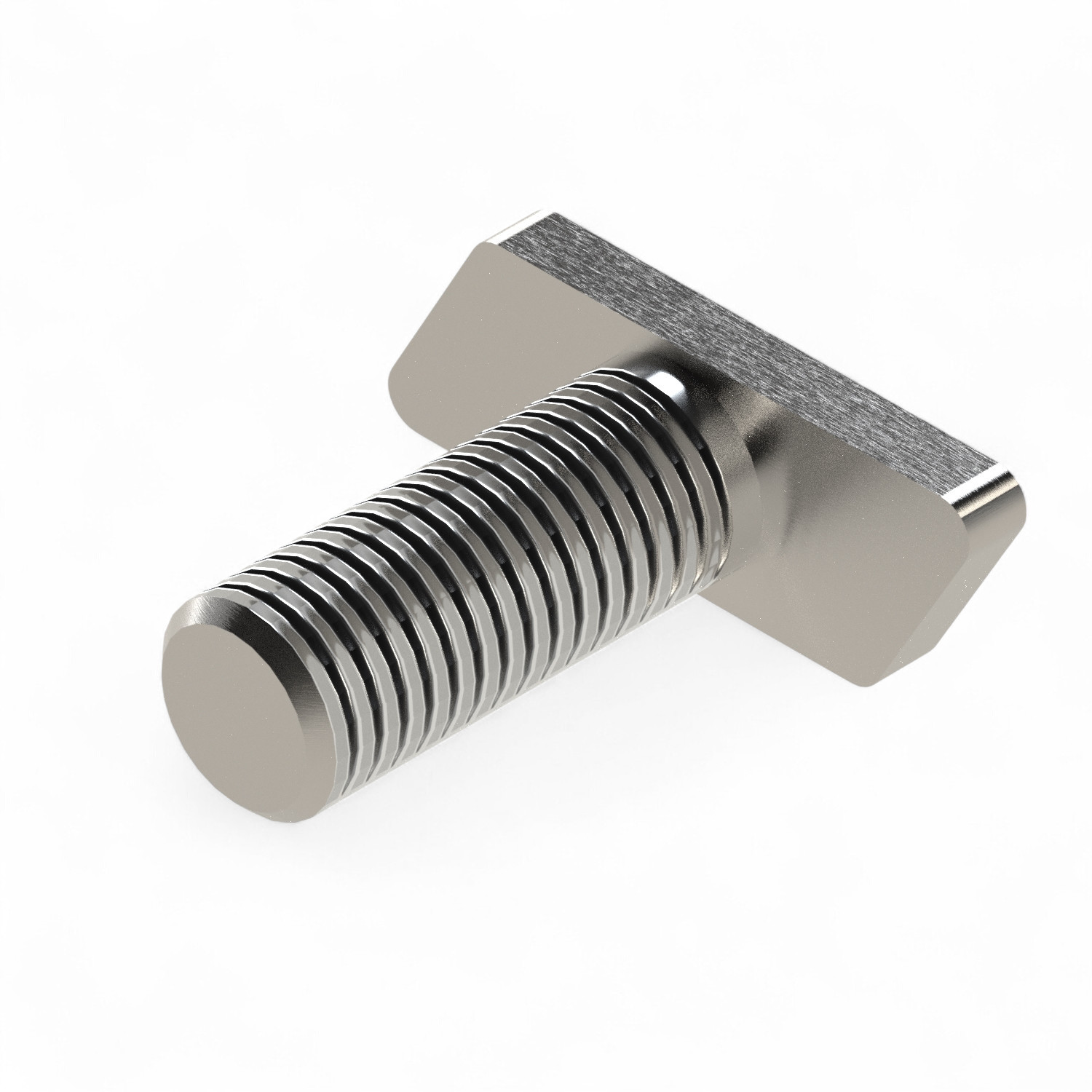

Application: Universal T-bolt for shading and ventilation system assembly Material: Stainless steel V2A for high corrosion resistance Size: M6 x 15 mm Head Dimensions: 16/7/2 mm Packaging Unit: 1000 pcs Special Feature: Ideal for fastening sliding clamp pieces to screen profiles T-Bolt V2A M6 x 15 (16/7/2) is engineered for attaching sliding clamp elements to screen profiles in greenhouse ventilation and shading applications. Constructed from high-grade stainless steel (V2A), it offers excellent corrosion resistance and long-lasting reliability.

Application: Shade cloth transport in lay-flat shading systems Length: 6.40 m Material: Aluminum Features: One groove for rubber seal Packaging: Bundle of 140 pieces The Screen profile I – 6.40 m – 140 pcs/bundle is ideal for large-scale greenhouse shading systems. It provides smooth fabric guidance and includes a groove for rubber sealing. Made of corrosion-resistant aluminum for long-term durability.

Application: Shade cloth transport in lay-flat shading systems Length: 6.40 m Material: Aluminum Features: Two grooves for rubber seals Packaging: Bundle of 154 pieces The Screen profile II – 6.40 m – 154 pcs/bundle is ideal for large-scale greenhouse shading systems. It provides smooth fabric guidance and includes two grooves for rubber sealing. Made of corrosion-resistant aluminum for long-term durability.

Application: Seals the gap between screen profile and greenhouse truss Material: Rubber Length: 200 m per roll Compatibility: Fits screen profiles Type I–V Function: Prevents light penetration and heat loss when screens are closed The Rubber seal for screen profile – Roll = 200 m is used in energy screen systems to close the gap between the screen profile and greenhouse structure. It minimizes energy loss and light intrusion and is quick to install on all standard screen profile types.

Application area: Gentle guidance of fabric drops in laid shading systems Installation: Inserted into the screw channel of the screen profile and secured with the included screw Function: Enables clip profiles to be attached at the end of the screen profile Material: Plastic Packaging unit: 1 piece Special features: Tool-free installation – ideal for retrofitting Protects the fabric from abrasion and damage Compatible with all common screen profile types with screw channel The Retainer clip tube for screen profile is a practical accessory for laid shading systems. It is simply inserted into the screw channel of the screen profile and secured with the included screw. This allows clip profiles to be safely and gently attached to the end of the profile. Ideal for durable and low-maintenance shading systems in professional greenhouse construction.

Application: Fixed connection between drive wire rope and screen profile in shading systems Material: Aluminum Installation: Wire is securely clamped in place during installation Packaging Unit: 250 pieces The Profile Clamp 40.3 mm creates a strong and reliable connection between the drive cable and the screen profile in greenhouse shading systems. The cable is fixed firmly during installation to ensure consistent functionality. Crafted from corrosion-resistant aluminum, it’s a dependable solution for long-term use in demanding environments.

Application: Stationary screen profile for fixed installations Length: 6.40 m Material: Aluminum Features: Holds rubber seal for fabric guide tube - bolted installation Packaging: Loose (individual pieces) The Screen profile V – 6.40 m – loose is a stationary aluminum profile used in fixed greenhouse shading systems. It is designed to hold a rubber seal for the fabric guide tube and is securely bolted in place. Ideal for custom or small-scale installations.

Application: Shade cloth transport in lay-flat shading systems - suitable for suspended systems in special cases Length: 6.40 m Material: Aluminum Features: Two grooves for rubber seals - reinforced upper edge for higher load capacity The Screen profile III – 6.40 m is a heavy-duty aluminum profile designed for guiding shade cloth in horizontal greenhouse shading systems. Its reinforced upper edge and dual rubber seal grooves make it ideal for applications with higher mechanical loads.

Application: Connecting all types of screen profiles at a 135° angle Material: Aluminum Installation: Includes bolt and pre-cut screw thread Packing unit: 100 pieces The Connector Strip 135 for Screenprofile is used to join all variants of screen profiles at a 135° angle. It comes complete with a bolt and pre-threaded screw hole, allowing for quick and secure installation. Ideal for angled transitions in greenhouse shading systems, especially where flexible layout is required.

Application area: Connecting two screen profiles at an angle – ideal for side-suspended fabric Installation: Screwed into the profile ends – includes screw and pre-cut thread Material: Aluminum – lightweight, strong, and corrosion-resistant Packaging unit: 50 pieces Special features: Compatible with all common screen profile types Enables stable angled connections in complex system layouts Ideal for constructions with side-suspended shading fabric The Angled connector for screen profiles is a versatile component for creating stable corner connections between two screen profiles. Especially in side-suspended shading systems, it ensures a secure and precise fit. Made of aluminum, it offers high strength at low weight and excellent corrosion resistance—perfect for long-lasting greenhouse installations.
