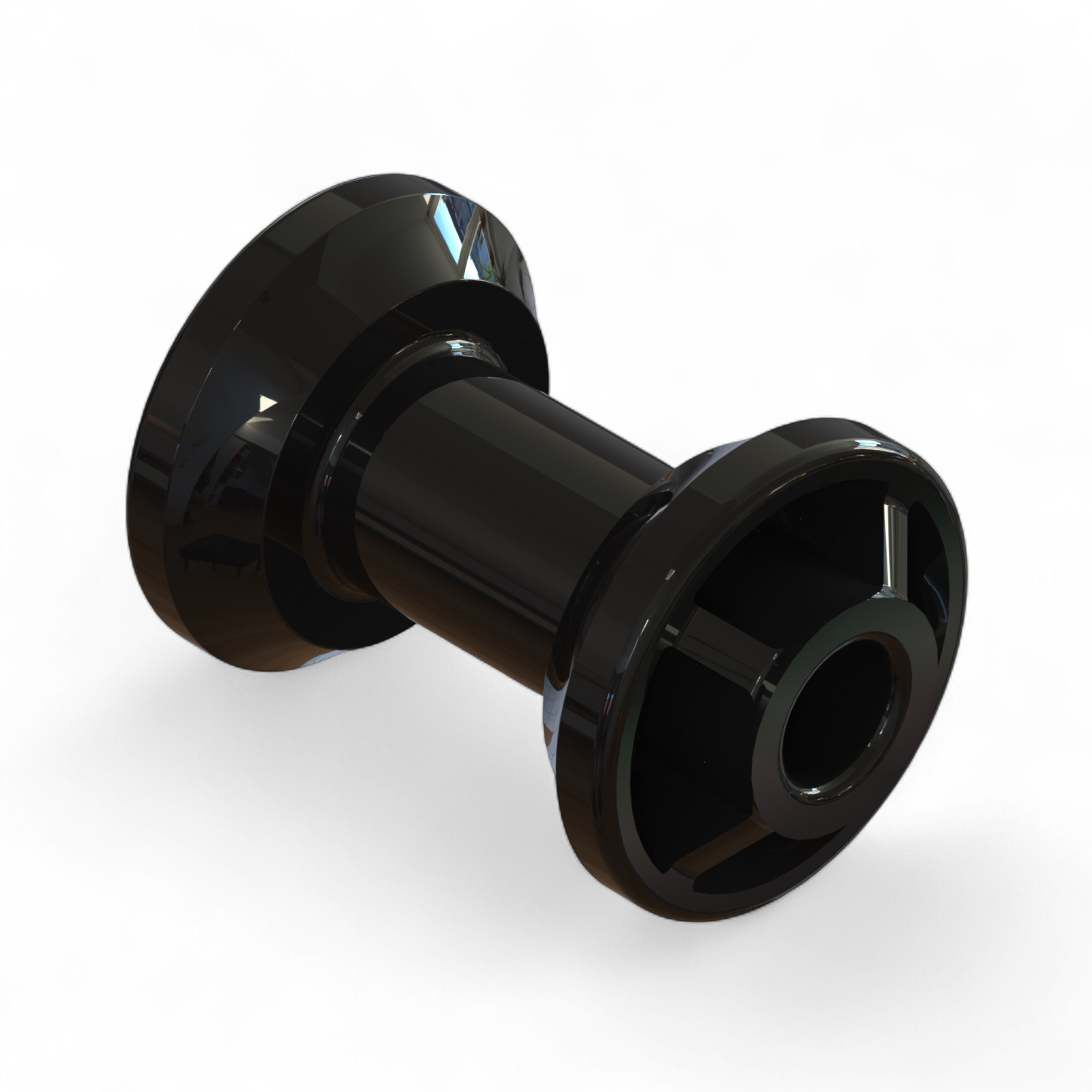

Application: Guiding push rods in greenhouse shading and ventilation systems with push-rod drive Material: High-quality plastic for long-term use Packaging Unit: 1000 pcs Diabolo Roller 27.32 is designed for precise guiding of push rods in greenhouse shading and ventilation systems that use push-rod drive mechanisms. Its durable plastic construction ensures high resistance to wear and a long service life, even under continuous load and environmental stress.

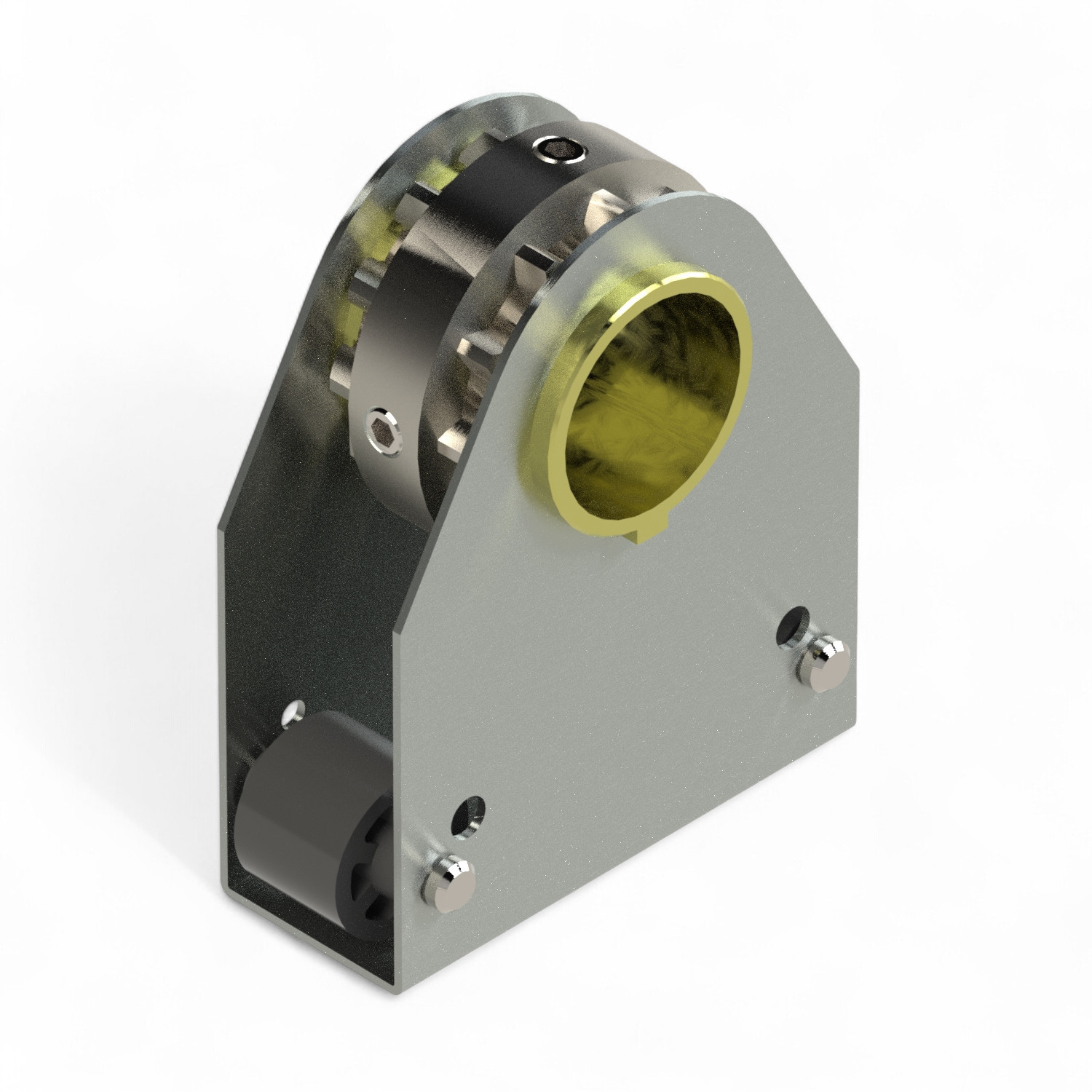

Application: Drive unit for 30 mm rack systems in greenhouse ventilation Material: Steel housing with plastic bearing ring Design: Counter rollers for smooth and gentle rack guidance Compatibility: For 30-3 racks and 34 mm steel drive tubes Use case: Ideal for lightweight ventilation systems Ridder Article No.: 500018 The Pinion Housing TU6-30 is designed for 30 mm rack systems in greenhouses. Its counter rollers ensure low-wear, smooth rack movement. The plastic bearing makes it especially suitable for simple, lightweight ventilation systems.

Application: Fixes racks to ventilation flaps in greenhouse roof systems Material: Aluminum pressure-casting Mounting: Includes Inox M6 bolt for rack fixation - 2 additional M6 bolts needed for flap mounting (not included) Compatibility: TU11-22 and TU11-30 pinion housings Packaging unit: 10 pieces Ridder Article No.: 500021 The Window Connector for TU11-22 and TU11-30 securely attaches the rack to the ventilation flap. It ensures precise alignment and reliable operation in greenhouse roof ventilation systems. Made from durable aluminum die-cast for long-term use.

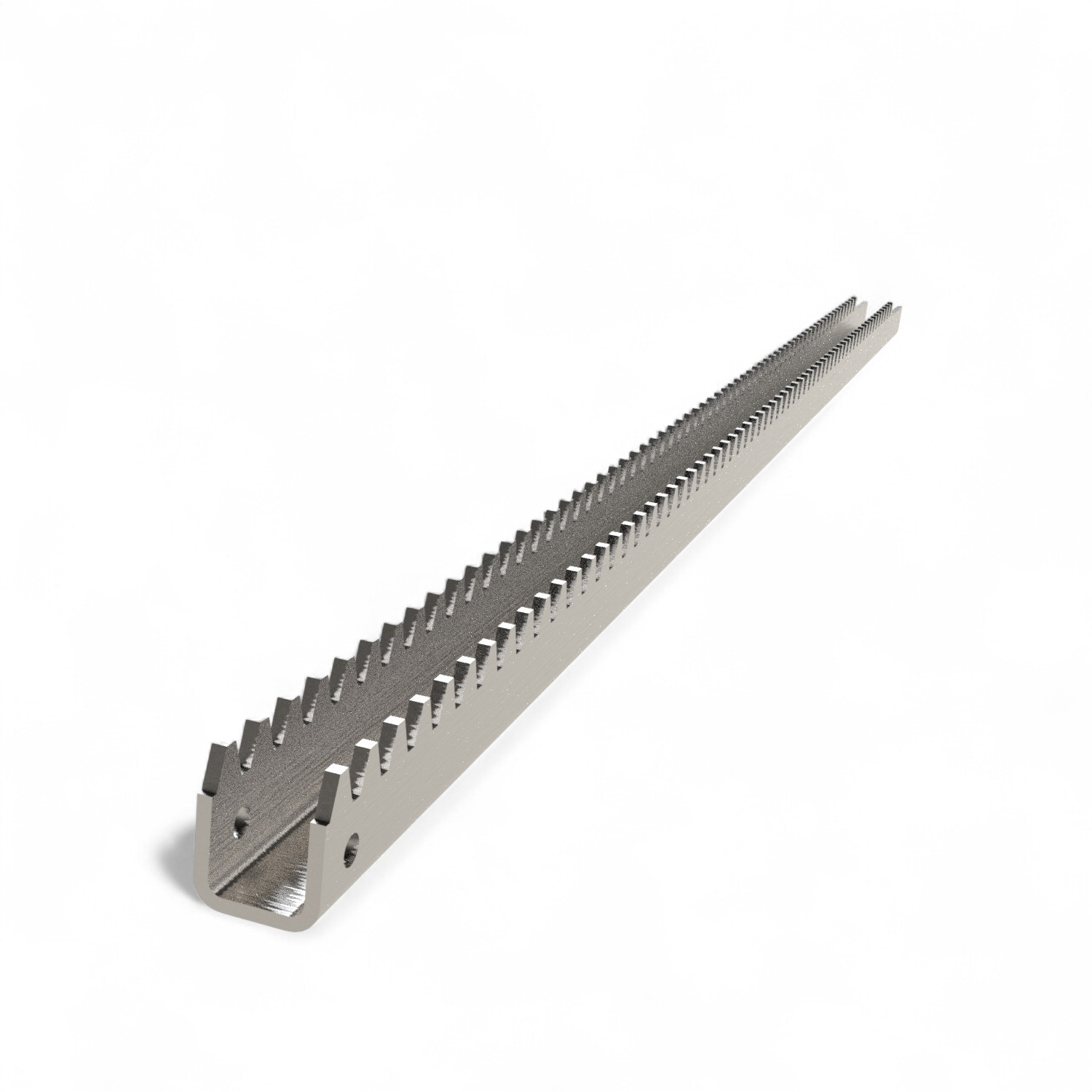

Application: Standard ventilation systems in all types of greenhouses Material: Galvanized steel sheet Length: 792 mm Design: Straight, with toothless end for safety stop Compatibility: Precisely matched to pinion housing TU 11:30 Tooth height: 30 mm Ridder Article No.: 418546 The Rack 30-3 / L792 mm is designed for use in greenhouse ventilation systems. It features a toothless end for a secure stop and is supplied with integrated run-out protection (UV=77) as standard. Custom lengths available on request.

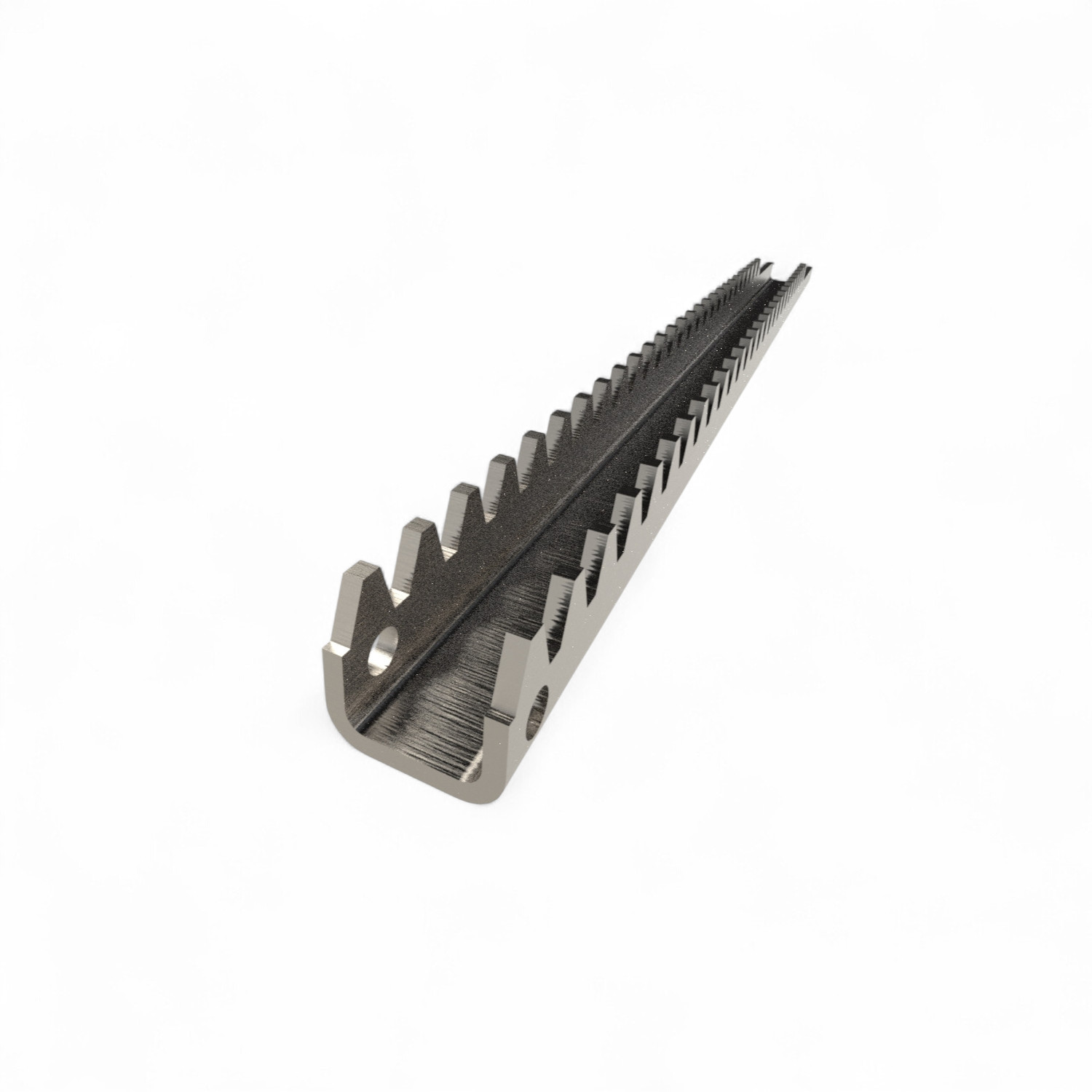

Application: Lightweight ventilation systems in poly tunnels and greenhouses Material: Galvanized steel Length: 1546 mm Toothing: End piece without teeth for safety stop Compatibility: Precisely fitted to pinion housings TU 11:22 & TU 11:30 Tooth height: 22 mm Ridder Article No.: 418095 The Rack 22-3 / L1546 mm is ideal for lightweight greenhouse ventilation. Its toothless end ensures a secure stop at full opening and prevents the rack from being pushed out. Built for durability and precision fit with Ridder TU 11:22 and TU 11:30 pinion housings.

Application: Safety housing for racks in greenhouse ventilation systems Material: Housing: plastic - Tube: aluminum Design: Two-part shell with dual-sided receptacle for rack protection tubes Mounting: Secured with galvanized M4×16 steel screws (included) Packaging unit: 25 pieces Benefit: Prevents injury and contamination from lubricants - compatible with insect netting The Pinion Housing Protection – 2-Part Shells is used in combination with rack protection tubes to shield racks at sensitive points in greenhouses. It prevents contact with moving parts and supports insect-free greenhouse designs. The housing is made of durable plastic and includes mounting screws.

Application area: Professional rack grease for treating racks in greenhouse ventilation and shading systems Usage: Annual maintenance with this grease ensures long-term, smooth operation of rack drives Application method: Can be applied to the racks using a brush Packaging: Supplied in a cartridge suitable for 400 g grease guns Packaging unit: 24 cartridges Rack grease 400 g is specially developed for maintaining racks in greenhouse systems. It provides optimal lubrication and extends the service life of rack drives. Thanks to its easy brush-on application, the grease can be distributed evenly across the rack surface. This product is ideal for professional use and helps maintain the efficiency and reliability of ventilation and shading systems.

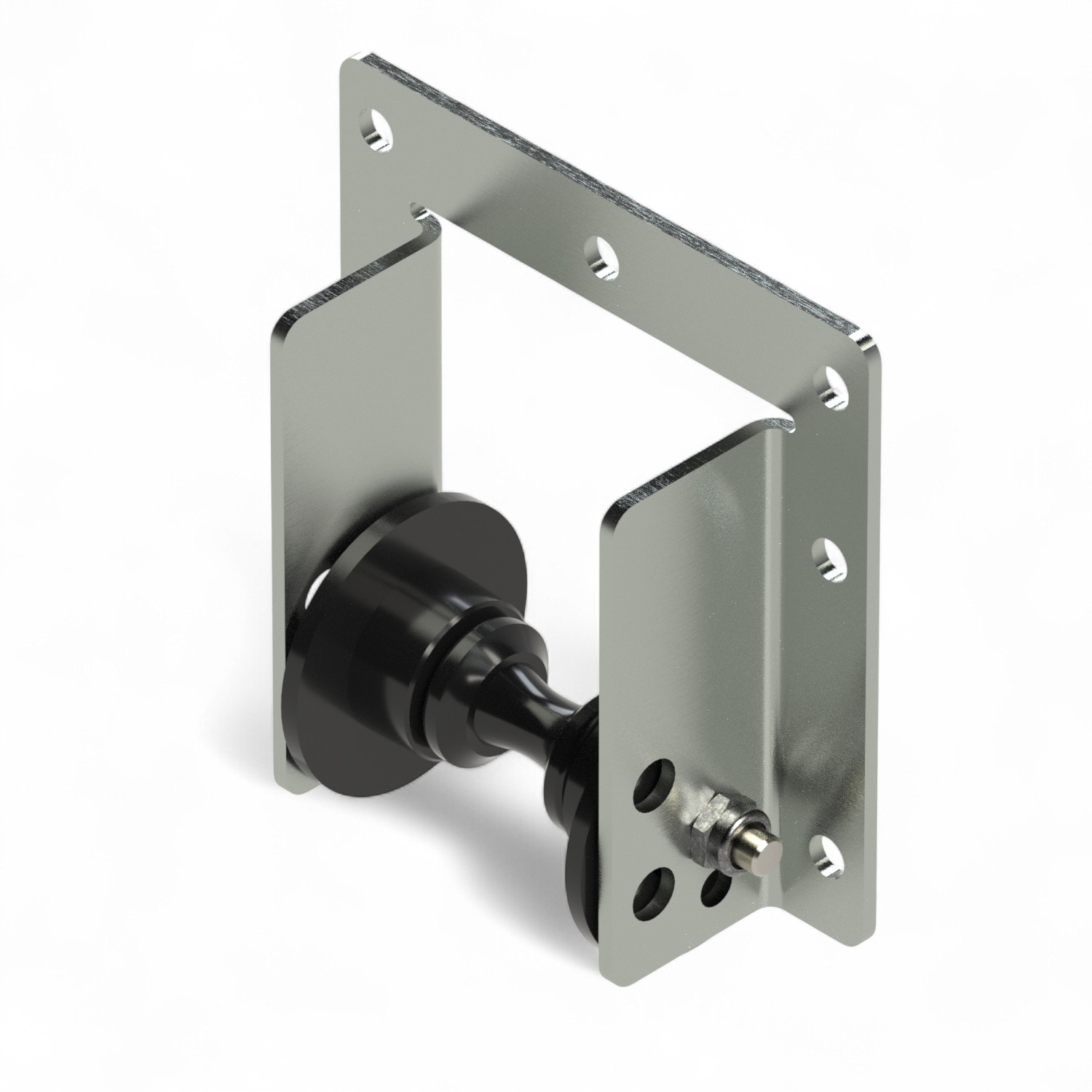

Application area: Guidance of push rods in shading systems with push rod drive Material: Diabolo roller made of plastic, housing made of galvanized steel Installation: Secure fastening through robust housing design Special feature: Optimal guidance of push rods for smooth movement The Diabolo roll 27.32 with stamped sheet housing is a proven solution for guiding push rods in shading systems with push rod drive. It ensures precise and smooth movement of the push rods, contributing to the optimal performance of the system. The roller is made of high-quality plastic, while the housing is crafted from durable stamped sheet steel to ensure maximum stability and longevity. Its thoughtful design allows for secure installation and reliable guidance of the push rods. Thanks to its robust construction and precise manufacturing, the diabolo roller is ideal for use in professional greenhouse installations.

Application: Coupling unit for connecting rack PH 40-3 to Ø 27 mm push-pull tubes in shading systems Material: Zinc die-cast, galvanized Rack compatibility: PH 40-3 Tube compatibility: Ø 27 mm push-pull tube Ridder Article No.: 500208 The Coupling unit PH40 B27x1.5 ST connects Ridder rack PH 40-3 to a 27 mm push-pull tube. Its galvanized zinc die-cast construction ensures durability and corrosion resistance in greenhouse drive systems.

Application: Lift belt guidance roller for 20 mm belts Material: High-quality plastic for long-term use Function: Ensures precise and even belt movement Diaboloroll for 42 mm Tube – Black is specifically engineered for guiding 20 mm lift belts. It supports smooth and uniform motion while preventing belt misalignment or jamming. Its durable plastic construction ensures high resistance and long service life—ideal for continuous operation in demanding setups.

Application: Lubrication of sliding bearings and TU rack drives Material: High-performance lithium complex grease with PTFE (Teflon) Temperature range: –20 °C to +150 °C Water resistance: Yes Packaging: 1-liter bottle (flacon) Ridder Article No.: 182056 The AXT Grease – 1 L Bottle is a premium lubricant developed for Ridder TU rack drives and sliding bearings. Its PTFE-enhanced formula ensures long-lasting, water-resistant lubrication and reduces wear even under demanding conditions.

Application: Weld-on sleeve coupling for connecting P26.5 mm drive shafts to 5/4″ steel tubes Material: Galvanized steel Drive shaft: P26.5 mm with 20 mm flat sides Tube connection: Welded to 5/4″ steel shaft (Ø 42 mm) Length: 44 mm Ridder Article No.: 421978 The Weld/sleeve coupling P26.5 B5/4″ ST L44 mm is used to connect flat-sided P26.5 mm drive shafts to 5/4″ steel tubes via welding. Its galvanized finish ensures durability and corrosion resistance in greenhouse environments.

Application: Coupling plate for mounting racks to drive tubes Material: Galvanized steel for high corrosion resistance Tube compatibility: Ø 27 mm or Ø 32 mm Rack compatibility: 30×16 mm or 30×20 mm racks (RackDrive 700 and TRN systems) Mounting: Bolt-and-nut connection Special feature: Rack centerline aligns precisely with tube centerline Ridder Article No.: 416489 The Coupling Plate Ridder is a robust mounting solution for attaching racks to drive tubes in RackDrive 700 and TRN systems. Its precise alignment and galvanized finish ensure long-lasting, corrosion-resistant performance in greenhouse environments.

Application: Lubrication of racks in greenhouse ventilation and shading systems Material: High-performance specialty grease Packaging: 400 g cartridge (for grease guns) Benefit: Reduces wear and ensures smooth, long-lasting operation Ridder Article No.: 182058 The RIDDER AXT Grease – 400 g Cartridge is designed for easy application with standard grease guns. It provides reliable, long-term lubrication for rack systems in greenhouses, protecting against corrosion and mechanical wear.

Application: Drive systems for greenhouse roof ventilation Material: Solid steel rack with continuous teeth on one side Length: 1400 mm Compatibility: RackDrive700, RackDrive800, TRN520/1000-3/5 Mounting: Attached to push/pull tubes Ø27 mm or Ø32 mm using rack coupling plates Load capacity: 5200 N (width 16 mm) Ridder Article No.: 416745 The Rack m4/b16 Ridder / L1400 mm is the longest standard variant in this series, offering extended stroke length for wide-span roof ventilation systems. It features a solid steel body with single-sided continuous toothing and is compatible with Ridder RackDrive and TRN rack drives. Mounted via coupling plates to push/pull tubes, it ensures reliable transmission of force in demanding greenhouse environments.

Application: Guiding push rods in shading systems with push-drive mechanisms Material: Plastic diabolo roller with zinc-coated steel housing Side Guidance: Integrated side disc for optimal push rod alignment Packaging Unit: 50 pcs Diaboloroll 27.32 with Stamped Steel Housing and Side Guide is tailored for greenhouse shading systems utilizing push rod drives. It ensures precise guidance and smooth movement of rods through consistent lateral alignment. The built-in side disc helps maintain correct positioning of the push rod, ensuring stable and reliable operation. The rugged stamped steel housing adds durability and resistance in demanding greenhouse environments.

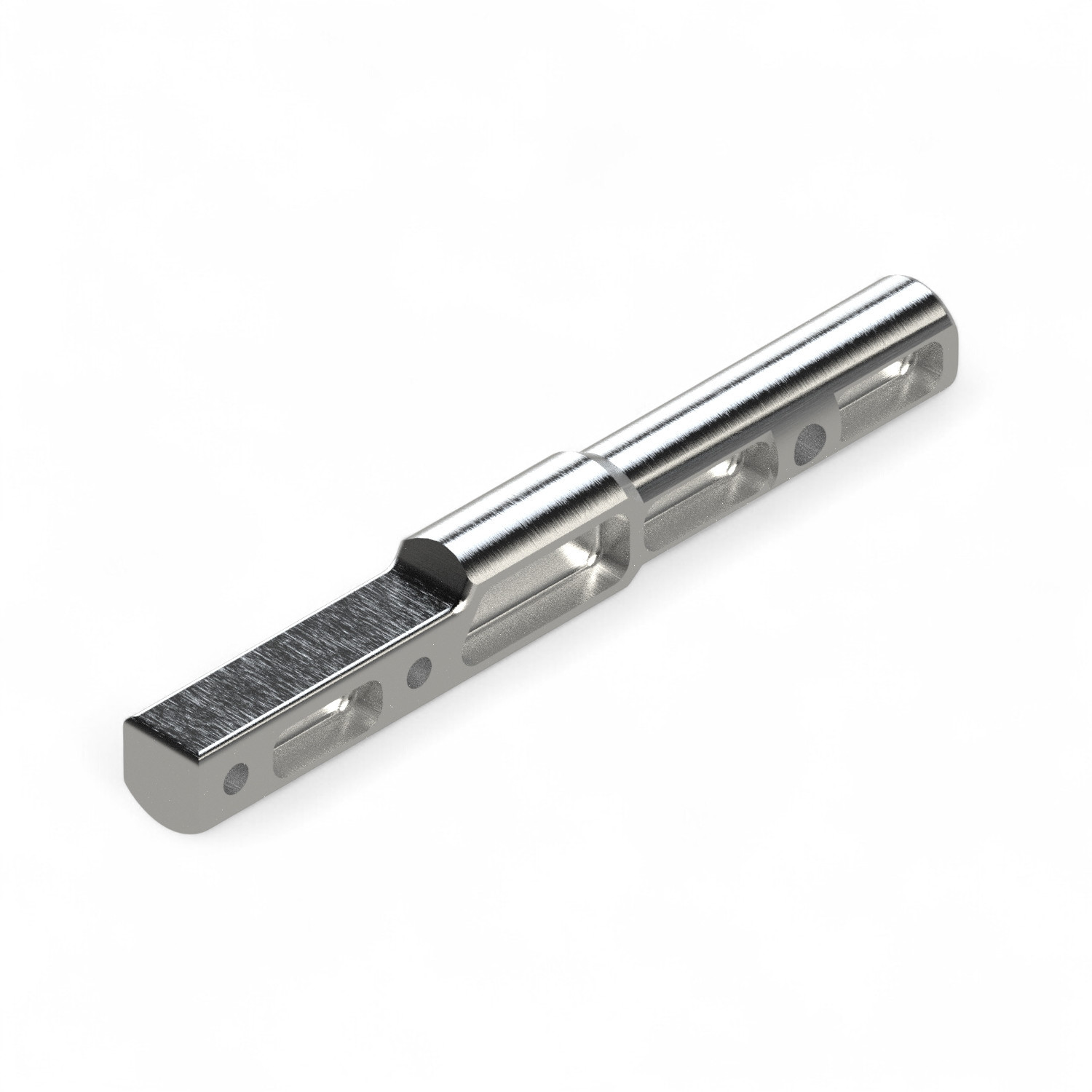

Application: Coupling element for 34 mm drive shafts in push-pull drive systems Material: Galvanized steel Function: Allows quick release of the shaft without removing adjacent pinion drives Installation: Screw-on – no welding required Use case: Ideal for maintenance and modular greenhouse systems Ridder Article No.: 419404 The Sleeve coupling P26.5 is a practical connector for 34 mm drive shafts in push-pull systems. It enables tool-free disconnection of the shaft, making it ideal for quick maintenance or replacement of pinion drives. Its galvanized finish ensures long-term corrosion resistance.

Application: Weld-on coupling for connecting pinion housing RSD 250 to 1″ or 5/4″ steel tubes Material: Galvanized steel Drive shaft: P26.5 mm with 20 mm flat sides Tube connection: Welded to 1″ steel shaft (Ø 33.5 mm) Length: 40 mm Ridder Article No.: 401635 The Weld/sleeve coupling P26.5 B1 L40 is used to connect flat-sided P26.5 mm drive shafts to 1″ steel tubes via welding. It is compatible with Ridder RSD 250 pinion housings and ensures a durable, corrosion-resistant connection in greenhouse systems.

Application: Lubrication of racks in greenhouse ventilation and shading systems Material: High-performance specialty grease Packaging: 5 kg tin container Application method: Applied with a brush Benefit: Ensures smooth operation and reduces wear Ridder Article No.: 182051 The AXT Rack Grease is a professional-grade lubricant for maintaining racks in greenhouse ventilation and shading systems. Its long-lasting formulation reduces friction and wear, ensuring reliable operation. Delivered in a practical 5 kg tin, it is applied manually with a brush.

Application: Direct drive for shading systems with push-pull tube actuation Material: Galvanized steel Gear type: Specially hardened pinions Compatibility: Designed for use with Ridder racks H40-3 Mounting: For integration into greenhouse shading systems Ridder Article No.: 500040 The Pinion Housing TU21-40 is used as a direct drive unit in greenhouse shading systems with push-pull tubes. Its galvanized steel body and hardened pinions ensure long-lasting performance and precise motion control. Compatible with Ridder rack systems such as H40-3.

Application area: Guidance of push rods in shading systems with push rod drive Material: Diabolo roller made of plastic, housing made of stamped sheet metal Installation: Rotatable plastic insert for flexible positioning Special features: Plastic fins for precise push rod alignment The Diabolo roll 27.32 Set 3 with variable mounting plate is designed for precise guidance of push rods in shading systems with push rod drive. Thanks to its rotatable plastic insert, it can be used in various mounting positions. The integrated plastic fins support accurate alignment of the push rod, ensuring stable and reliable operation.

Application: Extension for rack protection sets (3- or 4-part) Material: Aluminum tube (cut to length) Length: 500 mm (customizable) Mounting: Used with pinion housing protection and rack safety plugs Benefit: Extends the standard 1-meter rack protection tube The Safety Cover for Racks – Extension 50 cm is an add-on for the standard rack protection sets. It allows you to extend the aluminum protection tube beyond the default 1-meter length. Ideal for sensitive areas in greenhouses where injury or contamination must be avoided.

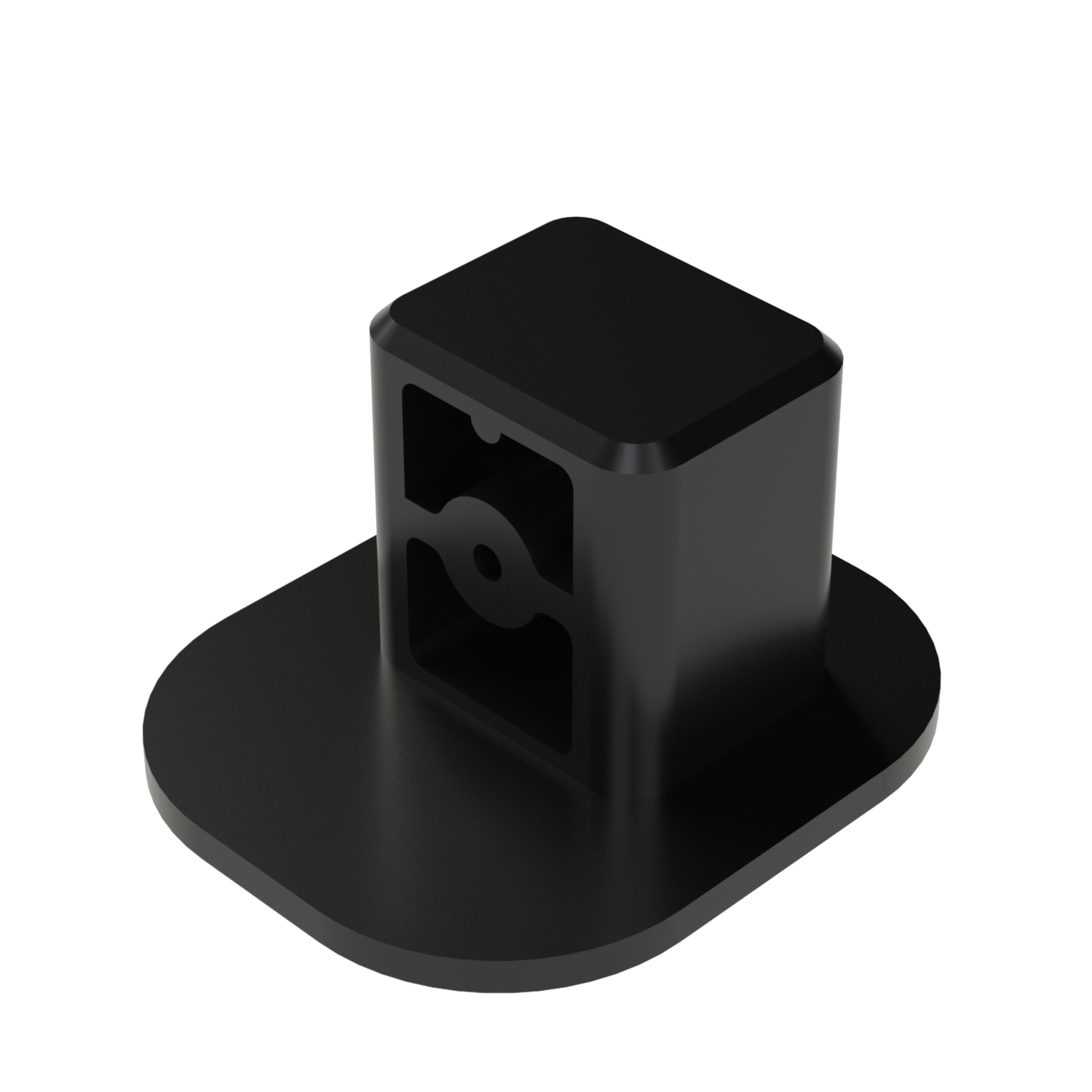

Application: Protection of rack-and-pinion systems at sensitive locations in greenhouses Material: Plastic Special feature: Single-sided socket for rack protection tube The pinion housing cover is used in combination with rack protection tubes to safeguard rack-and-pinion systems in areas where there is a risk of injury or where contamination from lubricants must be avoided. The plastic protective housing features a single-sided socket for the rack protection tube and offers a reliable solution for the safe operation of rack systems in greenhouse installations.

Function: Complements the diabolo roller in the stamped sheet metal housing Benefit: Improves the alignment of the push rod on the diabolo roller Protection: Prevents contact between the push rod and the screw/nut for steel pipe with the housing Application: Suitable for suspended and supported push rod systems Compatibility: For diabolo rollers with M6 axle screw The diabolo roller accessory enhances the guidance and positioning of the push rod in shading systems. It protects the housing from mechanical contact and ensures smooth operation—whether used in suspended or supported configurations.
