Poly houses and equipment

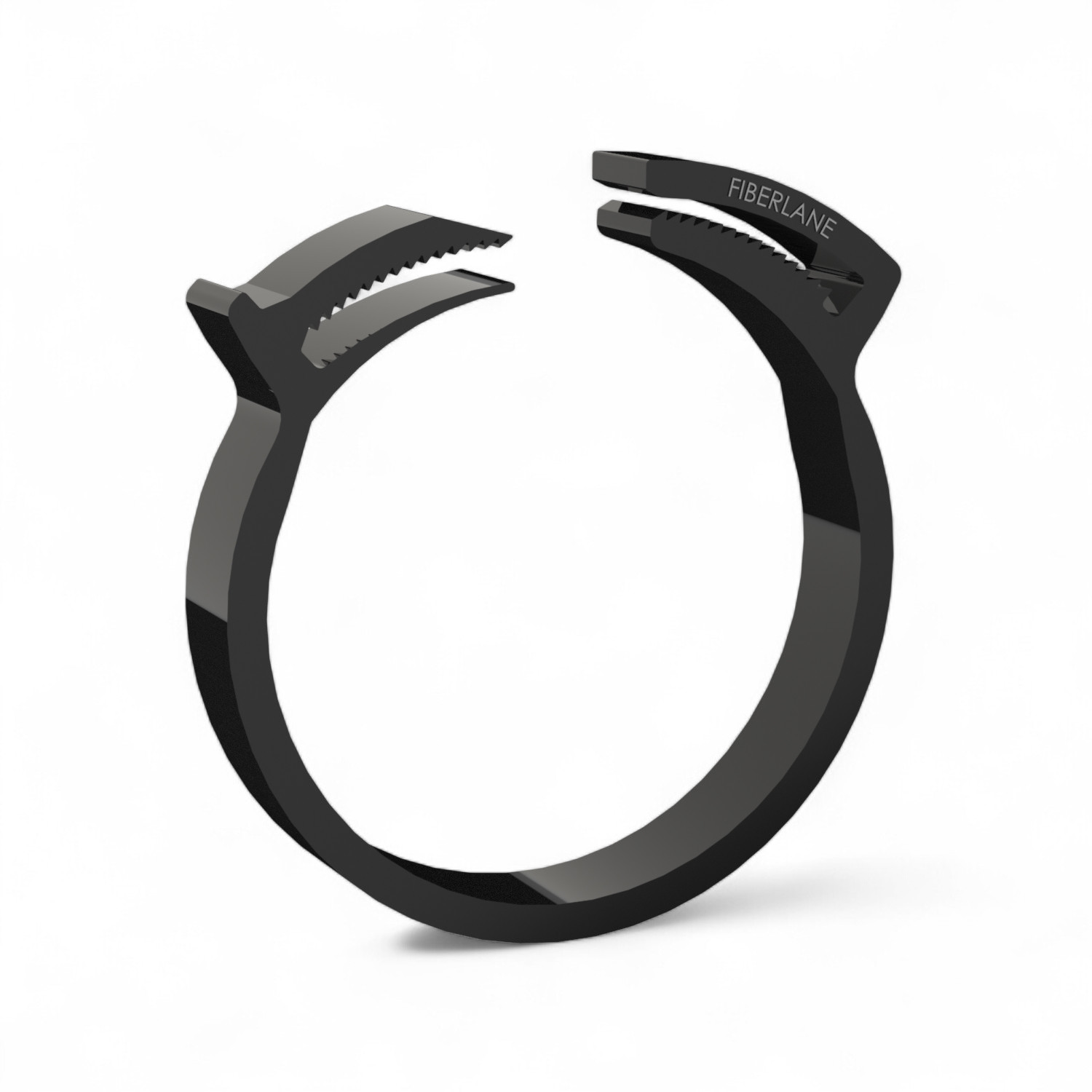

Application: Securing Air transfer gaskets with spiral hoses Material: Plastic Size: R60–65 / 13 mm wide Color: Black Feature: Corrosion-resistant and easy to install using pipe pliers Packaging Unit: 40 pcs Hose clamp, plastic - R60–65 is a reliable plastic alternative to traditional metal clamps for securing air transfer gaskets. Its corrosion-resistant material enables quick and gentle installation with pipe pliers, reducing damage risk during assembly. The proven plastic blend is UV-stabilized, making it an ideal choice for greenhouse environments exposed to sunlight and moisture. Its compact format ensures easy handling and durable functionality even in challenging conditions.

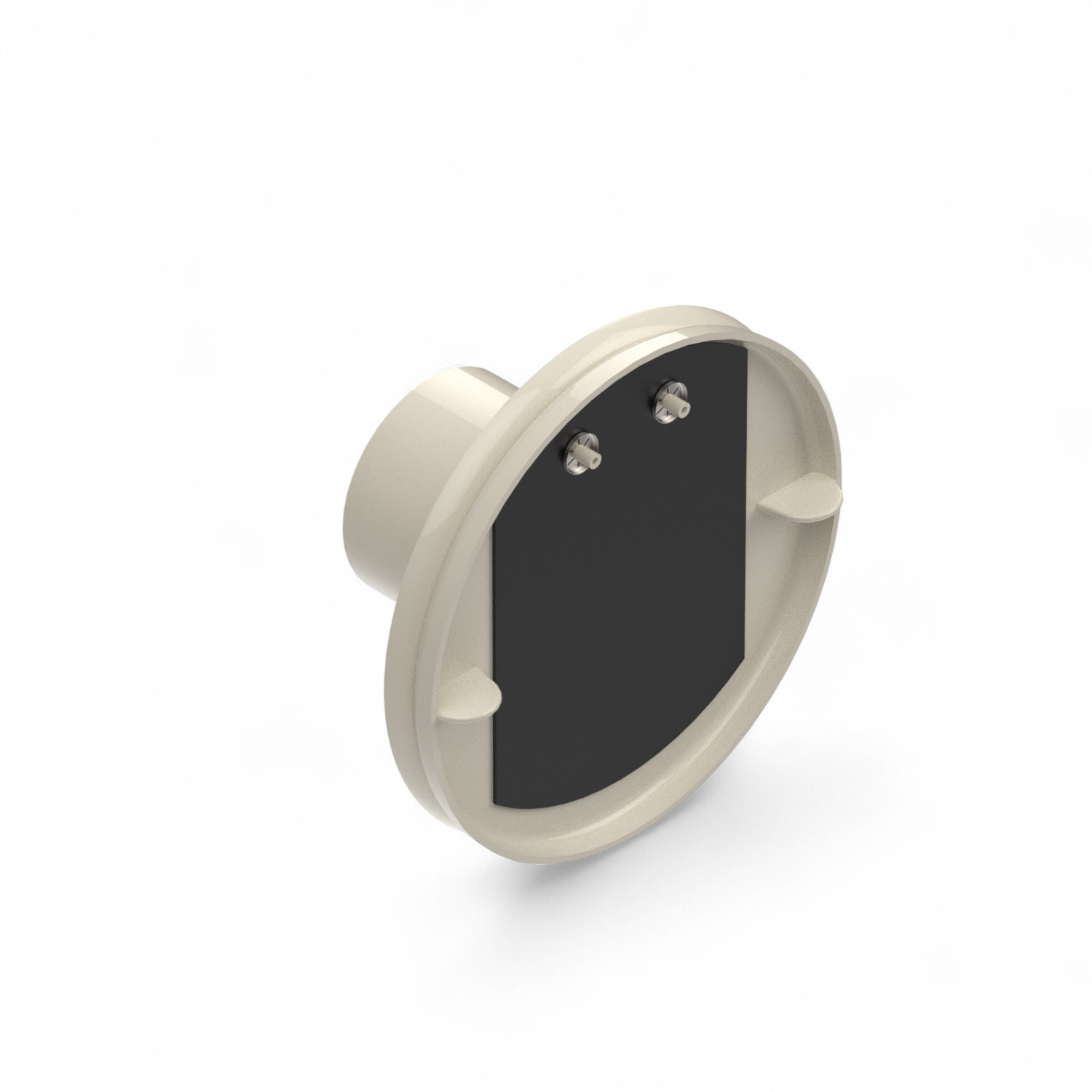

Application area: Connection between double film and spiral hose in greenhouse systems Material: UV-stabilized plastic blend for high durability Function: EPDM check valve prevents backflow of inflated air Installation: Secured using a hose clamp Special feature: Highly resistant to environmental influences The Film inflation valve incl. back flow flap ensures a reliable connection between the double film and spiral hose. The back-flow flap prevents the backflow of already inflated air, maintaining a stable air cushion. Thanks to the proven plastic blend, the valve is UV-stabilized and exceptionally durable. Installation is quick and secure using a hose clamp.

Application: Connection between inflation fan and film inflation valve in greenhouse structures Material: UV-stabilized plastic for high durability Length: 6 meters Feature: Can also be used to connect two film inflation valves Jumper hose D-63 mm, grey is an essential component for double-inflated film greenhouses. It connects the inflation fan with the film inflation valve or, alternatively, serves to link two air transfer gaskets. Thanks to its UV-stabilized plastic composition, the hose is especially durable and resistant to environmental conditions. Its 6-meter length allows for flexible installation in various greenhouse layouts.

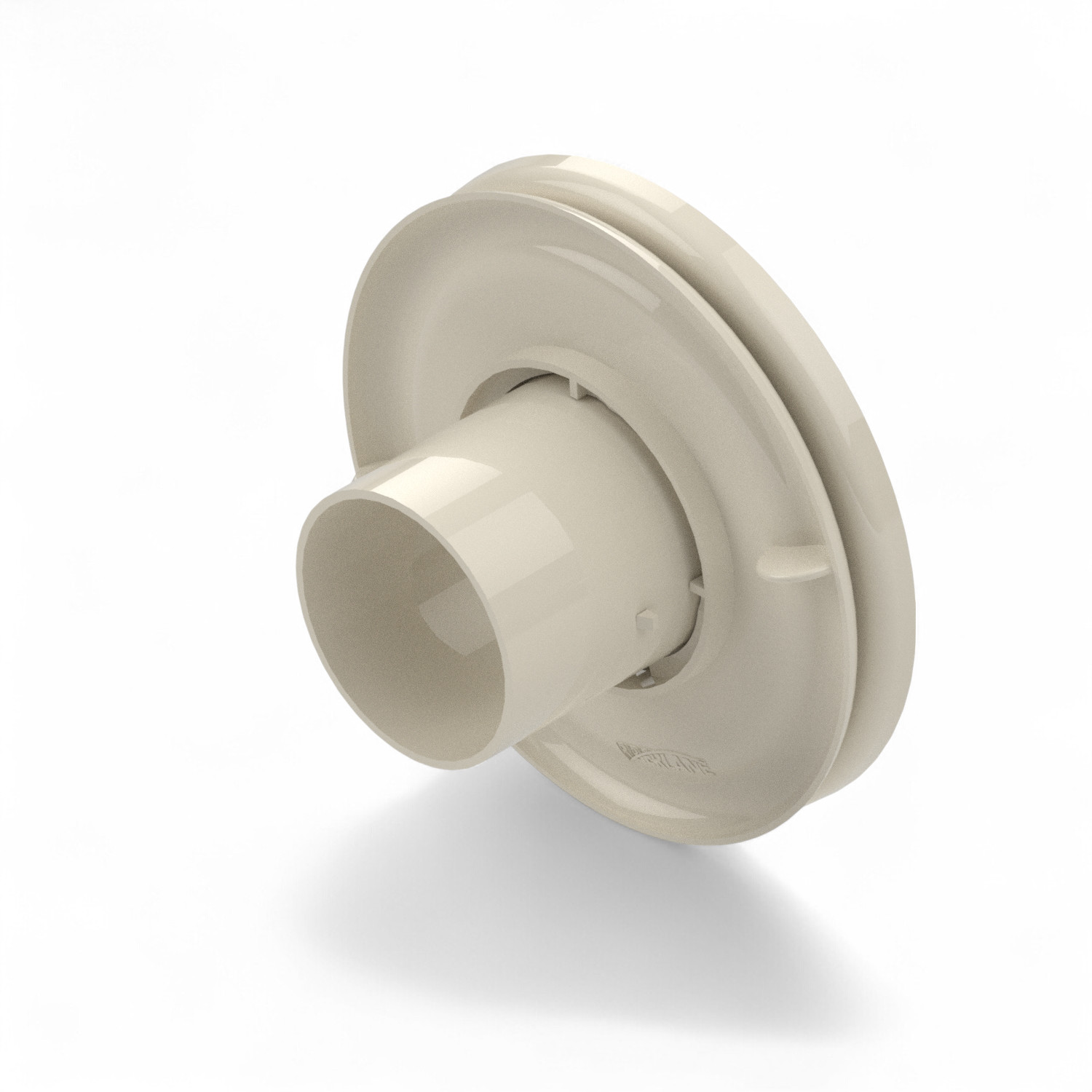

Application: Connection between double-layer film and spiral hose Material: UV-stabilized plastic compound for long service life Installation: Secured to the spiral hose using a hose clamp Feature: Optimized air guidance for plastic greenhouses Packaging Unit: 900 pcs, bulk in pallet carton Air transfer gasket is an essential component for greenhouses with double-layer film. It provides a reliable connection between the film and spiral hose, ensuring efficient air guidance for optimal insulation. Made of a durable, UV-stabilized plastic compound, the gasket is highly resistant to environmental stress. Installation is quick and secure with a hose clamp, ensuring firm attachment to the spiral hose. The bulk packaging unit of 900 pieces in a pallet carton is ideal for large-scale installations and professional use.

Application area: Securing single film to aluminum film clamping profiles Material: High-quality PVC for long-term use Length: 2 m Design: Specifically developed for single film Packaging unit: 100 pieces Special feature: Protects both film and profile during installation and removal The PVC clamping strip FN 19 is specially designed for securely fastening single film to aluminum film clamping profiles. Its robust construction ensures a reliable hold while protecting the materials during installation and removal. Thanks to its high-quality PVC design, it offers long service life and excellent durability. With a length of 2 m and a packaging unit of 100 pieces, this clamping strip is ideal for professional greenhouse construction applications.

Application area: Neutral-curing, elastic 1-component silicone sealant for special applications Properties: Strong adhesion to many substrates, such as Lexan twin-wall sheets Standards: Complies with DIN 18540 and DIN EN ISO 11600 Special features: Abrasion-resistant, streak-free, and paint-compatible Composition: Unblended, free from foreign plasticizers Quality testing: Tested according to ift guideline MO-01/1 and RAL-certified Transparent silicone for special applications is a high-quality sealant offering excellent adhesion and elasticity. It is particularly suitable for applications requiring reliable sealing. Thanks to its neutral curing properties, the silicone remains permanently elastic and resistant to external influences. It is abrasion-resistant and leaves no streaks, making it ideal for use on sensitive materials. This product meets high quality standards and has been tested according to relevant norms to ensure long-lasting and secure performance.

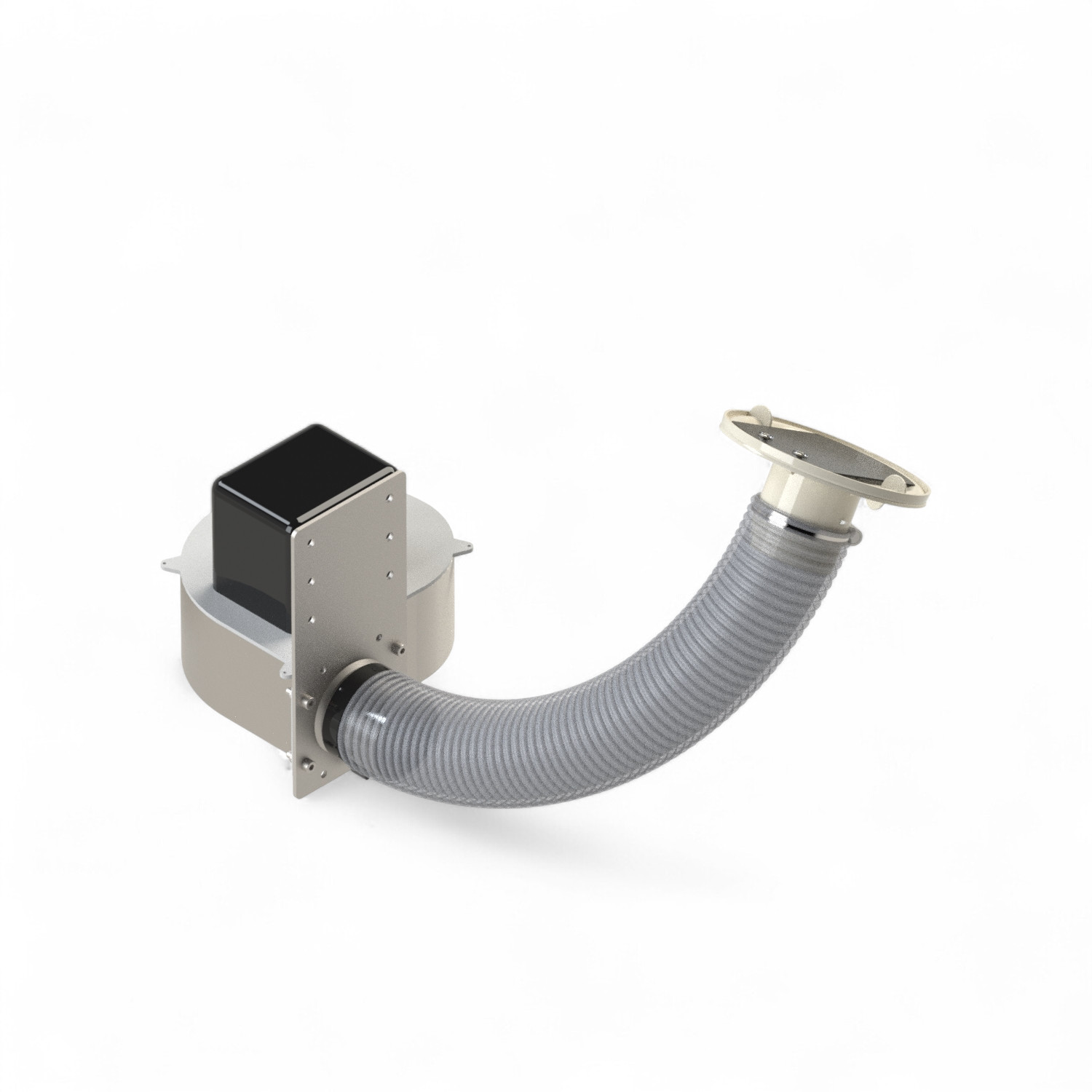

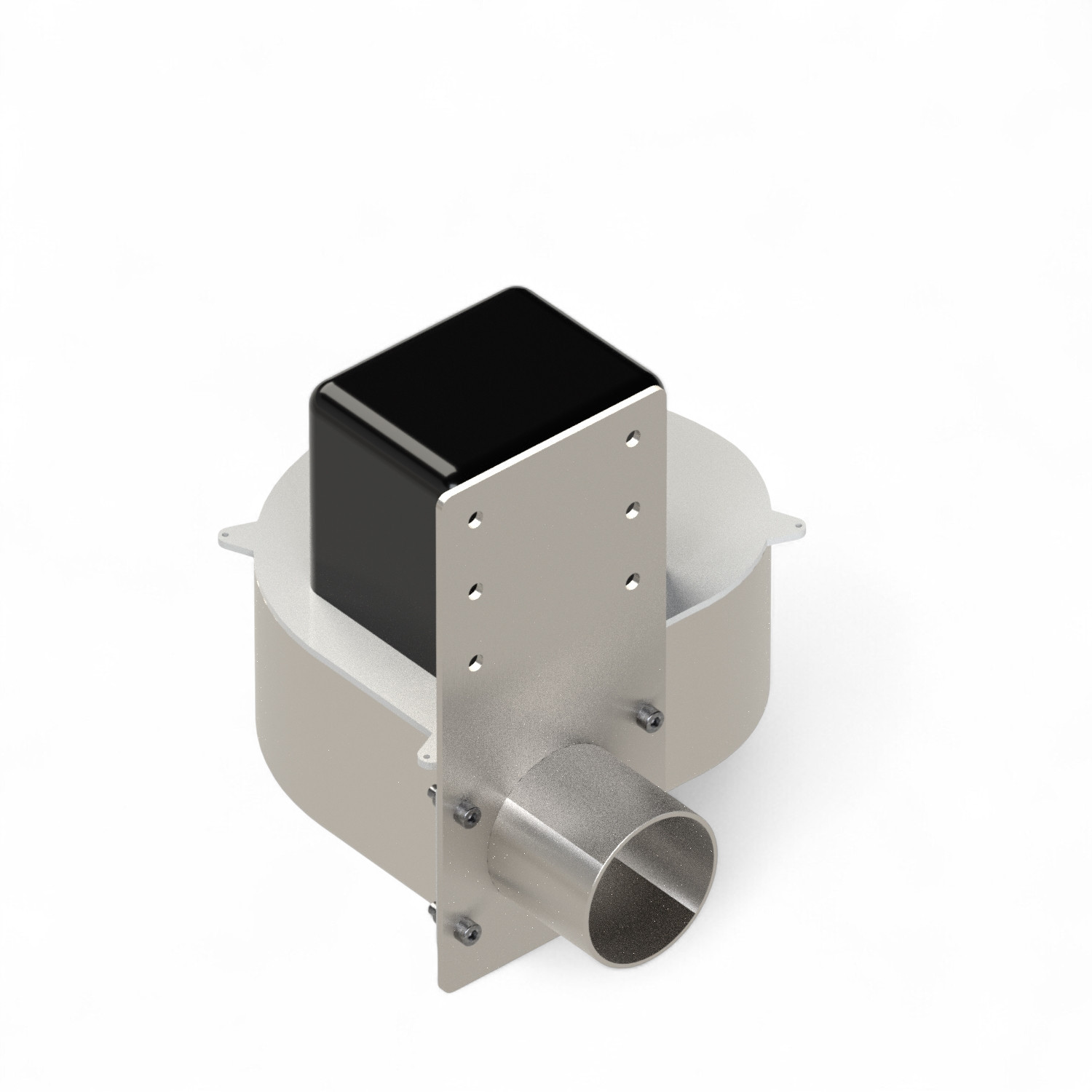

Application: For plastic greenhouses with double film covering Function: Reliably fills the double film with air for optimal insulation Performance: 190 m³/h for fast inflation Feature: Low maintenance and optimized for greenhouse climate conditions Inflation fan 190 m³/h with mounting plate is specifically designed for use in plastic greenhouses with double film coverings. It ensures reliable inflation of the air cavity between the films, providing optimal thermal insulation for the greenhouse interior. Thanks to its robust construction, the fan is highly resistant to greenhouse climate conditions and requires minimal maintenance. The airflow capacity of 190 m³/h enables quick inflation, ensuring efficient insulation performance in a short time. This fan is an ideal solution for greenhouse operators seeking a durable and efficient method for insulating their structures using double-layer film technology.

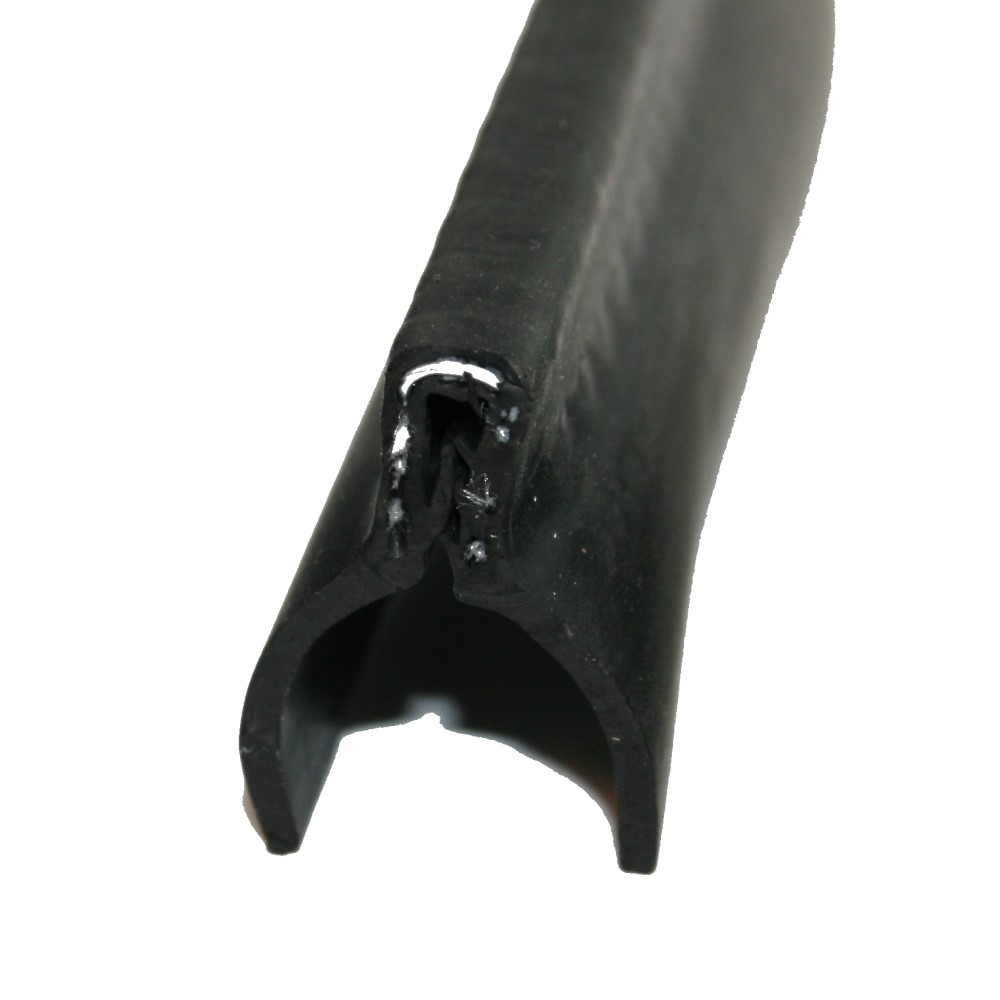

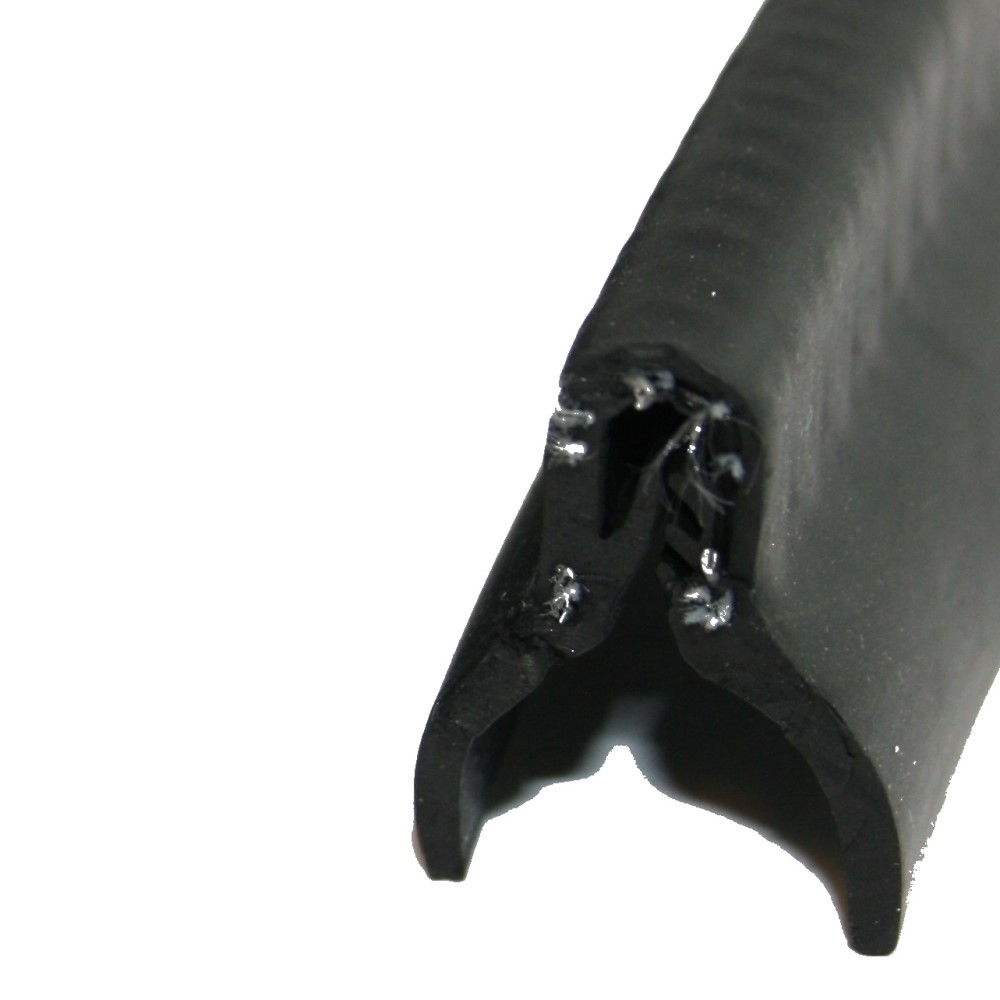

Application area: Sealing of glazing and twin-wall sheets in greenhouse structures Material: High-quality rubber for flexible and long-lasting use Function: Ensures reliable sealing and protects glazing putty and silicone from UV radiation Color: Black Packaging unit: Roll with 50 m length The Rubber clamping profile 37 mm – roll = 50 m is specifically designed for securing glazing in greenhouse structures. It provides a secure seal and protects glazing putty and silicone from UV exposure, ensuring long-term sealing performance. Thanks to its high-quality rubber material, the clamping profile offers excellent flexibility and durability, making it ideal for long-term use.

Application: Complete system for inflating double-layer film in greenhouse structures Components: 1x Inflation fan with mounting plate 1x Jumper hose D-63 mm, length 6 m 1x Air transfer gasket with back-flow flap 2x Hose clamps KST Ø60–65 Function: Ensures reliable air inflation for optimal insulation Feature: Low maintenance and optimized for greenhouse climate conditions Inflation system set for double-layer films is a convenient all-in-one solution for filling double-layer greenhouse films with air. The system ensures consistent internal air pressure, providing effective insulation to improve energy efficiency within the greenhouse. With all necessary components included—such as a powerful inflation motor, spiral hose, and a valve with integrated back-flow flap—the set is easy to install and designed for long-term, low-maintenance operation. Thanks to its durable materials and well-engineered construction, this system is an ideal choice for growers seeking a dependable and efficient method for insulating greenhouse structures.

Application area: Fastening of pre-fabricated fabric panels in drive-over arches or greenhouse structures Material: UV-stabilized polyester Breaking load: 50 kg Length: 100 m The Polyestercord 3 mm is a braided polyester rope specifically developed for fastening pre-fabricated fabric panels in drive-over arches or greenhouse structures. Thanks to its UV stabilization, it is particularly durable and resistant to weathering. With a breaking load of 50 kg, the cord provides high strength and is ideal for use in demanding environments. Each roll contains 100 m of cord, providing ample material for various applications.

Application: Fan speed controller for greenhouse ventilation Control: Simultaneous regulation of up to 3 fans Compatibility: Interface for climate computer for easy configuration Features: Robust and long-lasting construction Value: Cost-effective solution for fan management Controller for up to 3 fans – R3V-6A enables precise regulation of air circulation in greenhouses. With an integrated interface for climate computers, fan speed adjustments can be made conveniently and automatically. Specifically designed for greenhouse use, this device offers a durable and reliable way to manage multiple fans simultaneously.

Application: Efficient air circulation in greenhouses with low energy consumption in compliance with ErP directive Material: Rotor made of white-coated steel - blades made of high-performance composite material (black) Power Supply: 1~200–277 V, 50/60 Hz, 1210 W, 1.05–0.78 A Speed: 1100 rpm Protection Class: IP54, thermal class THCL 155 Installation: Mounting position H/Vo, integrated controller Motor Protection: Integrated active temperature management Bearing Quality: Long-life grease-sealed ball bearings Safety: Protective ring guard on both sides Key Features: Optimal temperature distribution in the greenhouse Serrated fan blades for improved airflow Reduced condensation and water droplets – lowers risk of plant diseases and fungal growth Long throw distance with low energy usage Optimized airflow due to special inlet ring Extremely quiet operation Speed control via potentiometer possible Lightweight yet sturdy construction All mounting parts made of stainless steel Weight: 11.20 kg ErP Data: Efficiency ηstatA: 56.6%, performance ratio Nist = 67.2 / Nsoll = 40 Fan ZN045 – Ecoline is specifically designed to provide efficient air circulation in greenhouses, delivering uniform temperature distribution while keeping energy consumption low in compliance with the ErP directive. The fan features serrated blades and a precision air inlet ring that optimize airflow and minimize moisture formation—reducing the potential for fungal and disease-related crop loss. Its low-noise design and lightweight construction make it suitable for continuous operation in demanding greenhouse conditions. Equipped with an integrated controller, active motor temperature management, and stainless steel mounting parts, this fan combines performance, safety, and durability. Speed adjustment via potentiometer is supported.

Application area: Sprayable corrosion protection paint for metal surfaces Material: High-quality zinc spray with excellent coverage Content: 400 ml per cartridge Packaging unit: 12 cartridges Special feature: Ideal for weld seams and metal components Zinc Spray – 400 ml is a premium corrosion protection paint specifically developed for treating metal surfaces. It provides a reliable protective layer against rust and is especially suitable for weld seams and metal components. Thanks to its excellent coverage, the spray ensures a uniform coating and long-lasting protection.

Our economical TGU speed controller can control simulaniously several fans, saving your time and effort!It is designed for use in the greenhouse and thus very robust and durable, can control up to three fans at the same time. It can be adjusted in no time, thanks to its interface for the climate computer .

Application area: Fastening greenhouse films to the supporting structure Material: Aluminum – lightweight, strong, and corrosion-resistant Length: 6,000 mm Installation: Screw-mounted via integrated mounting tab Function: Secures the film using two-part PVC locking strips Special features: Two-part design simplifies installation and removal Protects both film and profile during handling Ideal for permanent and secure film fastening The aluminum film locking profile with a length of 6,000 mm is a practical solution for securely fastening greenhouse films. It is screwed directly onto the greenhouse structure using the integrated mounting tab. The inserted film is secured with two-part PVC locking strips, creating a durable connection without damage. The well-thought-out design not only simplifies installation but also protects the materials during later removal—ideal for professional film greenhouses.

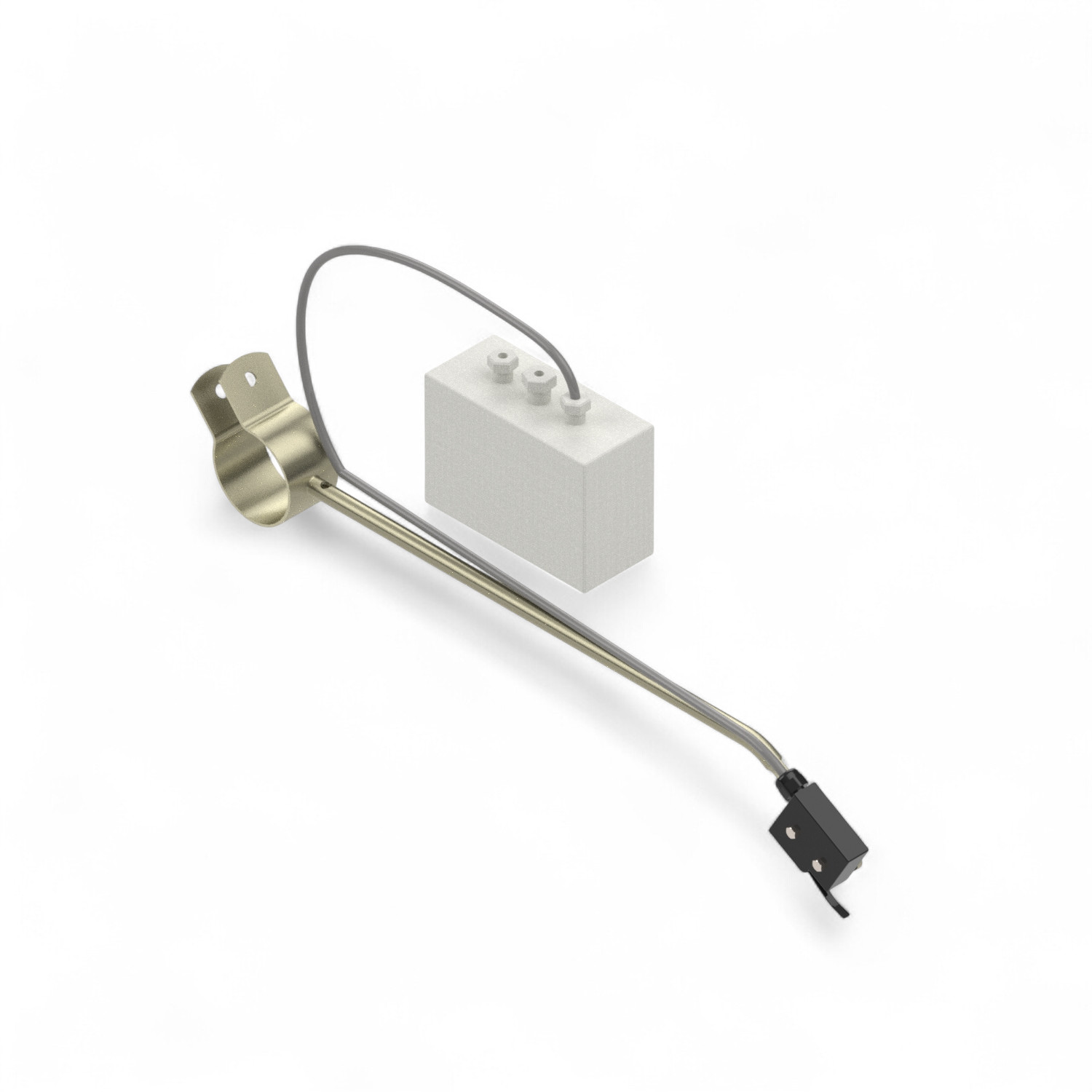

Application: Controls air inflation in double greenhouse films Voltage: 12 V low-voltage safety system Activation: Triggered by contact with inflated double film Features: Waterproof, insect-resistant, durable plastic housing Function: Operates independently of timers - responds to actual fill level Compatibility: Suitable for most commercial inflation systems - optimized for TGU systems The Limit switch for Poly Inflation Set enables precise and reliable control of air inflation in double greenhouse films. It activates upon contact with the inflated film and is built to withstand harsh greenhouse conditions. Ideal for use with TGU and other standard inflation systems.

Application: Air circulation in greenhouses for temperature and humidity regulation Features: Even temperature distribution throughout the greenhouse Serrated fan blades for efficient airflow Reduced condensation and dripping – lowers risk of plant diseases Long throw distance with low energy consumption Extremely quiet operation Special air intake ring for optimized airflow guidance Lightweight design with low overall weight Dual-sided finger guard for enhanced safety Speed control compatible with EPU-12 Fan CAF-45 50 Hz is specifically designed for greenhouse applications, providing even air distribution at low energy consumption. Its innovative design, featuring serrated blades and a dedicated intake ring, ensures optimal airflow while minimizing humidity and reducing the risk of fungal diseases. The fan operates with minimal noise and has a lightweight construction, making it ideal for continuous use in professional horticultural environments.

Application: Direct fastening of 6 mm twin-wall (LTC) panels onto substructures Function: Prevents panels from being pulled out by wind loads Additional Benefit: Acts as a sealing element Installation: Mounted using sheet metal screws (not included) Suitable For: Panel thickness of 6 mm Storm button for 6 mm twin-wall panels enables secure and permanent fastening of LTC panels directly onto substructures. It protects the panels against wind uplift and simultaneously seals the connection points against moisture and debris. Installation is carried out using standard sheet metal screws (not included). This solution is ideal for greenhouse construction and other light-permeable roofing systems where reliable mechanical hold and weather sealing are required.

Function: Potentiometer for external control of EC fans with 0–10 V input Power supply: +10 V Output signal: Continuously adjustable from 0–10 V via rotary knob Additional feature: Switching contact, e.g. for ON/OFF release Type: Potentiometer 10 kΩ (IP54)Resistance: 10 kΩ (±20 %) Switching contact: max. 1 A / 230 V AC Ambient temperature: max. 35 °C Emission: according to EN 61000-6-3 Immunity: according to EN 61000-6-2 Housing: ASA plastic, color similar to RAL 9010 Protection rating: IP54 (surface-mounted), IP44 (flush-mounted) Weight: 145 g The 10 kΩ potentiometer is used for manual control of EC fans via a 0–10 V input signal. The output voltage is continuously adjustable using a rotary knob. An additional switching contact allows for system release (ON/OFF). Suitable for surface or flush mounting, the device offers a reliable solution for ventilation control systems thanks to its robust design and IP54 protection rating.
