Application: Drive or ventilation cable for greenhouse systems Construction: 7×7 strands Diameter: 3 mm Length: 500 m Material: Galvanized steel Features: Flexible, corrosion-resistant, suitable for horticultural use The Aircraft cable galvanized 7×7 – Ø 3 mm – 500 m is ideal for use in greenhouse ventilation and shading systems. Its 7×7 construction ensures flexibility and strength, while the galvanized finish provides long-term corrosion protection.

Application: Connection of drive cable to 19 mm tube in shading systems Material: High-grade plastic for stable and durable fastening Feature: Increased distance between tube and fabric to prevent wear Installation: Clamping the wire rope with an Allen screw – clip attachment to the pipe Packaging Unit: 250 pcs Lead edge cable clip EXT 19 is specially designed for shading systems and enables a secure connection between the drive cable and a 19 mm tube. The EXT version provides an increased distance between the tube and the fabric, protecting the screen from direct contact with the drive cable. This significantly reduces wear and extends the service life of the system. An M4x16 ISK screw is required for installation (not included), ensuring the cable is tightly clamped for a reliable and durable fixation.

Application: Fastening 2 mm wire ropes Material: Galvanized steel for high durability The Oval Wire Rope Clamps 2 mm Galvanized provide a reliable solution for securely fastening 2 mm wire ropes. Manufactured from high-quality galvanized steel, they offer excellent strength and long-term corrosion protection.

Application: Drive cable for horizontal shading systems Construction: 7×7 strands Diameter: 3 mm Length: 500 m Material: Stainless steel (INOX) Features: Rustproof, durable, ideal for outdoor use - recommended with slip clamps The Aircraft cable INOX 7×7 – Ø 3 mm – 500 m is a stainless steel drive cable for greenhouse shading systems. It is especially suited for outdoor use and performs best when paired with slip clamp fittings. Built for strength and corrosion resistance.

Application: Supplement for slip joints in shading systems Material: High-strength spring steel for enhanced stability Feature: Up to 2 springs can be used per clamp Packaging Unit: 50 pcs Spring for slip joint (hard version) is used to optimize the clamping performance of slip joints in greenhouse shading systems. By default, each slip joint is supplied with a soft spring. If higher resistance is needed, the system can be upgraded with up to two hard springs.

This plastic pulley has a split bracket for attachment to already strained cables. In this case the pulley functions as a guiding roller. Being turned around the pulley can be suspended with the included S-hook. In this position the pulley can divert cables. Made of high impact resistant plastic Diameter 40 mm Can be used for cables with a diameter up to 7 mm With an axel made of stainless steel Comes with a S-hook for suspending

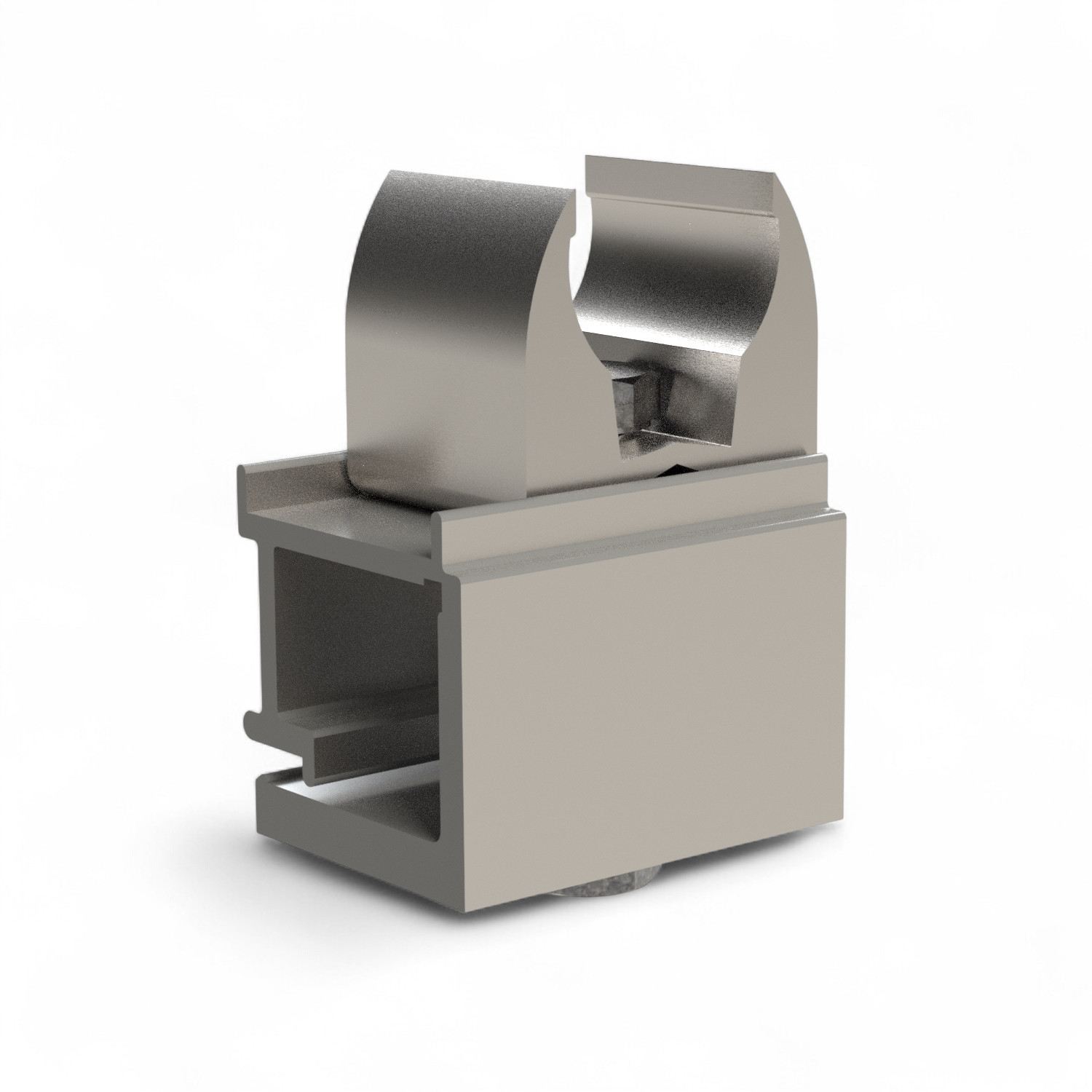

Application area: Component of the 19 mm aluminum clamping set Material: Aluminum for a stable and durable connection Special feature: Forms the connection between push rod and aluminum pipe in combination with table clamps The Alu-clamp /19 mm upper part is an essential component of the 19 mm aluminum clamping set. It is used in push rod drives and, in combination with table clamps, forms the connection between the push rod and the aluminum pipe. Thanks to its high-quality aluminum construction, it provides a reliable and long-lasting fastening solution for shading systems.

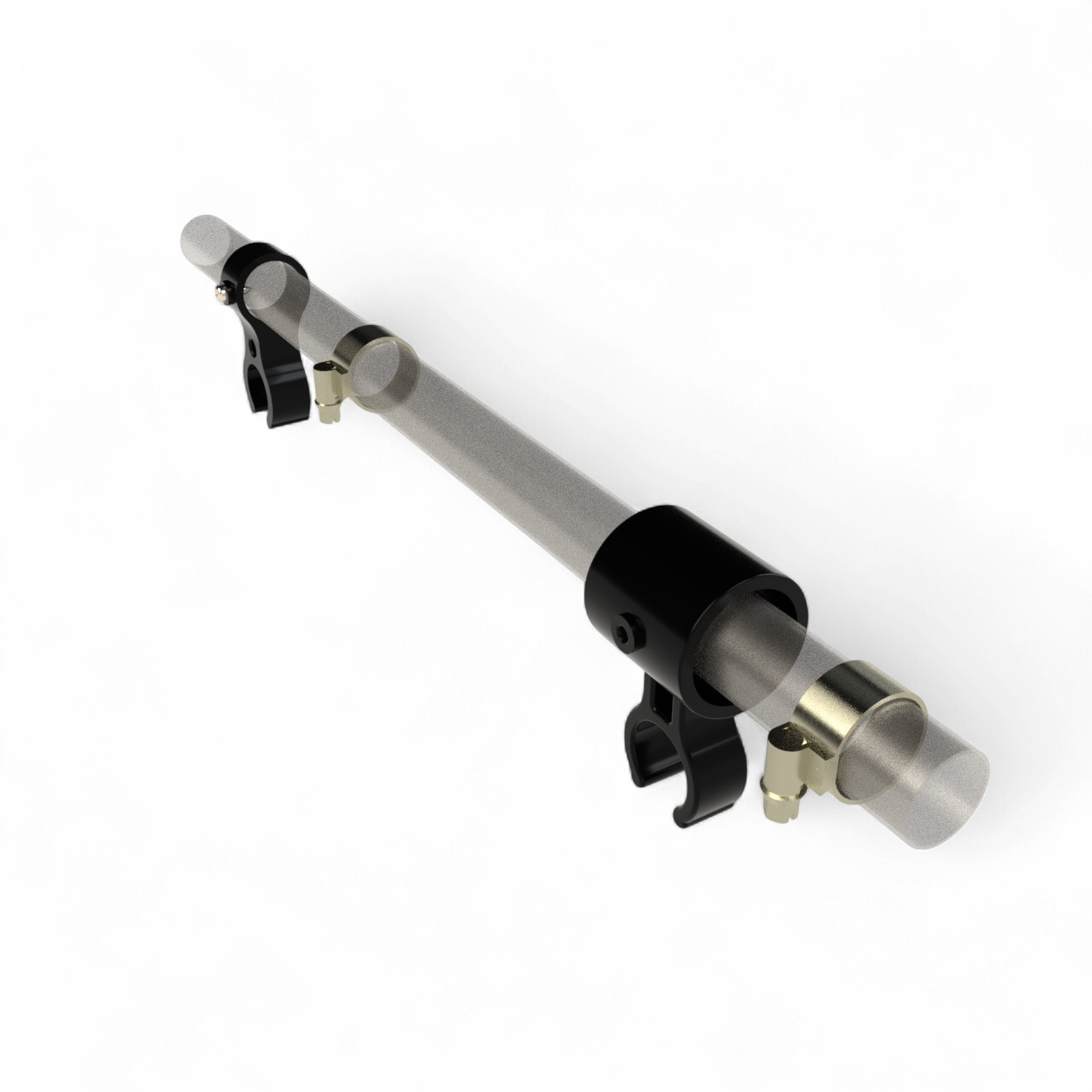

Application: Component of the TGU delay set for greenhouse shading systems Material: Steel Installation: Joins the 19 mm fabric guide tube with the 19 mm delay tube Packaging Unit: 200 pcs Cross clamp 19.20 is a key element in the TGU delay set used in shading systems. It securely connects the 19 mm fabric guide tube with the 19 mm delay tube of the delayed rail, ensuring stable and durable attachment.

Application: Connects 19 mm aluminum pipes to the drive cable in laid shading systems Material: Steel Feature: Integrated cloth retainer bracket supports fabric return movement Packaging Unit: 20 pcs Lead edge cable clip 19 – with cloth retainer is a robust steel connector used in laid shading systems for greenhouses. It enables secure fastening between 19 mm aluminum tubes and the drive cable. The integrated cloth retainer ensures reliable retraction of the shading fabric, maintaining consistent guidance and performance during system operation.

Application: Universal use in wire rope drives, stage construction, media systems, and fitness equipment Material: Impact-resistant plastic for high load capacity Diameter: 63 mm Bearing: Precision deep-groove ball bearing with dust protection Wire Diameter: Suitable for ropes up to 4 mm Axle Compatibility: Fits 6 mm axle bolts Pulley 62.52.6 is a highly versatile component made from durable plastic with a 63 mm outer diameter. It’s an ideal choice for various drive applications—from stage mechanics to fitness equipment and technical setups. Its sealed precision ball bearing ensures smooth, long-lasting operation. Designed for ropes up to 4 mm in diameter and compatible with 6 mm axle bolts.

Application area: Connection between drive wire rope and 19 mm pipe in shading systems Material: Plastic Installation: Secured with an M4 × 16 socket head screw to fix the wire rope The Lead edge cable clip S 19 mm enables a secure connection between the drive wire rope and the 19 mm pipe in shading systems. Installation requires an M4 × 16 socket head screw to firmly fix the wire rope.

Application area: Suitable for shading systems with cable drive Material: Impact-resistant plastic for high stability and durability Function: Structured winding of the wire rope via pre-grooved plastic surface Installation: Two-part design allows retrofitting onto the drive shaft Capacity: Holds up to 5.70 m of cable Suitable for: Wire ropes up to 3 mm in diameter and drive shafts of 34 mm The Cable drum 1″ – Type I enables structured winding of the wire rope thanks to the pre-grooved plastic surface, ensuring smooth cable movement within the shading system. Its two-part design allows for retrofitting onto the drive shaft. The two halves are securely fastened using the included axle screws, ensuring a firm hold on the shaft. The impact-resistant plastic protects the wire rope and extends its service life, making the cable drum ideal for long-term use.

Application area: Universally applicable pulley for shading systems and other uses Material: Impact-resistant plastic Diameter: 100 mm Maximum load capacity: 100 kg Ball bearing: Double ball-bearing with spacer ring Rope diameter: Suitable for ropes up to Ø 20 mm Bolt compatibility: Fits 10 mm bolts The Pulley 100 mm is made of impact-resistant plastic and is suitable for a variety of applications, including shading systems, stage construction, media technology, and garage door mechanisms. Thanks to its double ball-bearing design with spacer ring, it offers excellent stability and smooth rope guidance.

Thanks to two ball bearings, the 100 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The integrated spacers make it particularly easy to mount the pulley. No spacers or washers are needed.Impact resistant pulleyTwo ball bearings with integrated spacersLoad capacity: up to 350 kgMade in GermanyOuter diameter: 100 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 9 mm

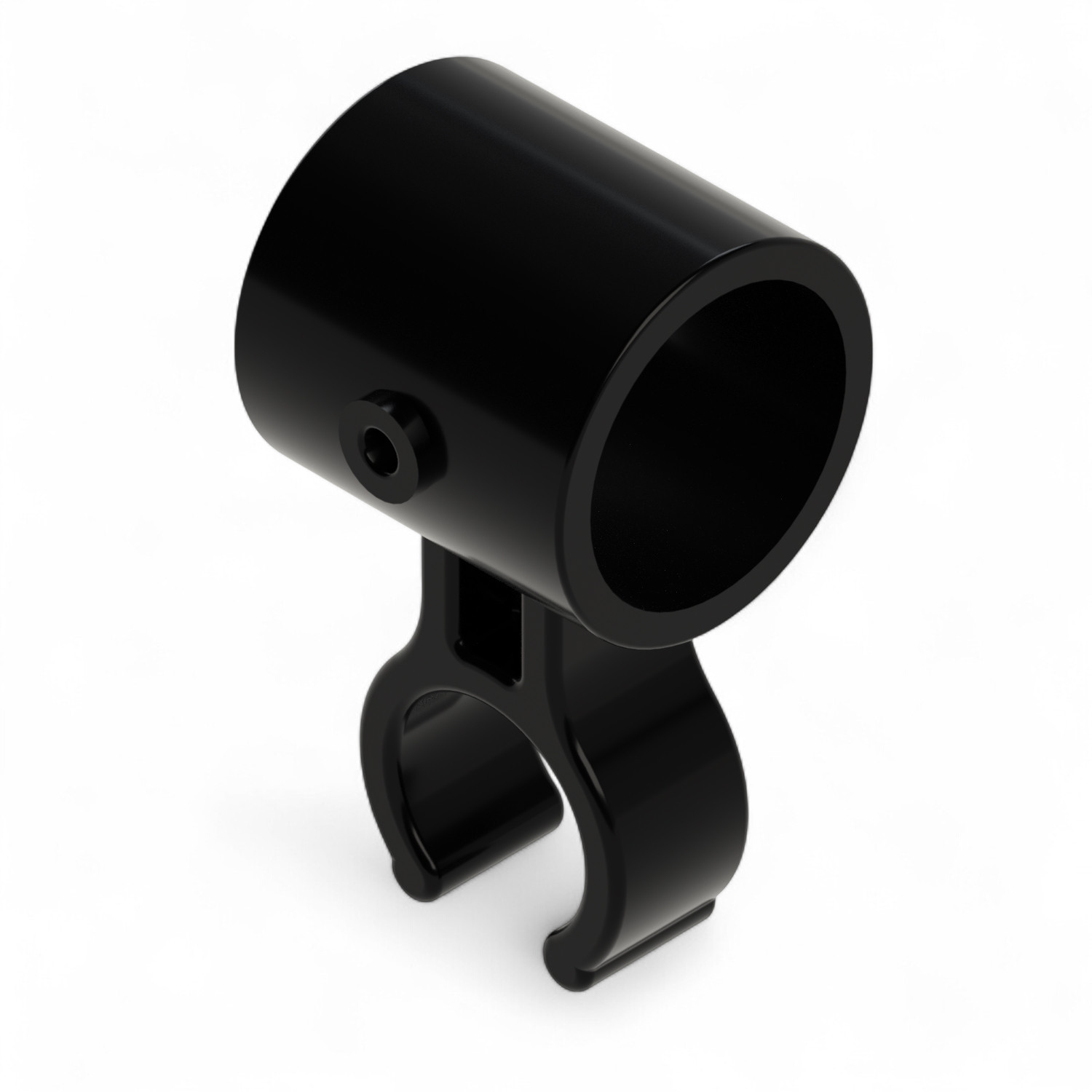

Application: Component of the TGU delay set for greenhouse shading systems Material: High-quality plastic Installation: Connects the fabric guide tube with the 19 mm delay tube Feature: Ensures secure and reliable attachment Packaging Unit: 100 pcs Slide 19–25 is a core component of the TGU delay set used in professional shading systems. It connects the fabric guiding tube to the 19 mm delay tube on the driven rail, forming a strong and durable mechanical bond. Made from premium plastic, this clip is resistant to environmental stress and ensures long-term performance. Its fit and flexibility contribute to the precise and smooth movement of shading fabrics, improving the overall reliability of the system.

Application: Connecting drive cables to 19 mm tubes Material: Aluminum for high strength and corrosion resistance Clamp Size: 26 mm for secure fastening Installation: Preassembled with M6 x 35 screw for easy setup Packaging Unit: 100 pieces The Aluminum Saddle Clamp 19 mm + 26 mm Clamp provides a proven solution for securely connecting drive cables to 19 mm tubes in shading and ventilation systems. Made from high-grade aluminum, it delivers excellent stability and corrosion resistance. The preassembled 26 mm clamp ensures reliable hold, while the included M6 x 35 screw enables quick and effortless installation—ideal for professional applications. With a packaging unit of 100 pieces, this saddle clamp is well-suited for large-scale installations and ensures lasting performance.

Thanks to two ball bearings, the 52 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The integrated spacers make it particularly easy to mount the pulley. No spacers or washers are needed.Impact resistant pulleyTwo ball bearings with integrated spacersLoad capacity: up to 180 kgMade in GermanyOuter diameter: 52 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 8 mm

Application: Cable drum for drive systems in greenhouse shading applications Material: Impact-resistant plastic for long service life Construction: Two-shell design enables retrofitting onto the drive shaft Feature: Pre-formed grooves ensure orderly winding and consistent cable tracking Suitable for: Cables up to 3 mm in diameter Capacity: Winding length up to 570 cm Installation: Secured with four included screws and a specialized set screw Packaging Unit: 12 pcs Cable drum 1&quot - – type II is engineered for precise cable guidance in shading systems using wire cable drives. The grooved inner surface maintains a structured winding pattern, minimizing overlap and wear. Its two-part plastic housing allows for post-installation on the drive shaft, with secure fixing via four enclosed mounting screws and a dedicated set screw. The impact-resistant material ensures reliable long-term operation and protects the cable from premature abrasion.

Application: Connection of drive cable to 19 mm aluminum tubes in shading systems Material: High-grade plastic for long-term use Function: Slip coupling with sliding clamp mechanism to protect drive cables Feature: Especially suitable for greenhouses with temperature-induced material expansion Packaging Unit: 100 pcs Slip joint type 1 – incl. 1 spring + cover for 19 mm aluminum tube provides a gentle yet secure connection between the drive cable and aluminum tubes in greenhouse shading systems. The integrated slip coupling with sliding clamp technology ensures flexible tension while minimizing cable stress. This mechanism is especially beneficial in greenhouses exposed to temperature-related material expansion, such as aluminum gutters. The slip joint is supplied with a spring and cover and is designed for easy installation.

Application: Suitable for shading systems with suspended fabric and gable drive configuration Material: Impact-resistant plastic for high stability Function: Ensures accurate positioning of the drive shaft Packaging Unit: 25 pcs Offset bearing for 50/50 mm square tube is specifically designed for use in greenhouse shading systems featuring suspended fabric and a gable-driven layout. It accurately positions the drive shaft and supports smooth rotational movement during operation. Made from durable, impact-resistant plastic, this component provides high load-bearing capacity and long-term performance, even under challenging greenhouse conditions. Installation requires an M8 x 70 bolt and one M8 Nyloc nut (not included).

Application: Guide pulley for tensioned wire ropes in greenhouses Material: Rugged construction for extended service life Installation: Not suitable for retrofitting on already tensioned wires Alternative: TGU Awning Pulley 40 for retrofitting Packaging Unit: 5 pieces The Awning Pulley with Hook is purpose-built to guide tensioned wire ropes within greenhouse structures. It ensures smooth movement and reliable support. Please note: this pulley is not suitable for post-installation on pre-tensioned cables. For retrofitting, we recommend the TGU Awning Pulley 40. With high-quality materials and robust design, this pulley provides the stability and longevity needed for continuous operation in professional greenhouse applications.

Application area: Shading systems with wire rope drive Material: Pulley made of impact-resistant plastic, bracket made of galvanized steel Diameter: 90 mm Installation: Screw-mounted to square pipes Compatibility: Suitable for square pipes 50 × 50, 50 × 55, 50 × 30, 50 × 25, 50 × 20 Special feature: Axle position adjustable in three heights The Pulley 90 UF with universal bracket is a versatile solution for shading systems with wire rope drive. It can be mounted to square pipes and allows flexible axle positioning in three height levels. The pulley is made of impact-resistant plastic, while the bracket is constructed from galvanized steel to ensure high stability and corrosion resistance. It is compatible with various square pipe sizes and suitable for wire ropes up to 8 mm in diameter. The 90 mm UF pulley is pre-mounted for both bottom and front installation, whereas the 90 mm H pulley is specifically designed for rear mounting. The pulley can be re-mounted later, allowing flexible adaptation to different applications.

Thanks to two ball bearings, the 90 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access. Impact resistant pulleyGalvanised steel bracketTwo ball bearingsLoad capacity: up to 350 kgMade in GermanyOuter diameter: 90 mmTotal height: 115,75 mmTotal width: 41 mmRope diameter: up to Ø 8 mmFastening with M8 srew / bolt

Application: Bolt-on cable pulley for square tubes in shading and ventilation systems Material: Pulley made from impact-resistant plastic - bracket made from zinc-plated steel Compatibility: Fits square tubes sized 50 x 50 mm Wire Diameter: Suitable for wire ropes up to 3 mm Installation: Mounted using M6 x 65 bolt and M6 nut Cable Pulley 90 with clamp 50.50 is a robust and reliable solution for cable guidance in greenhouse shading and ventilation systems. It is bolted directly onto square tubing and aligns precisely with the wire rope for smooth operation. The pulley is crafted from durable, impact-resistant plastic, while the bracket is made of zinc-plated steel, providing excellent strength and corrosion protection in greenhouse environments.
