Application: Guiding push rods in greenhouse shading and ventilation systems with push-rod drive Material: High-quality plastic for long-term use Packaging Unit: 1000 pcs Diabolo Roller 27.32 is designed for precise guiding of push rods in greenhouse shading and ventilation systems that use push-rod drive mechanisms. Its durable plastic construction ensures high resistance to wear and a long service life, even under continuous load and environmental stress.

Application: Linking fabric guidance tubes to push rods in shading systems Material: Precision-cast aluminum for maximum durability and resistance to corrosion Installation: Serves as mounting point for ventilation pushers on 32 mm steel tubes Highlight: Sturdy build ensures a secure and lasting connection Packaging Unit: 150 pieces The Clamp Piece for Shading + Ventilation ø 32 mm connects fabric guide elements to push rods in greenhouse shading systems. It also functions as a mounting interface for ventilation pushers on 32 mm steel tubing. Crafted from tough, corrosion-resistant aluminum, this clamp offers a long-lasting solution tailored to the needs of commercial installations.

Application: Push rod support for greenhouse ridge ventilation systems Material: Aluminum housing with plastic diabolo rollers Installation: Mounted using M8 screw directly onto the greenhouse structure Highlight: Adjustable rollers for flexible positioning Compatibility: Fits both 27 mm and 32 mm pipes The Roll support universal for 27+32 tubes is a versatile solution for supporting push rods in greenhouse ridge ventilation systems. Its rugged aluminum body and high-quality plastic diabolo rollers ensure smooth, long-lasting guidance. Adjustable rollers allow for precise alignment with either 27 mm or 32 mm pipes. Installation is quick and secure using an M8 screw directly into the greenhouse frame. By delivering precise rod tracking, this roller housing contributes to the consistent and reliable movement of ventilation elements—making it an essential part of professional greenhouse infrastructure.

Application: Connecting fabric guides to push rods in shading systems Material: Aluminum for high strength and corrosion resistance Installation: Serves as a mounting point for ventilation pushers on 27 mm steel tubes Packaging Unit: 150 pieces The Clamp Piece for Shading + Ventilation ø 27 mm is an essential component in shading systems. It forms a secure link between fabric guide tubes and push rods, while also acting as a mounting base for ventilation pusher units on 27 mm steel tubing. Its high-quality aluminum construction offers excellent stability and corrosion protection, ideal for long-term use in professional greenhouses. The clamp piece features a straightforward mounting process and robust design, ensuring reliable functionality over time.

Application area: Professional rack grease for treating racks in greenhouse ventilation and shading systems Usage: Annual maintenance with this grease ensures long-term, smooth operation of rack drives Application method: Can be applied to the racks using a brush Packaging: Supplied in a cartridge suitable for 400 g grease guns Packaging unit: 24 cartridges Rack grease 400 g is specially developed for maintaining racks in greenhouse systems. It provides optimal lubrication and extends the service life of rack drives. Thanks to its easy brush-on application, the grease can be distributed evenly across the rack surface. This product is ideal for professional use and helps maintain the efficiency and reliability of ventilation and shading systems.

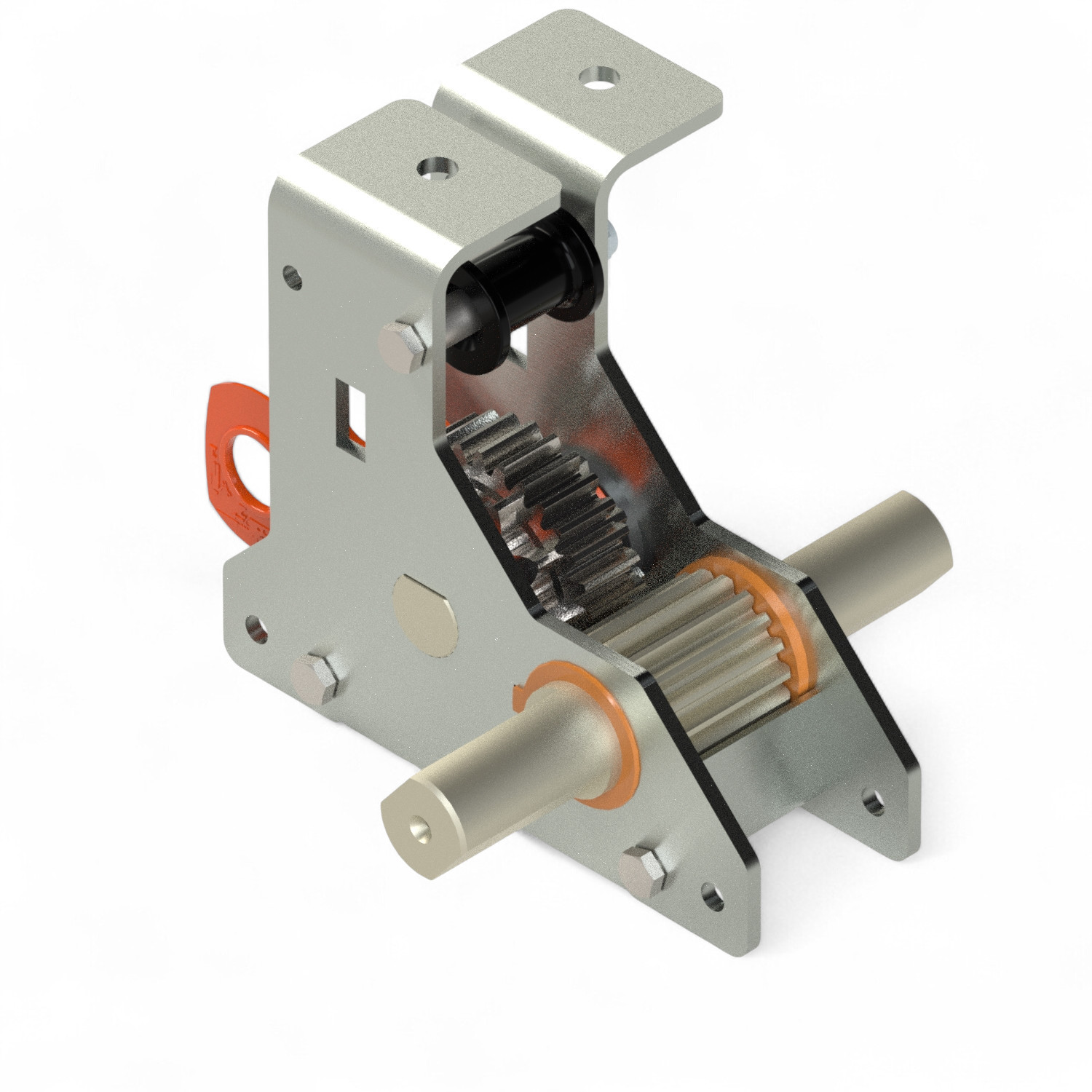

Application: Gear reduction drive for push-pull shading systems Material: Galvanized steel with specially hardened pinions Mounting: Standard with mounting straps for trusses on the right side (left or both sides available on request) Benefit: Enables very close mounting to the greenhouse truss Packaging unit: 12 pieces Ridder Article No.: 500280 The Pinion Housing RSD 250-40/RR is a robust drive unit for push-pull shading systems. Its compact design allows for tight installation near the truss, and the hardened pinions ensure long-lasting performance. Available with custom mounting configurations upon request.

Application area: Used in greenhouses with push rod drive systems Material: Robust construction for reliable performance Function: Regulates track width when truss spacing is narrow Special feature: Accommodates 27 mm and 32 mm push rod pipes The Spring delay element Ø 27–Ø 32 is used in greenhouses with push rod drive systems, especially when the final truss spacing is narrow. It serves as a mount for push rod pipes with diameters of 27 mm or 32 mm and helps regulate the track width. Thanks to its robust design, the spring delay element ensures reliable operation and smooth movement of the push rods.

Application area: Guidance of push rods in shading systems with push rod drive Material: Diabolo roller made of plastic, housing made of galvanized steel Installation: Secure fastening through robust housing design Special feature: Optimal guidance of push rods for smooth movement The Diabolo roll 27.32 with stamped sheet housing is a proven solution for guiding push rods in shading systems with push rod drive. It ensures precise and smooth movement of the push rods, contributing to the optimal performance of the system. The roller is made of high-quality plastic, while the housing is crafted from durable stamped sheet steel to ensure maximum stability and longevity. Its thoughtful design allows for secure installation and reliable guidance of the push rods. Thanks to its robust construction and precise manufacturing, the diabolo roller is ideal for use in professional greenhouse installations.

Application: Mounting 16 mm racks to Ø 32 mm round tubes Material: Galvanized steel Compatibility: Ridder RackDrive 700 and TRN rack drives Mounting: Bolt-and-nut connection Alignment: Rack centerline aligns with tube centerline Ridder Article No.: 416490 The Coupling Plate Ridder – 16 mm / Ø 32 mm is used to securely connect Ridder rack drives to round tubes. Its precise alignment ensures optimal force transmission and long-lasting performance in greenhouse ventilation systems.

Application: Coupling unit for connecting rack PH 40-3 to Ø 27 mm push-pull tubes in shading systems Material: Zinc die-cast, galvanized Rack compatibility: PH 40-3 Tube compatibility: Ø 27 mm push-pull tube Ridder Article No.: 500208 The Coupling unit PH40 B27x1.5 ST connects Ridder rack PH 40-3 to a 27 mm push-pull tube. Its galvanized zinc die-cast construction ensures durability and corrosion resistance in greenhouse drive systems.

Application: Lift belt guidance roller for 20 mm belts Material: High-quality plastic for long-term use Function: Ensures precise and even belt movement Diaboloroll for 42 mm Tube – Black is specifically engineered for guiding 20 mm lift belts. It supports smooth and uniform motion while preventing belt misalignment or jamming. Its durable plastic construction ensures high resistance and long service life—ideal for continuous operation in demanding setups.

Application: Lubrication of sliding bearings and TU rack drives Material: High-performance lithium complex grease with PTFE (Teflon) Temperature range: –20 °C to +150 °C Water resistance: Yes Packaging: 1-liter bottle (flacon) Ridder Article No.: 182056 The AXT Grease – 1 L Bottle is a premium lubricant developed for Ridder TU rack drives and sliding bearings. Its PTFE-enhanced formula ensures long-lasting, water-resistant lubrication and reduces wear even under demanding conditions.

Application: Weld-on sleeve coupling for connecting P26.5 mm drive shafts to 5/4″ steel tubes Material: Galvanized steel Drive shaft: P26.5 mm with 20 mm flat sides Tube connection: Welded to 5/4″ steel shaft (Ø 42 mm) Length: 44 mm Ridder Article No.: 421978 The Weld/sleeve coupling P26.5 B5/4″ ST L44 mm is used to connect flat-sided P26.5 mm drive shafts to 5/4″ steel tubes via welding. Its galvanized finish ensures durability and corrosion resistance in greenhouse environments.

Application: Lubrication of racks in greenhouse ventilation and shading systems Material: High-performance specialty grease Packaging: 400 g cartridge (for grease guns) Benefit: Reduces wear and ensures smooth, long-lasting operation Ridder Article No.: 182058 The RIDDER AXT Grease – 400 g Cartridge is designed for easy application with standard grease guns. It provides reliable, long-term lubrication for rack systems in greenhouses, protecting against corrosion and mechanical wear.

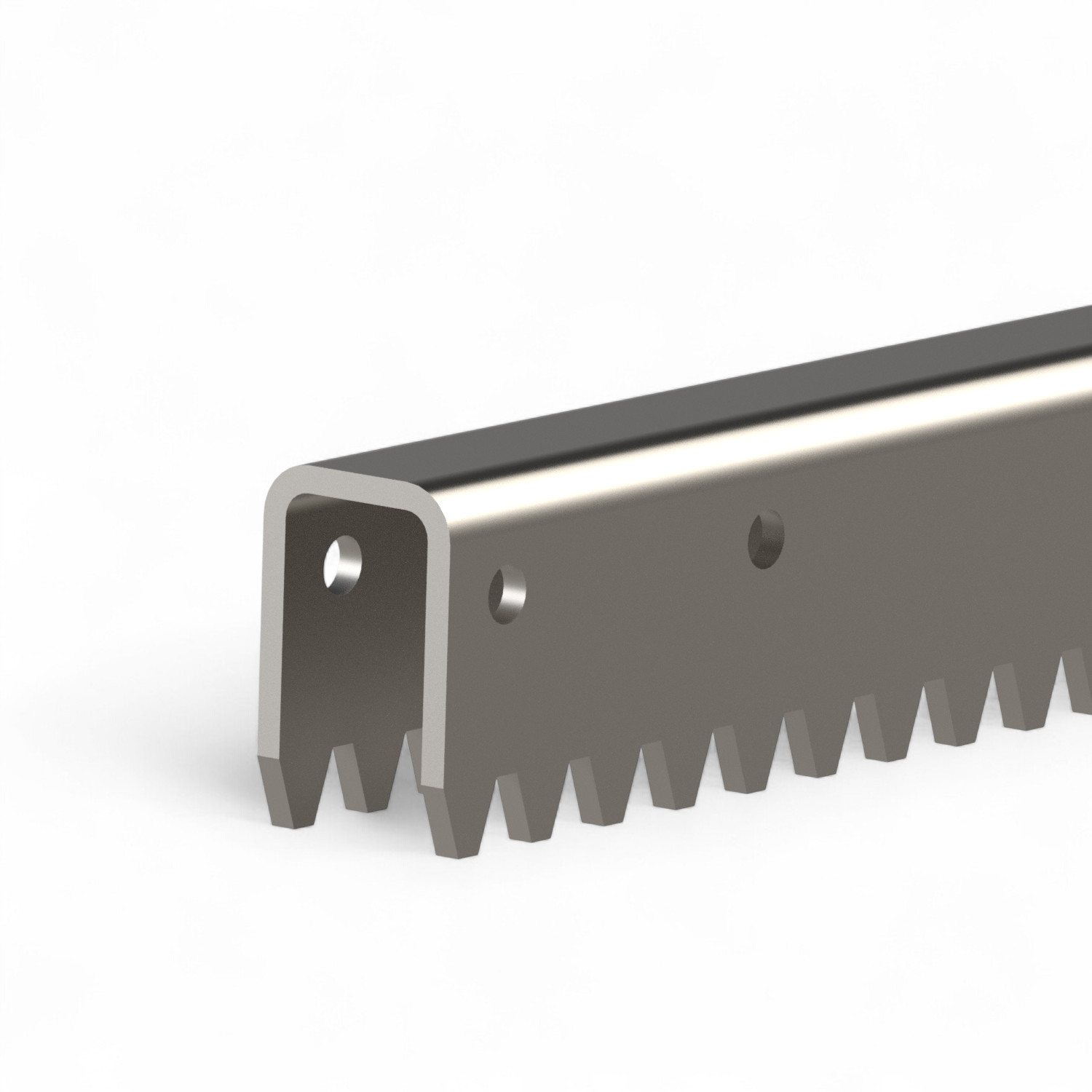

Application: Drives for push-pull shading systems in greenhouses Material: Galvanized steel Length: 4147 mm Compatibility: Ridder RSD250 and TU21-40 pinion housings Ridder Article No.: 413961 The Rack H40-3 / L4147 mm is the longest of the three variants and is ideal for large-scale greenhouse shading systems. Its robust construction and compatibility with Ridder drives ensure long-lasting performance and precise motion control.

Application: Coupling element for 34 mm drive shafts in push-pull drive systems Material: Galvanized steel Function: Allows quick release of the shaft without removing adjacent pinion drives Installation: Screw-on – no welding required Use case: Ideal for maintenance and modular greenhouse systems Ridder Article No.: 419404 The Sleeve coupling P26.5 is a practical connector for 34 mm drive shafts in push-pull systems. It enables tool-free disconnection of the shaft, making it ideal for quick maintenance or replacement of pinion drives. Its galvanized finish ensures long-term corrosion resistance.

Application: Guiding push rods in shading systems with push-drive mechanisms Material: Plastic diabolo roller with zinc-coated steel housing Side Guidance: Integrated side disc for optimal push rod alignment Packaging Unit: 50 pcs Diaboloroll 27.32 with Stamped Steel Housing and Side Guide is tailored for greenhouse shading systems utilizing push rod drives. It ensures precise guidance and smooth movement of rods through consistent lateral alignment. The built-in side disc helps maintain correct positioning of the push rod, ensuring stable and reliable operation. The rugged stamped steel housing adds durability and resistance in demanding greenhouse environments.

Application: Weld-on coupling for connecting pinion housing RSD 250 to 1″ or 5/4″ steel tubes Material: Galvanized steel Drive shaft: P26.5 mm with 20 mm flat sides Tube connection: Welded to 1″ steel shaft (Ø 33.5 mm) Length: 40 mm Ridder Article No.: 401635 The Weld/sleeve coupling P26.5 B1 L40 is used to connect flat-sided P26.5 mm drive shafts to 1″ steel tubes via welding. It is compatible with Ridder RSD 250 pinion housings and ensures a durable, corrosion-resistant connection in greenhouse systems.

Application: Lubrication of racks in greenhouse ventilation and shading systems Material: High-performance specialty grease Packaging: 5 kg tin container Application method: Applied with a brush Benefit: Ensures smooth operation and reduces wear Ridder Article No.: 182051 The AXT Rack Grease is a professional-grade lubricant for maintaining racks in greenhouse ventilation and shading systems. Its long-lasting formulation reduces friction and wear, ensuring reliable operation. Delivered in a practical 5 kg tin, it is applied manually with a brush.

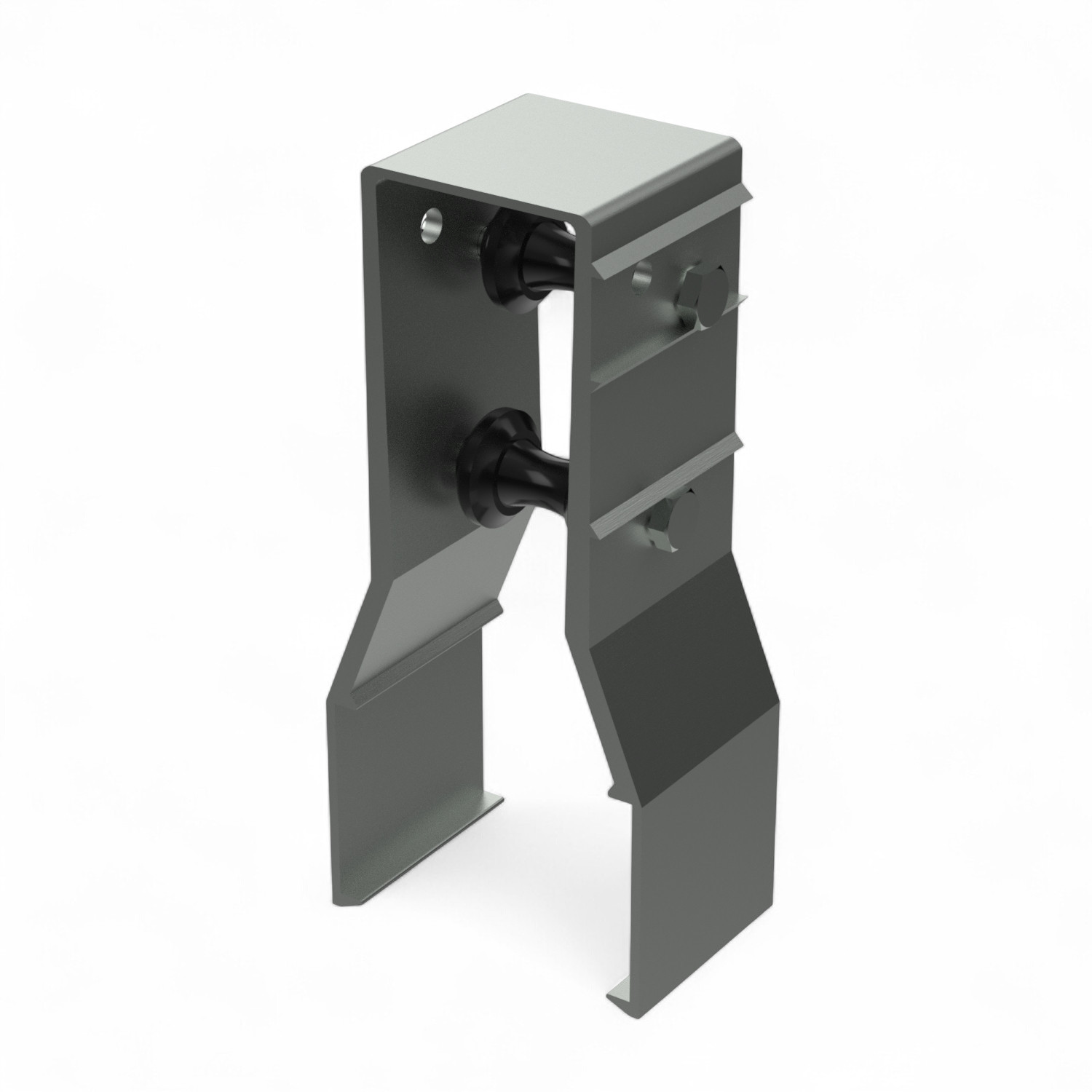

Application area: Push rod support for truss ventilation in greenhouses with trusses Material: Aluminum housing with plastic diabolo rollers Compatibility: Suitable for trusses with a strap dimension of 60 × 40 mm Pipe sizes: Compatible with 27 mm and 32 mm pipes Installation: Simple push-on mounting onto the truss profile The Roller housing 60×40 serves as a reliable push rod support for truss ventilation in greenhouses with trusses. It is compatible with trusses measuring 60 × 40 mm and is simply pushed onto the profile. Thanks to its flexible diabolo rollers, the housing accommodates pipes of different diameters (27 mm and 32 mm). The robust aluminum and plastic construction ensures long-lasting and stable performance.

Application area: Guidance of push rods in shading systems with push rod drive Material: Diabolo roller made of plastic, housing made of stamped sheet metal Installation: Rotatable plastic insert for flexible positioning Special features: Plastic fins for precise push rod alignment The Diabolo roll 27.32 Set 3 with variable mounting plate is designed for precise guidance of push rods in shading systems with push rod drive. Thanks to its rotatable plastic insert, it can be used in various mounting positions. The integrated plastic fins support accurate alignment of the push rod, ensuring stable and reliable operation.

Application: Mounting the gear rack below the fabric in shading systems with push rod drive Material: Galvanized steel for high corrosion resistance Size: 160 mm Spacing: 160 mm between screen profile and gear rack Packing unit: 30 pieces Features: Robust and durable quality The Adaptor for rack 160 mm – Welded and Galvanized allows for stable installation of the gear rack below the fabric in shading systems with push rod drive. The galvanized steel provides high corrosion resistance and longevity. This bracket ensures a spacing of 160 mm between the screen profile and the gear rack for optimal functionality.

Application area: Push rod support for truss ventilation in greenhouses with trusses Material: Aluminum housing with plastic diabolo rollers Compatibility: Suitable for trusses with a strap dimension of 80 × 40 mm Special feature: Flexible mounting of diabolo rollers for 27 mm and 32 mm pipes The Roller housing 80×40 serves as a push rod support for truss ventilation in greenhouses with trusses. It is simply pushed onto the truss and enables secure guidance of the push rods. Thanks to the flexible mounting of the diabolo rollers, the housing is suitable for pipes with diameters of 27 mm and 32 mm.

Application: Mounting plate for attaching RSD 250-40 RR pinion housings to greenhouse trusses Material: Galvanized steel Dimensions: 45 × 45 × 5 mm Hole diameter: Ø 9 mm Use case: Acts as a washer or backing plate for secure bolting Ridder Article No.: 412814 The Counter-plate 45×45×5 D09 VZ is used as a backing plate when bolting Ridder RSD 250-40 RR pinion housings to greenhouse trusses. It ensures a stable and secure connection, especially in steel structures.
