aircraft cable galv. 7x7 3 mm x 500m
A durable aircraft cable for shading systems.Material: Steel Galvanized
Lead edge tube clip
This lead edge tube clip connects support wire with 19 mm aluminium tubes in shading systems.
Lead edge cable clip 19 EXT - bolt M4 x 16 excluded
This lead edge cable clip EXT ensures a strong connection of the drive cable and the 19 mm tube. The extended form of this clip allows to avoid the contact between drive cable and fabric, that can cause damage of the fabric.For mounting M 4x16 ISK bolts are needed.
Cable clamp
Is used for the attachement of 2 mm aircraft wire. Material: Steel Galvanized
Sealing bracket for 2 mm inox wire
The sealing bracket seals the screen paths in suspended and lay-flat shading systems. This piece is made of plastic, that preserves the shade cloth. The bracket gets installed at the support wire to collect the following screen wih the help of the cord. Material: plastic
aircraft cable black poly coated 1x7 1,7- 2,5mm
Our black poly coated cable is used for fastening shading screens. Its plastic coating does not damage the cloth and thus increases its durability. It can also serve as a support for polyester wire in lay flat shading system.Material: Steel with plastic coating
Wire guide u fits screenprofile
The wire guide protects the poly wire in lay-flat energy screens from friction, caused by the screen profile. In suspended systems it works as a connection between support wire and screen profile. The wire guide is installed into the screw channel and can slide sideways within it.Material: plastic
crints, oval
With these crints poly wire is attached securely to the support wire bracket universal and afterwards it gets bolted. Material: Steel, galvanized
aircraft cable INOX 7x7
A durable, stainless aircraft cable for cable drive shadings systems. Thanks to these characteristics it specially fits external constructions. It is compatible with our slip joint. Tensile strength:Material: Stainless Steel
Screen Hooks
Our screen hooks are used to fasten screens overhangs onto clip profile. The hook is equipped with a special self-locking fastener.
Truss clip, stainless steel
With this Inox truss-clip you are able to attach poly wire firmly to the truss in shading systems. The truss clips are slipped on to the truss from beside and are deliverable in different heights.Material: stainless steel
Diabolo roll 27.32
The clip profile protects cloth overhangs in shading systems in greenhouses.It is clipped directly onto the tensioned coated cable to prevent screens rubbing against the wire.Material: PVC

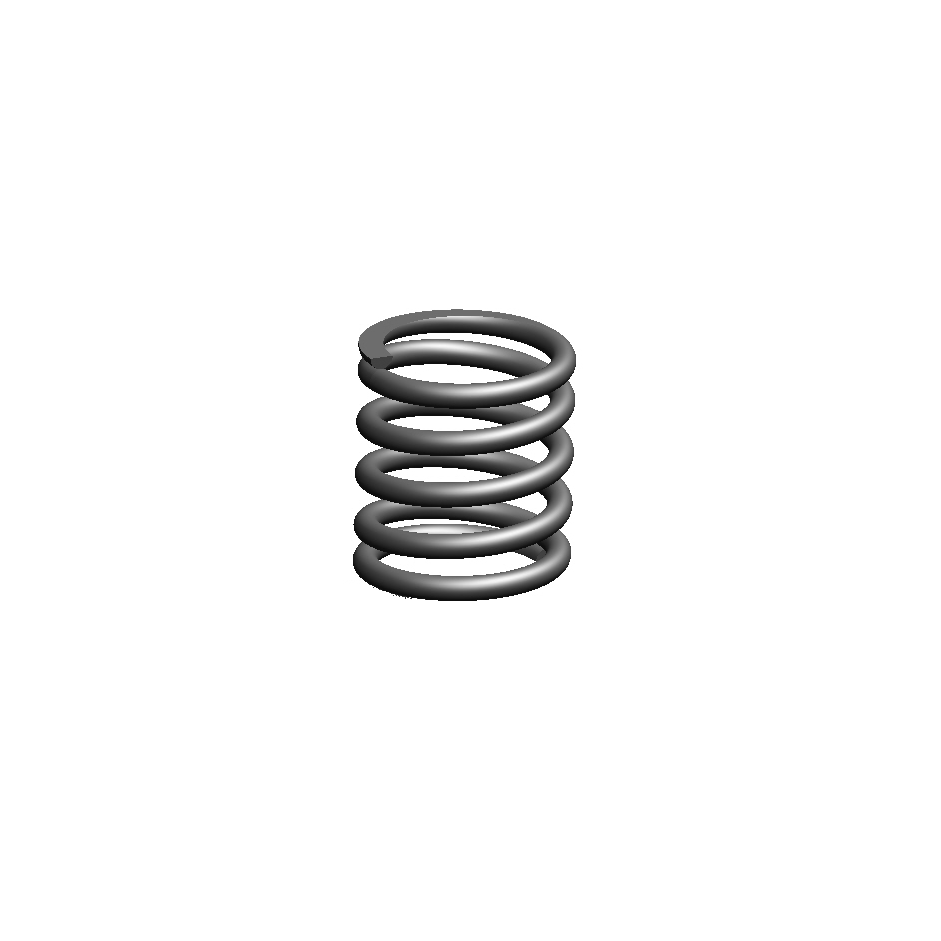

Spring for slip joint
These springs are components for our slip joint. The slip joint comes standard with a soft spring.If one soft spring is not sufficient, you can use up to two hard pieces.
Wire tigthener 50.50 with complete winding
This wire tightner enables quick and easy mounting of Inox-wire in suspended shading systems. The component was especially designed for the construction of suspended systems and therefor it offers a perfect mounting position for this function. After its attachment to the system the wire tightner is adjustable to the left and the right. Mounting requires a M 6x65 bolt. This is not delivered with the product. The wire tightner gets used in numerous additional application fields where cord and wire has to be strained.
Clip tube PVC
The clip profile protects ?loth overhangs in shading systems in greenhouses.It is clipped directly onto the tensioned coated cable to prevent screens rubbing against the wire.Material: PVC
Pulley 40 (TGU) with splint bracket
This plastic pulley has a split bracket for attachment to already strained cables. In this case the pulley functions as a guiding roller. Being turned around the pulley can be suspended with the included S-hook. In this position the pulley can divert cables. Made of high impact resistant plastic Diameter 40 mm Can be used for cables with a diameter up to 7 mm With an axel made of stainless steel Comes with a S-hook for suspending

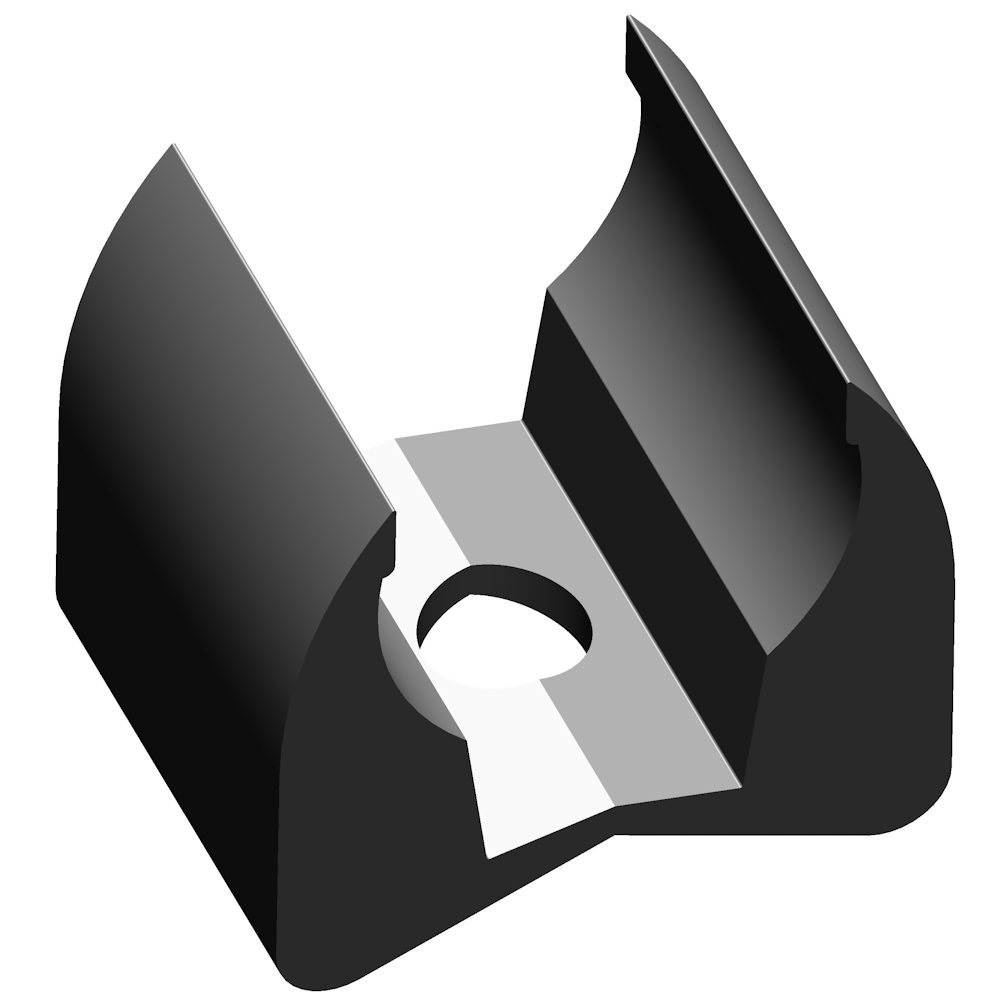

Alu-clamp /19 mm upper part
It is an element of clamp set for tubes 19 mm. In combination with the table clamp it connects push-pull tubes and aluminium tubes in push-pull drive system.Material: aluminium
Wire guide clip uni - PU = 50 pcs
Application: Fastening uplift wires to Screen Profile I–II in shading systems Material: Galvanized steel for high stability and corrosion protection Installation: Simple mounting on the screen profile for secure wire guidance Feature: Universal compatibility with various shading system designs Packaging Unit: 50 pcs Universal Wire Guide is purpose-built for securing uplift wires in greenhouse shading systems. It mounts directly onto Screen Profile I–II, ensuring stable and reliable wire alignment throughout operation. Made of galvanized steel, the guide offers long-term durability and excellent resistance to corrosion. Its universal design makes it suitable for a wide range of shading configurations, providing flexibility and ease of integration.
cross clamp 19.20 mm
The cross clamp is a part of the TGU tube mount reduction set for shading systems. It connects the 19 mm screen conducting tube with the 19 mm delay tube.
Lead edge cable clip 19 - with cloth retainer - PU = 20 pcs
Application: Connects 19 mm aluminum pipes to the drive cable in laid shading systems Material: Steel Feature: Integrated cloth retainer bracket supports fabric return movement Packaging Unit: 20 pcs Lead edge cable clip 19 – with cloth retainer is a robust steel connector used in laid shading systems for greenhouses. It enables secure fastening between 19 mm aluminum tubes and the drive cable. The integrated cloth retainer ensures reliable retraction of the shading fabric, maintaining consistent guidance and performance during system operation.
cable pulley 62.52.6 - ball bearing
Cable pulley made of high impact resistant plastic with a diameter of 57 mm for various systems with cable drive. The pulley can also be used for other purposes such as: construction and maintenance of fitness equipment, stage construction and media technique, construction of garage doors. Diameter 57 mmDustproof ball-bearing For able and wire with a maximum diameter of 4 mmComaptible with 6 mm bolts
Lead edge cable clip S 19
This lead edge cable clip S 19 ensures a firm connection of the drive cable and the 19 mm tube. For mounting M 4x16 ISK bolts are needed.
Ventilation clamp
The ventilation clamp connects the fabric guiding tubes and the push pull tubes in shading systems. In this function it works as a receptacle at the 32 mm steel tube for the parts, that push the ventilation to open it. Material: aluminium
