Application: Protects and guides cables in roll-up screen systems Segment length: 204 mm Size: 10×16 mm Material: Plastic Features: Easy to assemble/disassemble even with cable inserted Packaging unit: 100 segments The Cable track 10×16 – 204 mm is designed to protect and guide cables in greenhouse roll-up systems. It enables smooth, controlled unrolling and can be easily assembled or disassembled without removing the cable. Delivered in 100-piece packs.

Application: Mounting bracket for attaching tube motors with 10×10 mm square pin Material: Galvanized steel Mounting: Can be screwed onto the motor guide on either side Included: Supplied with matching screws Compatibility: Suitable for RB and FRM tube motors with 10 mm drive pin The Mounting bracket for tube motor – 10 mm is used to securely attach the motor to the motor guide. It accepts the 10×10 mm square pin of the motor and can be mounted on the left or right side. Delivered with screws for quick installation.

Application: Standard motor guide for RB40, RB50, and FRM50 tube motors Material: Galvanized steel Mounting: Accepts 10×10 mm square pin - includes mounting bracket Function: Moves the motor along the guide rail Packaging unit: 50 pieces The Guiding unit for tube motor RB40 / RB50 / TGU is a robust and reliable solution for guiding tube motors in greenhouse systems. It ensures smooth movement along the guide rail and is compatible with 10 mm square motor pins.

Application: Ensures straight vertical guidance of tubular motors in roll-up systems Length: 7000 mm Material: High-strength aluminum profile Compatibility: Used in combination with TGU roller carriage Mounting: For vertical installations in greenhouses The Guide rail for tube motor 7000 mm is the longest standard profile for vertical roll-up systems. It ensures smooth and accurate movement of the tube motor when paired with a roller carriage. Ideal for large-scale greenhouse installations.

Application: Horizontal shading systems in greenhouses Voltage: 230 V (120 V version also available) Torque: 50 Nm Speed: 12 rpm Mounting: Delivered with 10×10 mm square shaft adapter Tube compatibility: For 50 mm and 63 mm roll-up tubes Limit switches: Externally adjustable with Allen key The FRM50 tube motor 50-12-230 is a durable and robust drive unit for greenhouse shading systems. It offers easy installation and adjustment, and is compatible with standard motor guides and brackets.

Application: Mounting bracket for attaching energy chains to motor guides Material: Galvanized steel Mounting: Pre-punched holes for flexible installation directions Compatibility: Suitable for all standard 10×10 mm energy chains The Roll-up bracket for energy chain allows secure attachment of energy chains to the motor guide. It features pre-punched mounting holes for flexible positioning and is made of corrosion-resistant galvanized steel for long-term durability.

Application: Maintenance-free drive for roll screen systems in greenhouses and livestock buildings Material: Built into an aluminum tube with 50 mm diameter and 1.5 mm wall thickness Motor: Low-noise, single-phase, 2-pole asynchronous electric motor Limit switch: Precise electronic limit switch system with pulse counter (38 revolutions) Protection class: IP55 – high water resistance Torque: 50 Nm at 50 Hz Speed: 3.5 rpm at 50 Hz Ridder Article No.: 550032 The RB50E+ - 3.5-230/50/VK10/B50/L772 tubular motor is a powerful and maintenance-free drive unit for roll screen systems in greenhouses and livestock buildings. Thanks to its quiet operation and high water resistance, it is ideal for demanding environments. The integrated electronic limit switch system with pulse counter ensures precise control and protects the motor from overload. The IP55 protection rating allows reliable operation even in humid conditions. The motor is designed for intermittent operation and provides reliable braking performance, even under low voltage conditions.

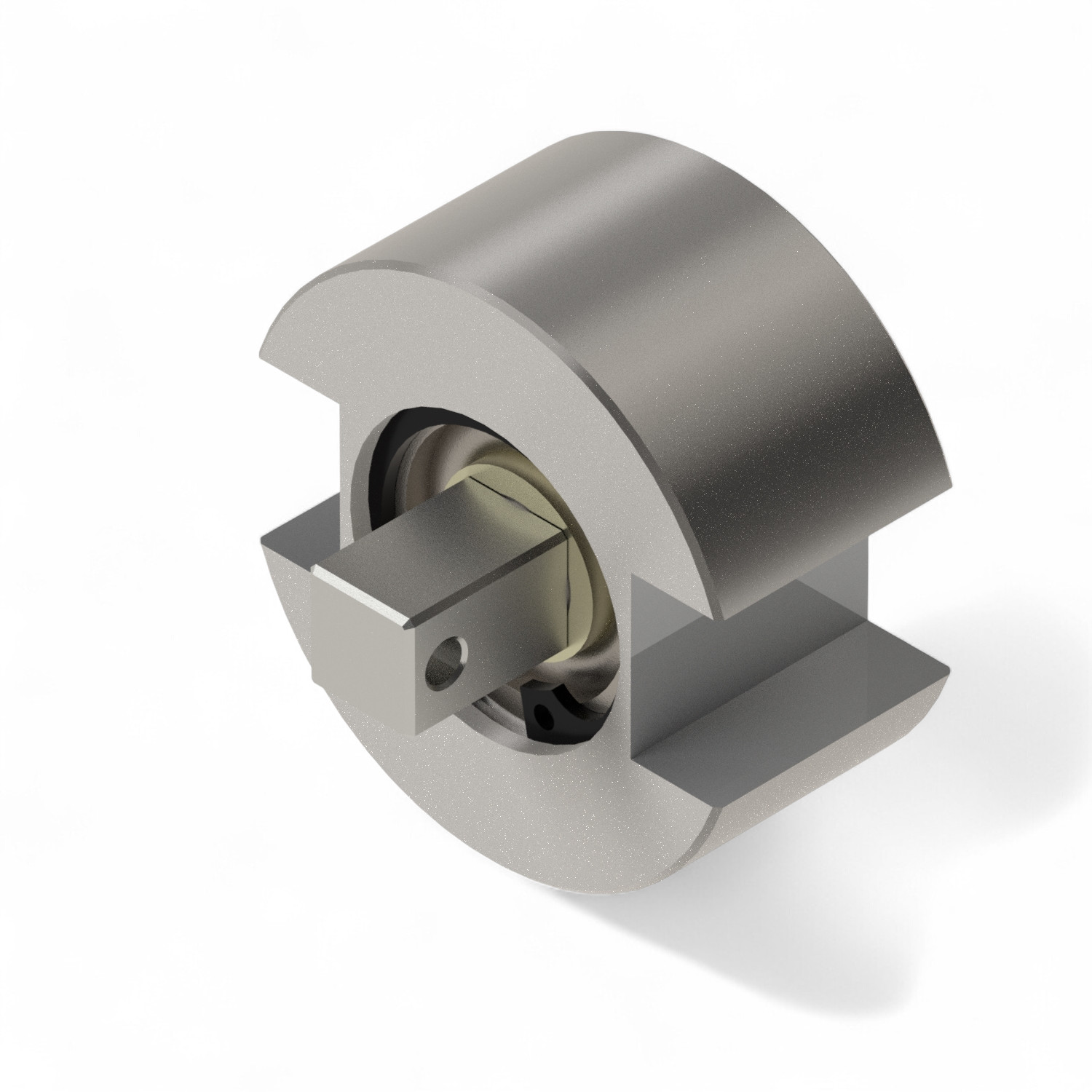

Application: Guides roll-up tubes on the side opposite the tube motor Material: Aluminum Installation: Inserted into the roll-up tube The Endguide with Bearing for Tube Motor 50 mm is a ball-bearing guide that ensures smooth and stable movement of roll-up tubes on the side opposite the motor. It is installed directly into the tube and provides long-lasting support for shading systems.

Application: For sidewall and dual roll-up screen systems in greenhouses Voltage: 230 V / 50 Hz (also available for 60 Hz) Torque: 120 Nm Speed: 11 rpm (50 Hz) / 13 rpm (60 Hz) Limit switches: Mechanical, adjustable (38 turns) Tube compatibility: For 63 mm roll-up tubes Protection class: IP44 Ridder Article No.: 550180 The RB120-11-44 tube motor is a high-torque, maintenance-free drive unit for large greenhouse shading systems. It features a sealed housing, integrated brake, and a robust planetary gearbox for long-lasting performance.

Application: Mounting bracket for attaching tube motors with 16×16 mm square pin Material: Galvanized steel Mounting: Can be screwed onto the motor guide on either side Included: Supplied with matching screws Compatibility: Suitable for RB and FRM tube motors with 16 mm drive pin The Mounting bracket for tube motor – 16 mm is used to securely attach the motor to the motor guide. It accepts the 16×16 mm square pin of the motor and can be mounted on the left or right side. Delivered with screws for quick installation.

Application: Motor guide for RB120-11/13 tube motors in vertical guide rails Material: Galvanized steel Mounting: Accepts 16×16 mm square pin - secured with cotter pin Function: Absorbs axial and rotational forces of the motor Ridder Article No.: 550505 The Guiding unit VK16 / L170 is designed for RB120 tube motors and ensures stable and precise movement within the guide rail. It is built to absorb both axial and rotational forces and is secured with a 16 mm square pin and cotter pin.

Application: Adjustment tool for setting end switches in RB50E+ and RB120E+ tube motors Compatibility: For Ridder tube motors with electronic limit switch systems Function: Enables precise configuration of motor stop positions Use case: Required during installation or recalibration of motor travel limits Ridder Art. Nr.:772001 The Adjusting switch RB50E+ / RB120E+ is used to configure the electronic end switch system in Ridder tube motors. It ensures accurate stop positions and protects the motor from overrun or overload.

Application: Drive unit for sidewall and twin-roll screen systems in greenhouses (not suitable for roof roll screens) Torque: 40 Nm Speed: 11 rpm Voltage: 230 V, single-phase, 50 Hz Power consumption: 1.1 A Tube diameter: 50 mm aluminum sleeve (standard) Limit switch: Mechanical, precisely adjustable over 38 revolutions Protection class: IP44 – sealed against water ingress from the roll tube Ridder Article No.: 550018 Special features: Maintenance-free tubular motor with integrated planetary gear and motor brake Thermal protection prevents overheating damage Virtually silent operation Suitable for intermittent operation (S3-6%, 4 min duty cycle) The RB40-11 tubular motor is a compact and powerful drive unit for roll screen systems in glass and film greenhouses. Thanks to its precise limit switch, robust construction, and quiet performance, it is ideal for medium-duty applications. The integrated 50 mm aluminum sleeve allows for space-saving installation, while the IP44 protection rating prevents moisture ingress—ensuring long-lasting and reliable operation.

Application: For horizontal shading systems in greenhouses Voltage: 230 V, 1-phase Torque: 3.5 Nm Speed: 13 rpm Limit switches: Mechanical, adjustable Compatibility: For 50 mm drive tubes Ridder Article No.: 550025 The RB50-3.5-13 tube motor is a compact and efficient drive for greenhouse shading systems. It features mechanical limit switches and is compatible with 50 mm roll-up tubes. Ideal for small to mid-sized installations.

Application: Motor guide for RB120E+ tube motors in vertical guide rails Material: Galvanized steel Mounting: Accepts flat-sided shaft - secured with motor collar Function: Absorbs axial and rotational forces of the motor Convertible: Can be reconfigured from left to right version Ridder Article No.: 550508 (L) / 550509 (R) The Guide unit for tube motors RB120E+ L is a robust and convertible motor guide for Ridder RB120E+ motors. It ensures stable movement in vertical guide rails and can be easily switched between left and right configurations.

Application: Motor guide for RB50E+ tube motors in greenhouse shading systems Position: Right-side motor mounting Material: Steel, ball-bearing mounted Mounting: Two holes for bracket attachment Features: Extended fastener fits U-profile - ensures smooth motor travel The Guiding unit RB50E+ L is a precision motor carriage for Ridder RB50E+ tube motors. Designed for left-side installations, it ensures smooth and stable movement along the guide rail. Ideal for roll-up screen systems in greenhouses.

Application: Control unit for 1-phase RB50 / RB50E+ tube motors Voltage: 115 V / 1-phase Housing: Plastic enclosure, IP55 protection class Safety: Glass fuse and adjustable runtime limiter (1–10 min) Control: Manual and remote via 24 V input (AC/DC) Interface: Terminal strip for power, motor, and control signal Indicators: LED and blinking signal for error status Ridder Article No.: 275810 The RMC50-115 V / 1-phase control unit is designed for safe and reliable operation of Ridder RB tube motors. It features manual and remote control options, integrated safety functions, and a compact IP55-rated housing.

Application: Motor guide for tube motors with 12 mm square pin Material: Galvanized steel Mounting: For use in vertical guide rails Packaging unit: 50 pieces The Guide unit for tube motor – 12 mm is designed for use with tube motors that have a 12 mm square shaft. It provides smooth and stable guidance in vertical installations and is delivered in a bulk pack of 50 units.

Application: Receiving and guiding tube motors in twin-roll screen systems Material: Steel for high stability and durability Mounting Pin: 10 × 10 mm for secure attachment Guidance: Ball-bearing mounted for smooth movement Packaging Unit: 20 pcs Motor Guide for Twin-Roll up Screen serves as a receiver for the tube motor’s mounting pin and transports it along the guide rail. The ball-bearing design ensures precise and frictionless motion. Its robust steel construction provides long-term reliability and makes it ideal for use in demanding twin-roll screen applications.

Application: Control unit for 1-phase RB50 / RB50E+ tube motors Voltage: 115 V / 1-phase Housing: Plastic enclosure, IP55 protection class Safety: Glass fuse and adjustable runtime limiter (1–10 min) Control: Manual and remote via 24 V input (AC/DC) Interface: Terminal strip for power, motor, and control signal Indicators: LED and blinking signal for error status Ridder Article No.: 275810 The RMC50-115 V / 1-phase control unit is designed for safe and reliable operation of Ridder RB tube motors. It features manual and remote control options, integrated safety functions, and a compact IP55-rated housing.

Application: Adapter for replacing older RB50E tube motors Compatibility: For RB50E motors with mechanical or electronic limit switches Adapter type: VK10 square adapter Use case: Enables easy retrofit of RB50E motors built before November 2016 Ridder Article No.: 550411 The Adapter Set RB50E+ L is used to retrofit older RB50E tube motors with mechanical or electronic limit switches. It includes the VK10 square adapter introduced in November 2016 and allows for seamless replacement of legacy motors without modifying the mounting system.

Application: Motor guide for RB50E+ tube motors in greenhouse shading systems Position: Right-side motor mounting Material: Steel, ball-bearing mounted Mounting: Two holes for bracket attachment Features: Extended fastener fits U-profile - ensures smooth motor travel The Guiding unit RB50E+ R is a precision motor carriage for Ridder RB50E+ tube motors. Designed for right-side installations, it ensures smooth and stable movement along the guide rail. Ideal for roll-up screen systems in greenhouses.

Application: Shaft support for suspended shading systems with gable drive Material: Hot-dip galvanized steel for high durability Installation: Square tubes are flanged directly onto the motor support Special feature: Simplifies installation by eliminating manual shaft alignment Compatibility: Suitable for RB 120 tube motors Scope of delivery: Bolts and nuts not included The Tube Motor Support for RB120 – 16×16 mm is designed for gable-end suspended shading systems. It allows square tubes to be mounted directly, ensuring accurate shaft positioning and reducing installation effort. The galvanized steel build offers excellent resistance to wear and environmental conditions.

Application: Reduction sleeve for adapting the inner diameter of tube motors Material: Aluminum for high stability and corrosion resistance Function: Reduces the motor’s inner diameter from 59 mm to 34 mm The Adaptor for Roll-Up Tube enables precise fitting of drive shafts to tubular motors by reducing the motor’s inner diameter from 59 mm to 34 mm. Made of high-quality aluminum, it offers a durable and stable solution for integrating tubular motors into greenhouse systems.
