Cable Pulleys

Application: Universal use in wire rope drives, stage construction, media systems, and fitness equipment Material: Impact-resistant plastic for high load capacity Diameter: 63 mm Bearing: Precision deep-groove ball bearing with dust protection Wire Diameter: Suitable for ropes up to 4 mm Axle Compatibility: Fits 6 mm axle bolts Pulley 62.52.6 is a highly versatile component made from durable plastic with a 63 mm outer diameter. It’s an ideal choice for various drive applications—from stage mechanics to fitness equipment and technical setups. Its sealed precision ball bearing ensures smooth, long-lasting operation. Designed for ropes up to 4 mm in diameter and compatible with 6 mm axle bolts.

Application area: Universally applicable pulley for shading systems and other uses Material: Impact-resistant plastic Diameter: 100 mm Maximum load capacity: 100 kg Ball bearing: Double ball-bearing with spacer ring Rope diameter: Suitable for ropes up to Ø 20 mm Bolt compatibility: Fits 10 mm bolts The Pulley 100 mm is made of impact-resistant plastic and is suitable for a variety of applications, including shading systems, stage construction, media technology, and garage door mechanisms. Thanks to its double ball-bearing design with spacer ring, it offers excellent stability and smooth rope guidance.

Thanks to two ball bearings, the 100 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The integrated spacers make it particularly easy to mount the pulley. No spacers or washers are needed.Impact resistant pulleyTwo ball bearings with integrated spacersLoad capacity: up to 350 kgMade in GermanyOuter diameter: 100 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 9 mm

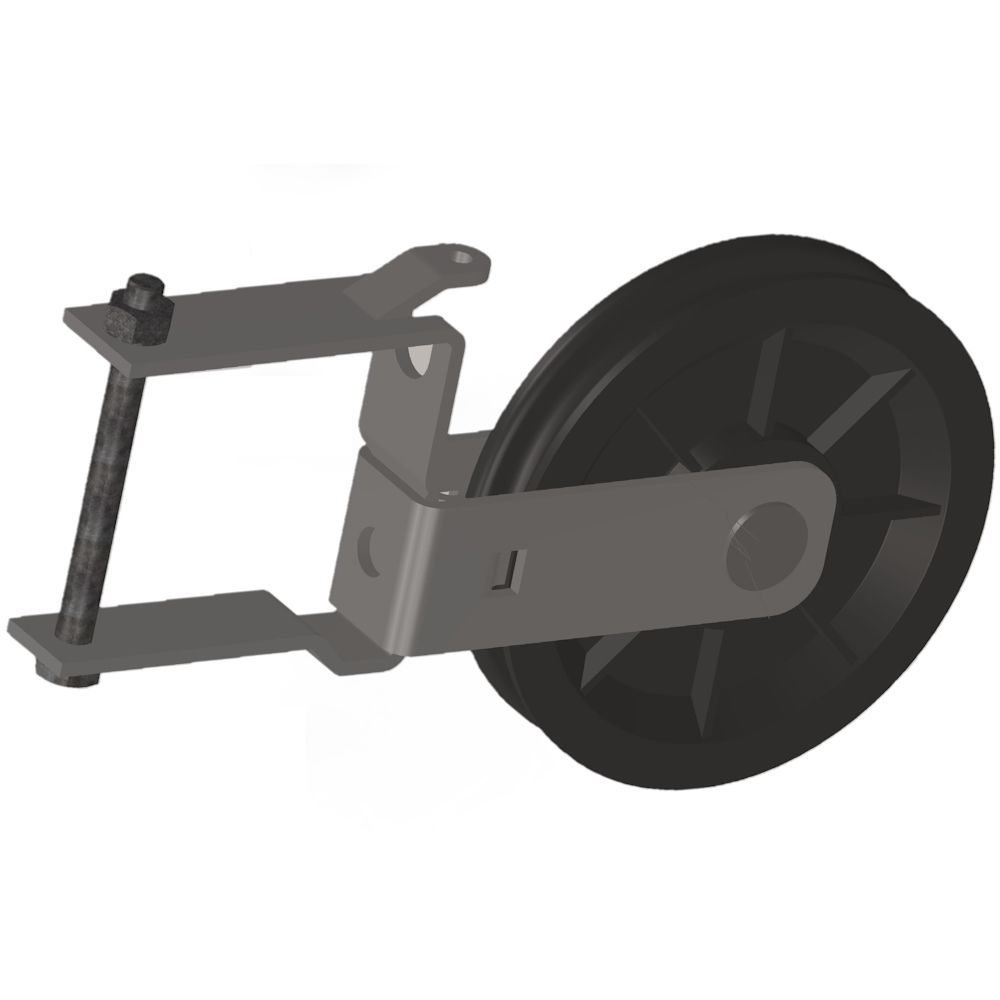

Application: Bolt-on cable pulley for square tubes in shading and ventilation systems Material: Pulley made from impact-resistant plastic - bracket made from zinc-plated steel Compatibility: Fits square tubes sized 50 x 50, 50 x 55, 50 x 30, 50 x 25, 50 x 20 mm Wire Diameter: Suitable for wire ropes up to 3 mm Installation: Mounted using M6 x 65 bolt and M6 nut Cable Pulley 90 with clamp 50.50 is a robust and reliable solution for cable guidance in greenhouse shading and ventilation systems. It is bolted directly onto square tubing and aligns precisely with the wire rope for smooth operation. The pulley is crafted from durable, impact-resistant plastic, while the bracket is made of zinc-plated steel, providing excellent strength and corrosion protection in greenhouse environments.

The 100 mm pulley can be mounted on the rear side of square tubes in the shading system.Its axle position can be adjusted to one of three different heights using the three holes in the steel bracket.The 100 mm UF pulley is pre-mounted in such a way that it can be used for both under and front mounting.The 100 mm H pulley is pre-mounted for rear mounting.It is possible to re-mount the pulley afterwards.Suitable for wire ropes up to 3 mm in diameter. Fits the following square tubes:50 x 50, 50 x 55, 50 x 30, 50 x 25, 50 x 20.Material: Pulley: impact-resistant plasticBracket: galvanized steel

Thanks to two ball bearings, the 75 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access. Impact resistant pulleyGalvanised steel bracketTwo ball bearingsLoad capacity: up to 350 kgMade in GermanyOuter diameter: 75 mmTotal height: 100,75 mmTotal width: 20 mmRope diameter: up to Ø 8 mmFastening with M8 screw / bolt

Thanks to two ball bearings, the 90 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access. Impact resistant pulleyGalvanised steel bracketTwo ball bearingsLoad capacity: up to 350 kgMade in GermanyOuter diameter: 90 mmTotal height: 115,75 mmTotal width: 41 mmRope diameter: up to Ø 8 mmFastening with M8 srew / bolt

Durch zwei verbaute Kugellager ist die 100 mm Umlenkrolle besonders sicher auf der Achse geführt und hat eine hohe Stabilität bei Scherlasten.Der Haltebügel aus verzinktem Stahl lässt sich mit einer M8- Schraube an Ihrer Konstruktion befestigen. Der Haltebügel lässt sich auch von der Umlenkrolle lösen um auch in schwer zugänglichen Einbausituationen eine möglichst einfache Montage zu ermöglichen. Schlagfeste UmlenkrolleHaltebügel aus verzinktem Stahlzwei KugellagerTraglast: bis zu 350 kgMade in GermanyAußendurchmesser: 100 mmGesamthöhe: 125,75 mmGesamtbreite: 20 mmSeildurchmesser: bis Ø 9 mmBefestigung mit M8-Schraube

Application area: Shading systems with wire rope drive Material: Pulley made of impact-resistant plastic, bracket made of galvanized steel Diameter: 90 mm Installation: Screw-mounted to square pipes Compatibility: Suitable for square pipes 50 × 50, 50 × 55, 50 × 30, 50 × 25, 50 × 20 Special feature: Axle position adjustable in three heights The Pulley 90 UF with universal bracket is a versatile solution for shading systems with wire rope drive. It can be mounted to square pipes and allows flexible axle positioning in three height levels. The pulley is made of impact-resistant plastic, while the bracket is constructed from galvanized steel to ensure high stability and corrosion resistance. It is compatible with various square pipe sizes and suitable for wire ropes up to 8 mm in diameter. The 90 mm UF pulley is pre-mounted for both bottom and front installation, whereas the 90 mm H pulley is specifically designed for rear mounting. The pulley can be re-mounted later, allowing flexible adaptation to different applications.

Thanks to two ball bearings, the 52 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The integrated spacers make it particularly easy to mount the pulley. No spacers or washers are needed.Impact resistant pulleyTwo ball bearings with integrated spacersLoad capacity: up to 180 kgMade in GermanyOuter diameter: 52 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 8 mm

This 100 mm pulley is bolted to a clamp. If needed, the pulley can be reclamped and removed or replaced. Material: Pulley: high impact resistant plasticClamp: Galvanized steel

Impact-resistant plastic cable pulley, diameter 140 mmMaximum load: 150 kg2 plain bearing insertsFor rope diameters up to Ø 4 mmCompatible with 10 mm boltsMade in Germany

Due to the extra wide plain bearing, the 52 mm pulley is guided particularly safely on the axle and has a high stability under shear loads.Together with the plain bearing, the pulley is made of 100 % plastic and is therefore completely protected against corrosion and other environmental influences.Impact resistant pulleyPlain bearing insertsLoad capacity: up to 150 kgMade in GermanyOuter diameter: 52 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 4 mm

All-purpose 100 mm pulley made of high impact resistant plastic. The pulley can be used in shading systems as well as in several other application areas. Some of them are: construction and maintenance of fitness equipment, stage construction and media technique, construction of garage doors. Diameter 100 mmMaximum loading capacity: 170 Kg Double ball bearing with spacer ring For cord and wire with a maximum diameter of 4 mmCompatible with 10 mm bolts

Thanks to two ball bearings, the 52 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The galvanised steel bracket can be attached to your construction with an M8 screw. The retaining bracket can also be detached from the pulley to make installation as easy as possible, even in installation situations that are difficult to access. Impact resistant pulleyGalvanised steel bracketTwo ball bearingsLoad capacity: up to 180 kgMade in GermanyOuter diameter: 52 mmTotal height: 77,75 mmTotal width: 41 mmRope diameter: up to Ø 4 mmFastening with M8 srew / bolt

Application area: Screw-mounted pulley for square pipes in shading systems Material: Pulley made of impact-resistant plastic, bracket made of galvanized steel Compatibility: Suitable for square pipes measuring 60 × 60 mm Rope diameter: Suitable for wire ropes up to 3 mm in diameter Installation: Pre-mounted for rear installation - front or bottom installation possible by adjusting axle position Axle positioning: Pulley can be positioned at three different heights using the bracket’s three mounting holes The Pulley 100 H with universal bracket 60 × 60 is a robust and durable solution for shading systems. It is screw-mounted directly onto square pipes and is pre-configured for rear installation. By adjusting the axle position, it can also be used for front or bottom mounting. Thanks to the combination of impact-resistant plastic for the pulley and galvanized steel for the bracket, it offers high stability and corrosion resistance.

Due to the extra wide plain bearing, the 75 mm pulley is guided particularly safely on the axle and has a high stability under shear loads.Together with the plain bearing, the pulley is made of 100 % plastic and is therefore completely protected against corrosion and other environmental influences.Impact resistant pulleyPlain bearing insertsLoad capacity: up to 150 kgMade in GermanyOuter diameter: 75 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 8 mm

Application area: Construction of cable systems for various applications, especially in greenhouse and livestock installations Material: Corrosion-resistant design with plain bearing Rope diameter: Suitable for wires and ropes up to Ø 7 mm Load capacity: Maximum load of 100 kg The Pulley 90 mm – plain-bearing is ideal for constructing cable systems across a range of applications. It is particularly well-suited for use in greenhouses and livestock facilities. Thanks to its plain-bearing design, the pulley is corrosion-resistant and ensures reliable guidance of wires and ropes up to 7 mm in diameter. With a maximum load capacity of 100 kg, it is also suitable for demanding applications.

Application area: Guiding and redirecting wire ropes in shading systems Material: Pulley made of impact-resistant plastic, bracket made of galvanized steel Rope diameter: Suitable for wire ropes up to 3 mm Installation: Screw-on mounting on square tubes (55 × 34 mm) Special feature: Precise mounting position through centered rope tension The Pulley 90 with bracket 55.34 is a reliable solution for guiding and redirecting wire ropes in shading systems. Its combination of impact-resistant plastic and galvanized steel ensures high stability and durability. Thanks to its thoughtful design, the wire rope is automatically centered by the tension, ensuring a precise mounting position. The pulley is suitable for wire ropes up to 3 mm in diameter and can be screwed directly onto square tubes measuring 55 × 34 mm. Mounting requires an M6 × 65 screw and an M6 nut, which must be ordered separately. Note: Screws and nuts for mounting are not included in the delivery.

Due to the extra wide plain bearing, the 90 mm pulley is guided particularly safely on the axle and has a high stability under shear loads.Together with the plain bearing, the pulley is made of 100 % plastic and is therefore completely protected against corrosion and other environmental influences.Impact resistant pulleyPlain bearing insertsLoad capacity: up to 150 kgMade in GermanyOuter diameter: 90 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 8 mm

Application: Dual cable routing in livestock construction Material: Stainless steel bracket for superior corrosion protection Diameter: 90 mm Bearing: Plain bearing (no ball bearings) Wire Diameter: Suitable for ropes up to 7 mm Double Pulley 90 mm with Plain Bearings is tailored for use in agricultural livestock systems. The stainless steel bracket ensures excellent corrosion resistance, even in demanding barn environments. Equipped with two separate plain-bearing pulleys—intentionally designed without ball bearings—to reduce corrosion sensitivity. A long-lasting solution for reliable cable control where conditions are harsh and continuity is key.

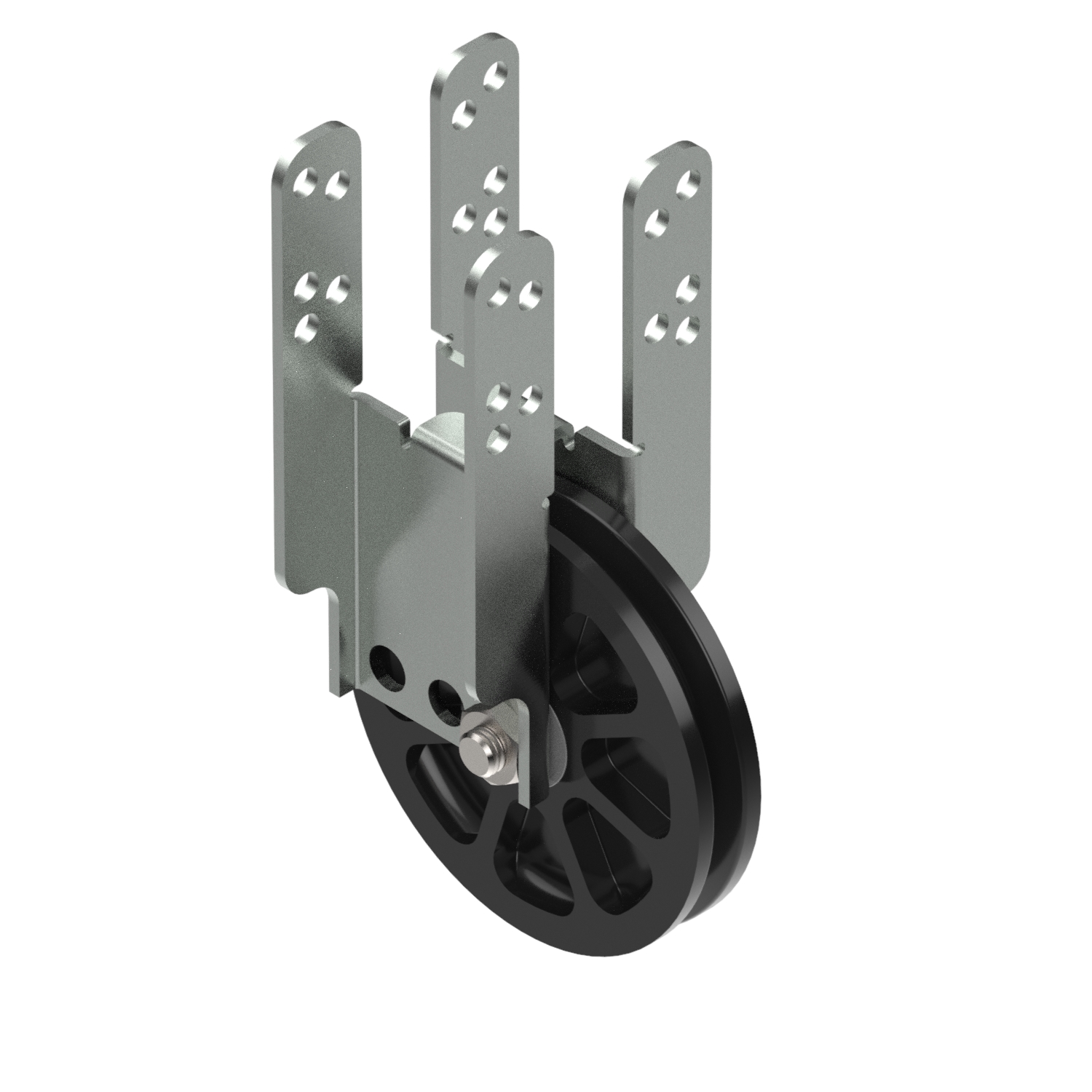

Application area: Mounted on the underside of square tubes in shading systems Material: Pulley made of impact-resistant plastic, bracket made of galvanized steel Diameter: 100 mm Suitable for: Wire ropes up to 3 mm in diameter Compatible square tubes: 50 × 50, 50 × 55, 50 × 30, 50 × 25, 50 × 20 mm Special feature: Axle position adjustable in three height levels The Pulley 100 for underside mounting 50.50 is specifically designed for attachment to square tubes in shading systems. It allows flexible axle positioning via three mounting holes in the steel bracket and is suitable for wire ropes up to 3 mm in diameter. Thanks to its high-quality materials—impact-resistant plastic for the pulley and galvanized steel for the bracket—it offers excellent stability and durability.

Thanks to two ball bearings, the 90 mm pulley is guided particularly securely on the axle and has a high level of stability under shear loads.The integrated spacers make it particularly easy to mount the pulley. No spacers or washers are needed.Impact resistant pulleyTwo ball bearings with integrated spacersLoad capacity: up to 350 kgMade in GermanyOuter diameter: 90 mmcompatible with 10 mm boltTotal width: 20 mmRope diameter: up to Ø 8 mm

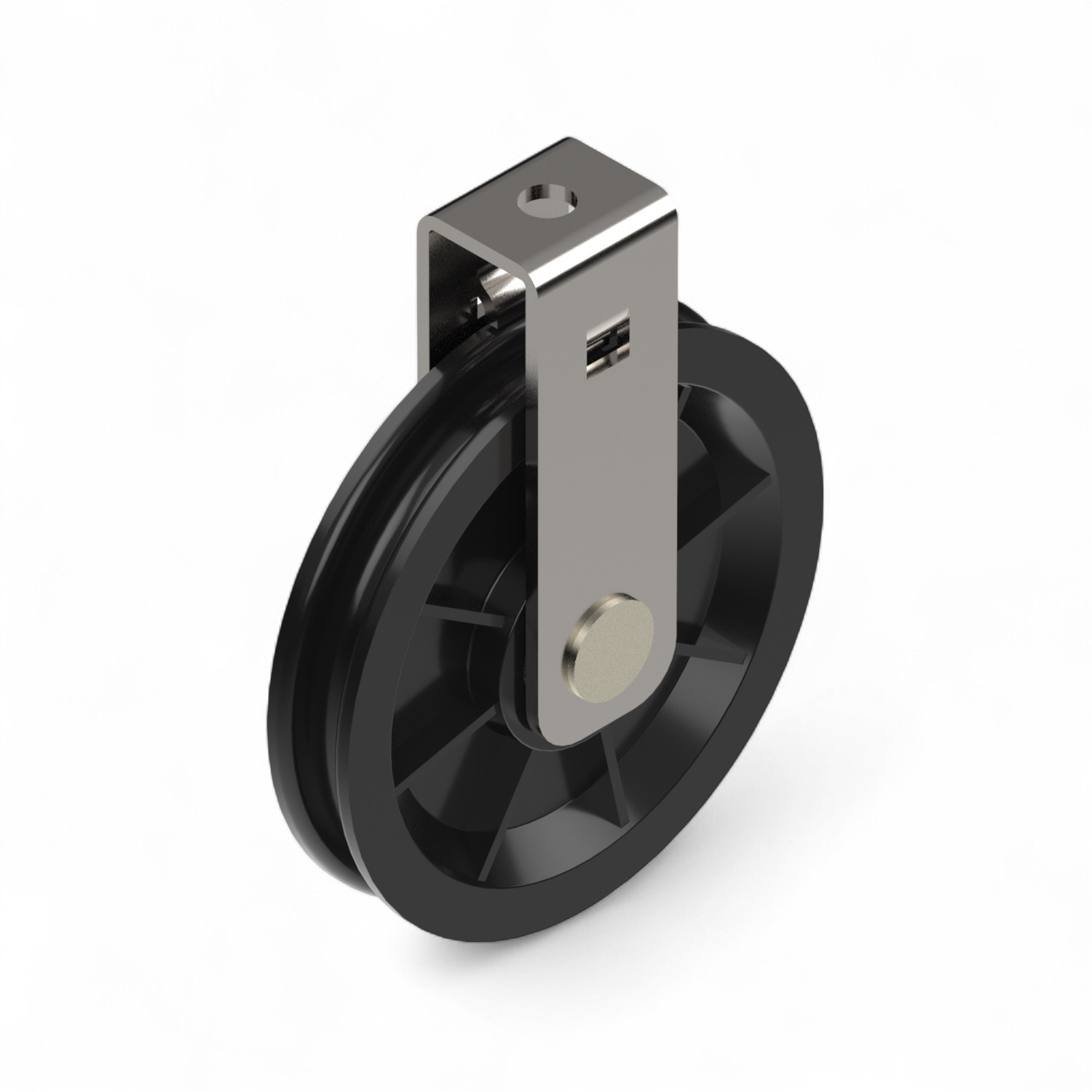

Product: Pulley 90 with bracket Diameter: 90 mm Design: Ball-bearing mounted, permanently riveted Pulley material: Impact-resistant plastic Bracket material: Galvanized steel Application area: Wire rope drives in shading systems Advantages: Precise bearing, durable, low maintenance The Pulley 90 with bracket is specifically designed for use in horizontal shading systems. Its ball-bearing design ensures smooth and consistent rope movement. The pulley is permanently riveted into the bracket, guaranteeing precise axle alignment. If needed, the rivet can be drilled out and replaced with an M6 screw and nut—ideal for maintenance and replacement. The combination of impact-resistant plastic and galvanized steel provides long service life even under demanding conditions.
