Cable pulley with clamp 2.2 - PU 25 pcs
Login for price display
not in stock
request possible - price changes possible
Product number: 04050050
This item cannot be ordered directly because it is not in stock or the shipping costs have to be determined individually. However, we will be happy to provide you with an offer for this.
Product information "Cable pulley with clamp 2.2 - PU 25 pcs"

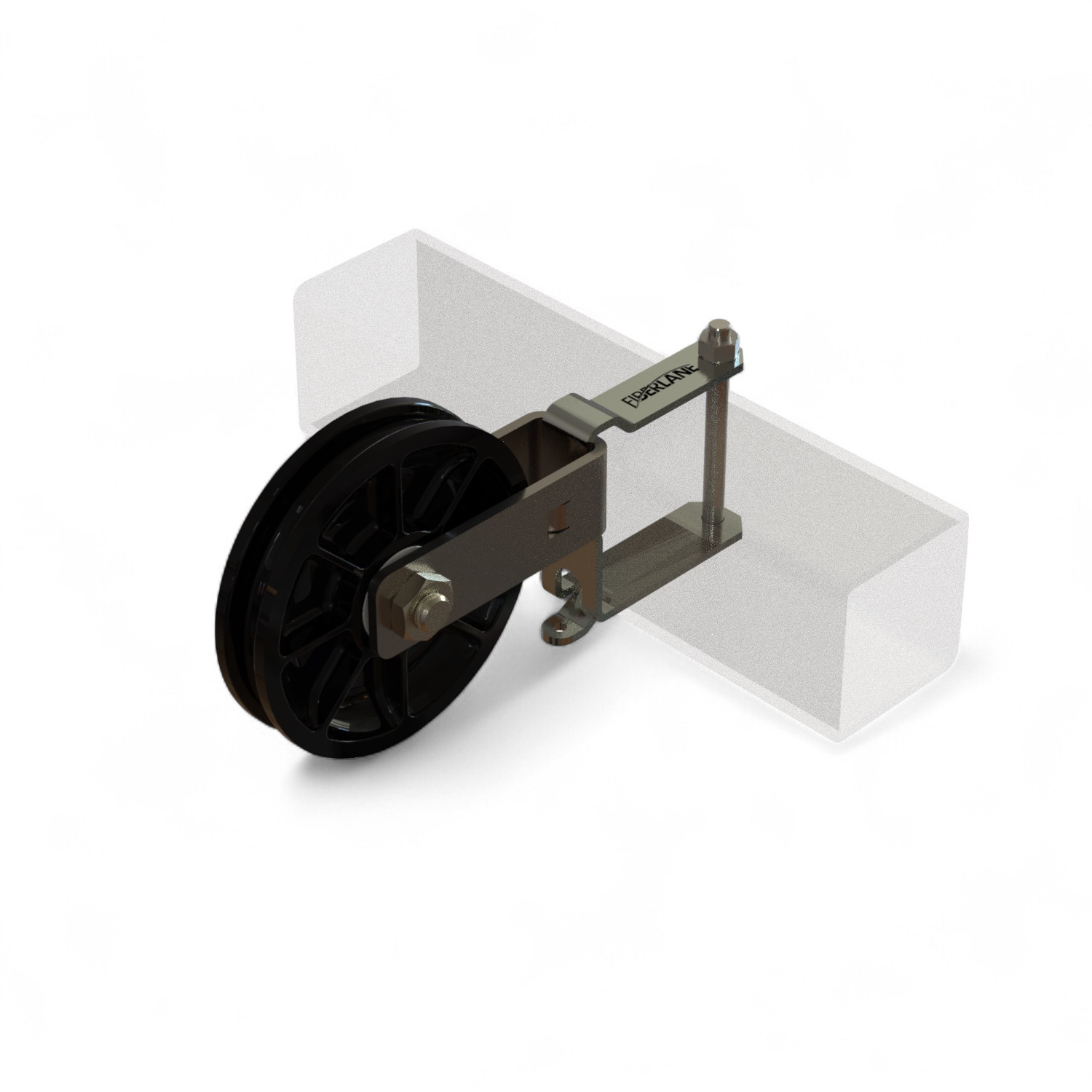

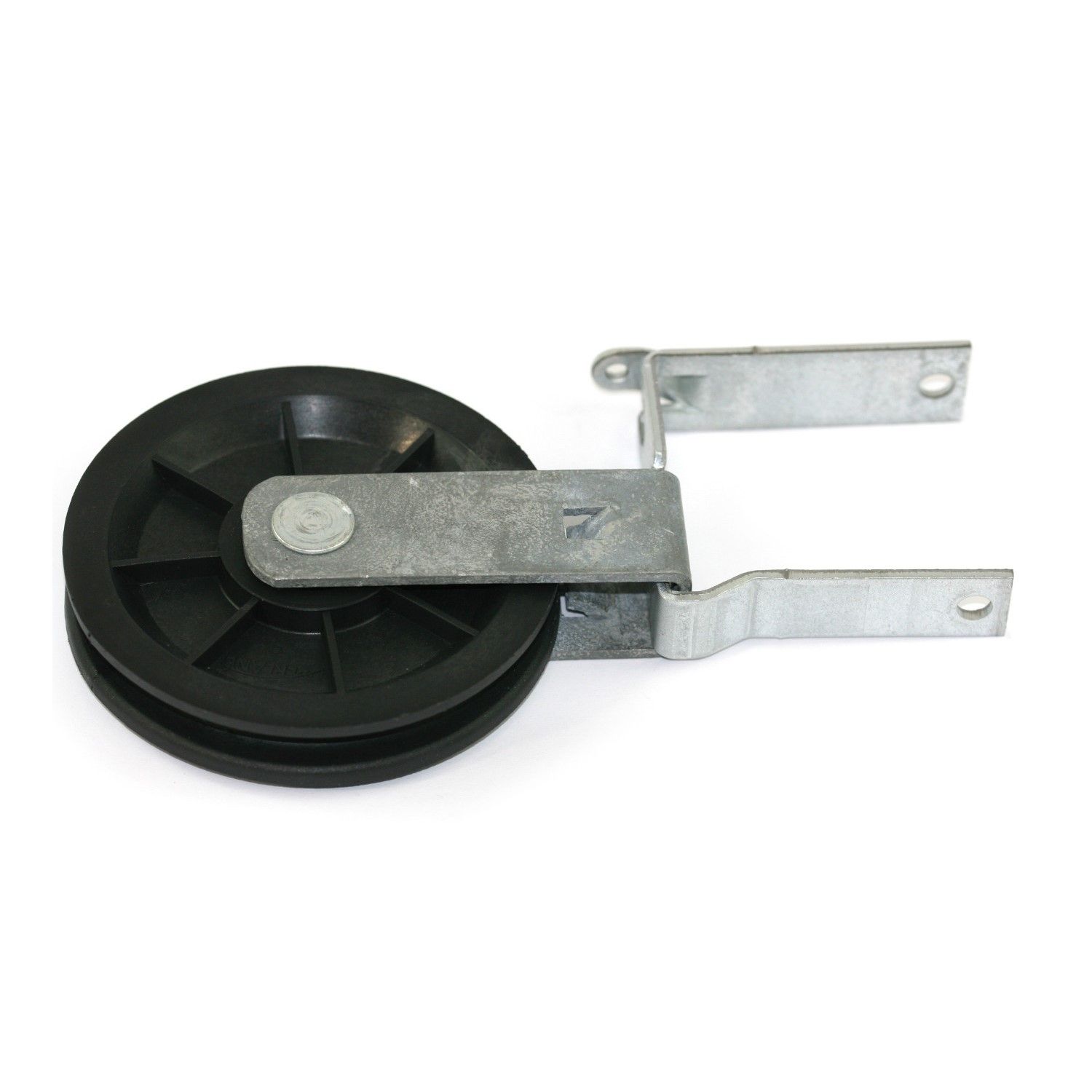

This 90 mm pulley with clamp can be attached to square tubes. Due to cable tension a centred mounting position is ensured.
The pulley can be used for cables with a diameter up to 3 mm.
Suits the following square tubes: 50 x 50, 50 x 55, 50 x 30, 50 x 25, 50 x 20 mm
Material:
Pulley: high impact resistant plastic
Clamp: Galvanized steel
For screwing you will need:
- M 6 x 65 bolt
- M 6 nut
The pulley can be used for cables with a diameter up to 3 mm.
Suits the following square tubes: 50 x 50, 50 x 55, 50 x 30, 50 x 25, 50 x 20 mm
Material:
Pulley: high impact resistant plastic
Clamp: Galvanized steel
For screwing you will need:
- M 6 x 65 bolt
- M 6 nut
Einbauweise bei einer aufgehängten Schattierung
